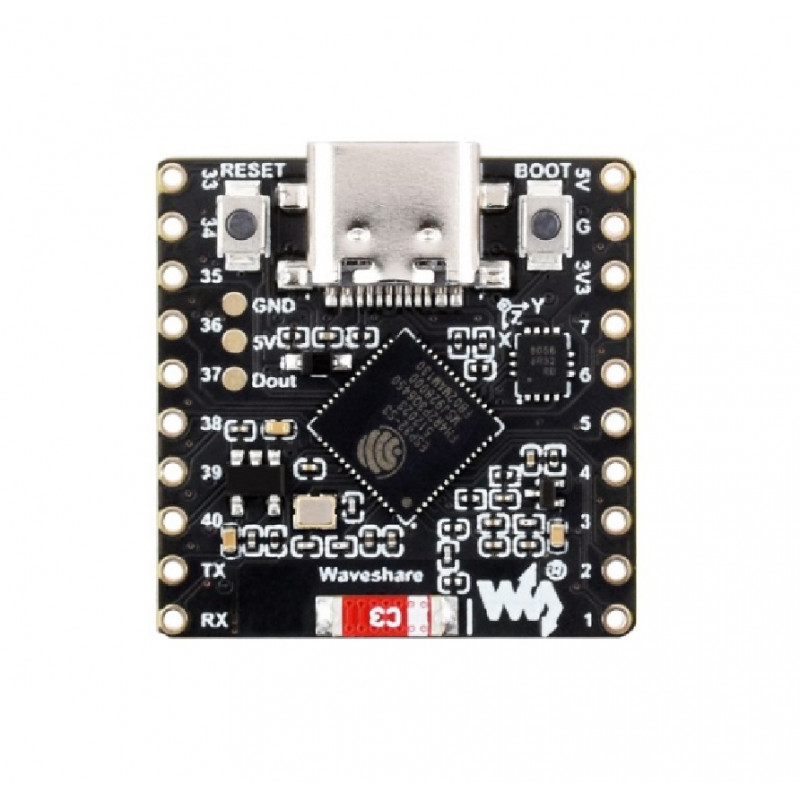

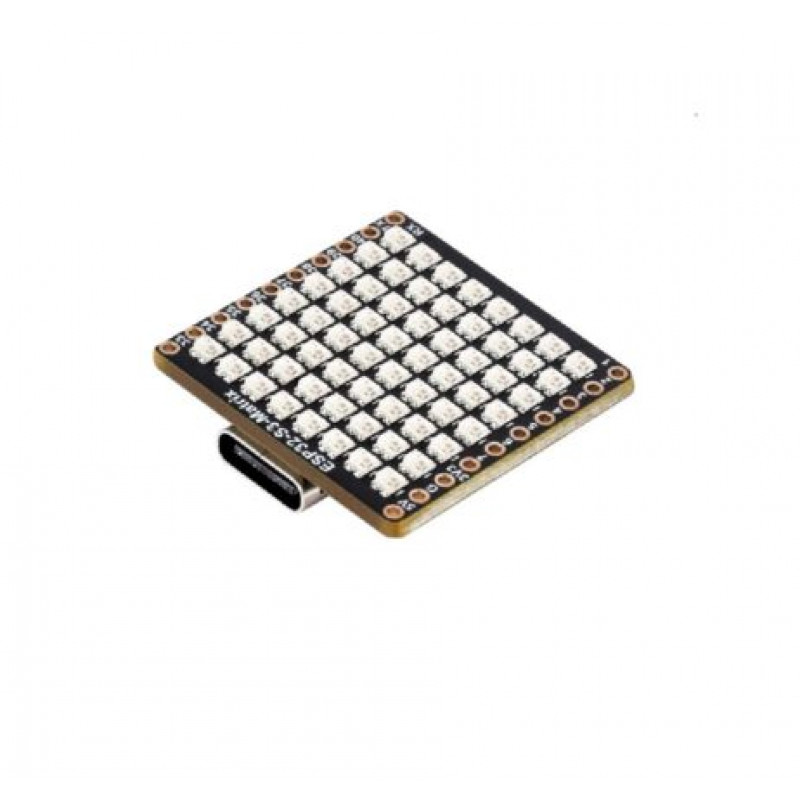

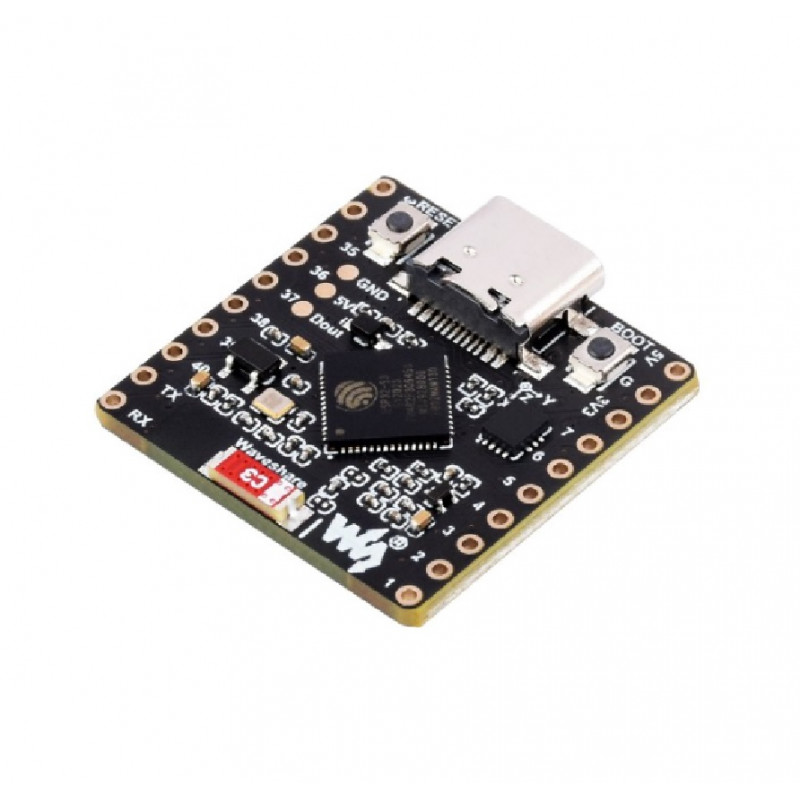

ESP32-S3-Matrix is a compact microcontroller development board with multiple digital interfaces, such as 20x GPIO pin headers, and onboard 8*8 RGB LED matrix, which can be used for displaying cool RGB LED effects or simple images.
In terms of hardware, it adopts ESP32-S3 as the main chip, integrates high-performance Xtensa 32-bit LX7 dual-core processor, low-power co-processor, WiFi, Bluetooth, RF module, and other peripheral interfaces, enabling it to be compatible with other devices, and is easy to use.
In addition, it supports development on Arduino IDE, and you can easily get started with it and apply it to your projects.
Features and Specifications:
- Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash memory
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
- Type-C connector, easier to use
- Onboard QMI8658C attitude sensor

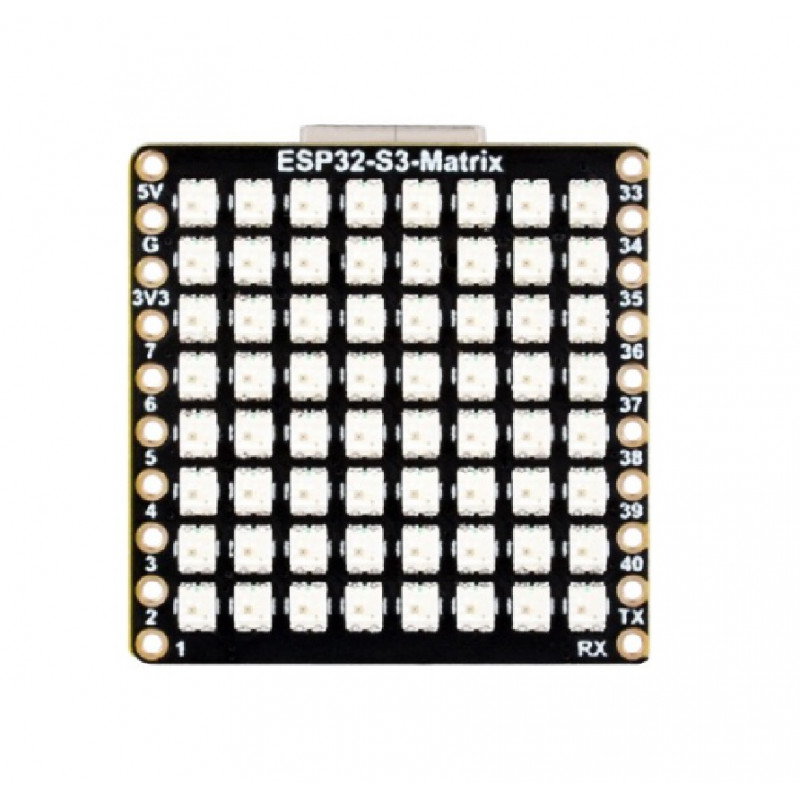

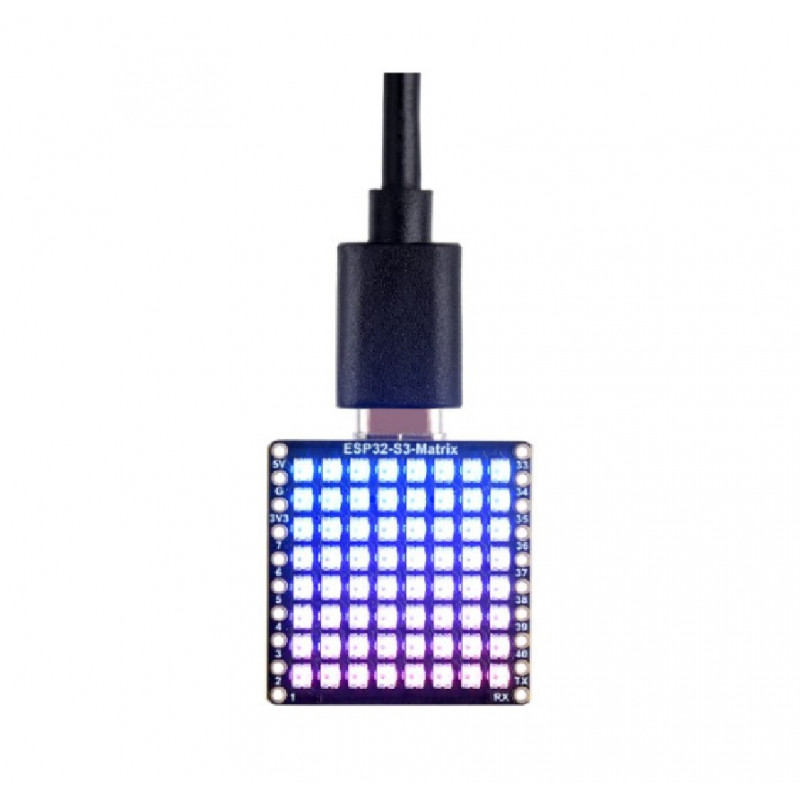

- Onboard 8 8 RGB LED matrix for colorful lighting display
- Adapting Dout pin for extending RGB matrix
- 17 multi-function GPIO pins
- Rich peripheral interfaces for achieving various functions flexibly
- Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
Package Includes:
1 x ESP32-S3-Matrix
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare ESP32-S3 Development Board, Onboard 88 RGB LED Matrix and QMI8658C Attitude Sensor, Supports Wi-Fi and Bluetooth LE, ESP32 Development Board
- Product Code: EC-26671
- Availability: 4
-
Rs.917.00
- (Excluding 18% GST)
