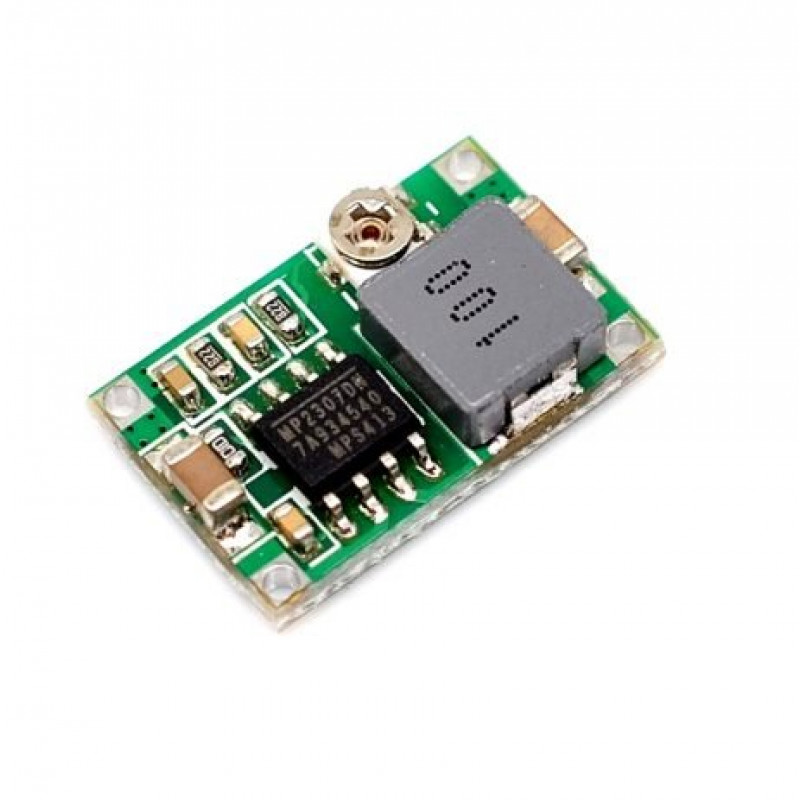

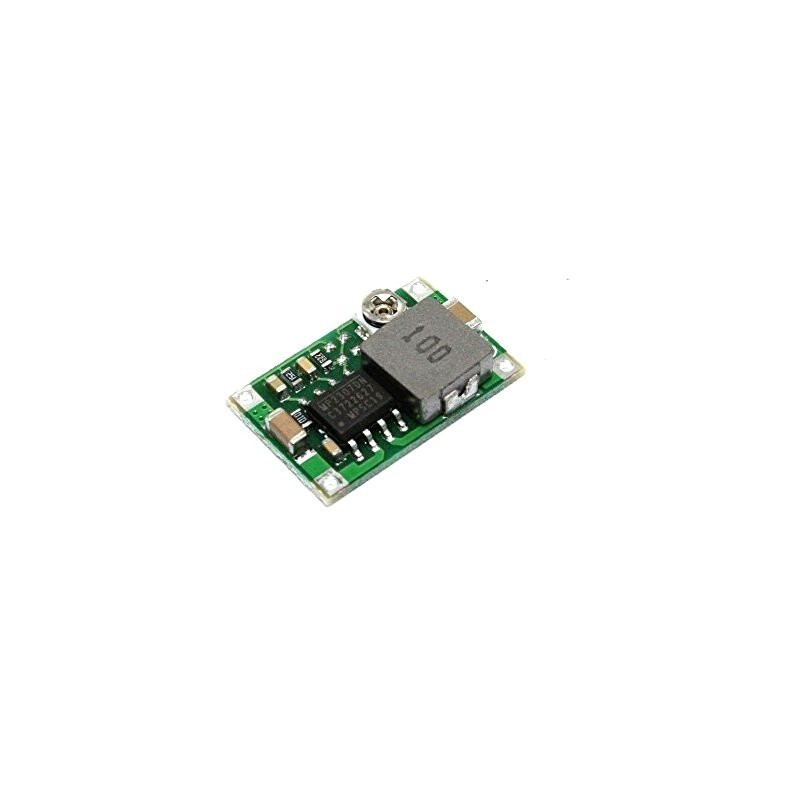

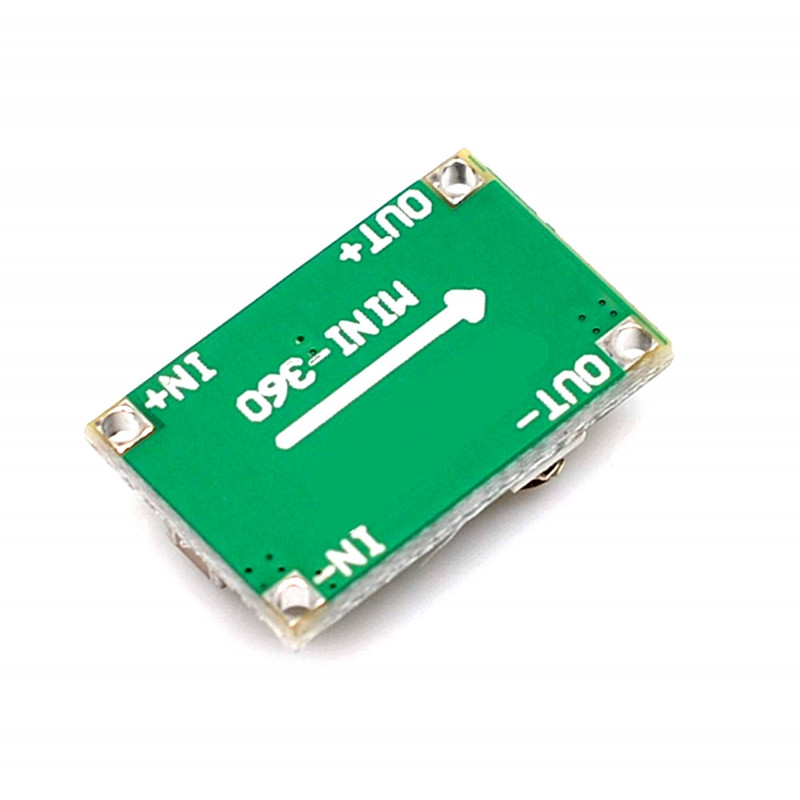

Mini 360 Step-Down Buck Converter Power Module use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient. This Module can be use as a DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply, various right size and weight for demanding applications (such as aviation models, etc.
Features:

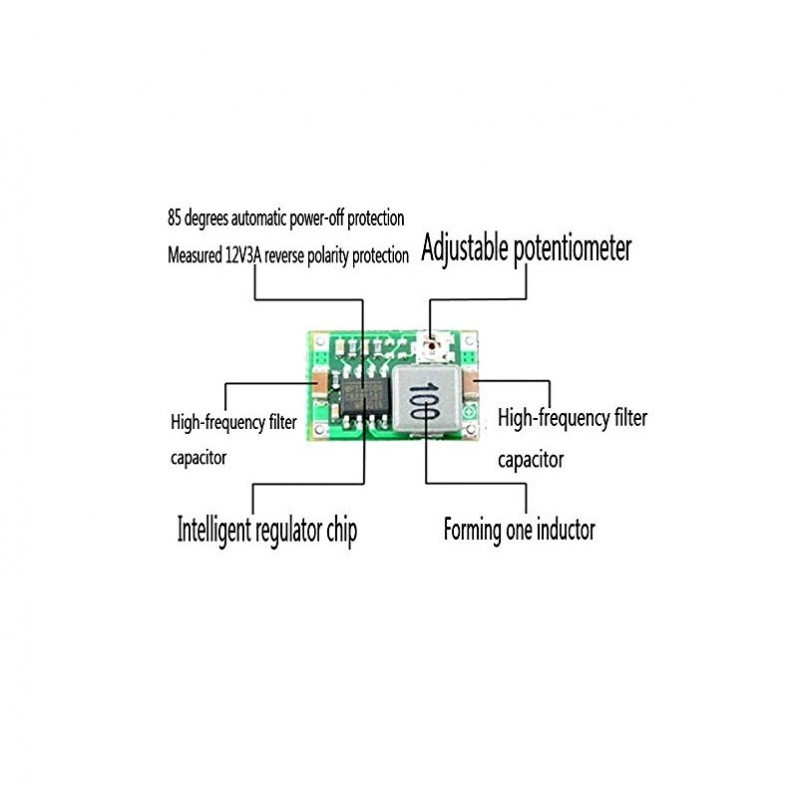

- Module: Non-isolated step-down module (BUCK)
- Rectification: Synchronous rectification
- Built-in 160C thermal shutdown
- Output ripple: 30mV (no-load)
Package Includes:
1 x Mini 360 Step-Down Buck Converter Power Supply Module
Specifications:
| Regulator IC | MPS MP2307DN |
| Input Voltage Range | 4.75 23VDC |
| Selectable Output Voltage | 1.0 17VDC |
| Rated Current | 1.8A Continuous |
| Maximum conversion efficiency | 95% (5Vin, 3.3Vout ~200mA output) |
| Switching Frequency | 340kHz |
| No-load output Ripple | 30mV |
| Load Regulation | ±0.5% |
| Voltage Regulation | ±2.5% |
| Operational Temperature Range(°C) | -40 to +85 |

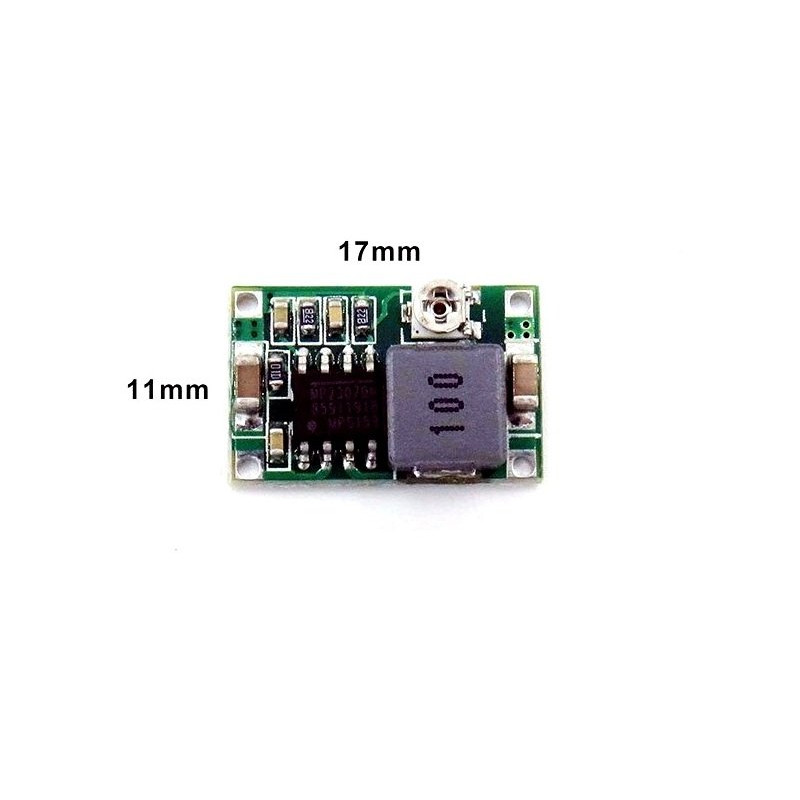

| Length (mm) | 17 |
| Width (mm) | 11 |
| Height (mm) | 3.8 |
| Weight (gm) | 2 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 49.56 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
