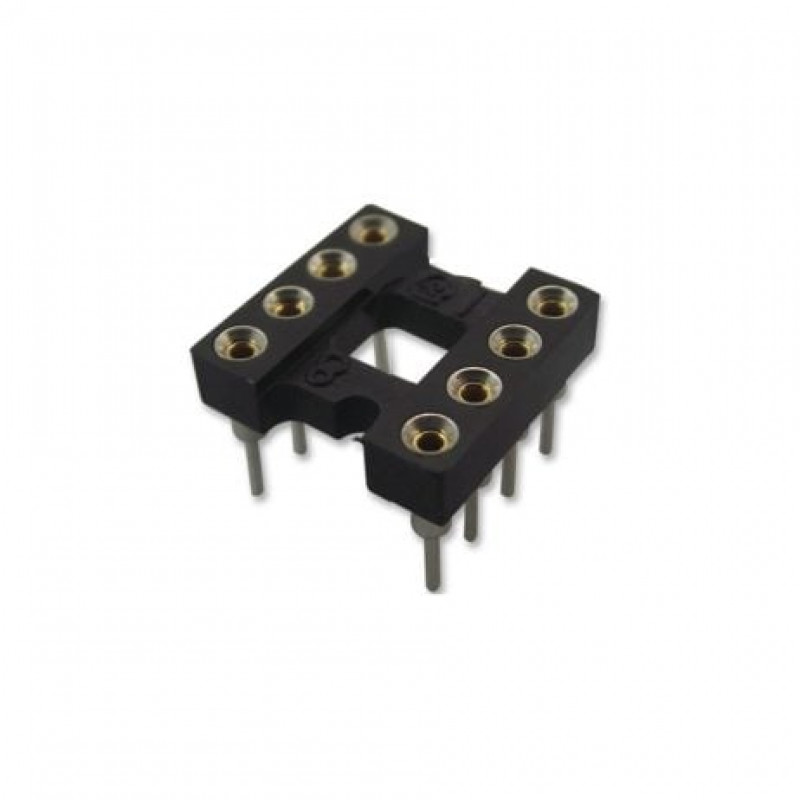

The 08-3518-10 is an 8-contact black Open Frame Socket with collet contacts, and surface mount pins. This 518 series socket with gold-plated beryllium copper contact, UL94V-0 glass-filled 4/6 nylon body. An open frame allows for more efficient utilization of board space and better cooling.
Features:
- 3A Contact current rating
- Compatible with automatic insertion equipment
- Side-to-side and end-to-end stackable
Specifications:
- No. of Contacts: 8Contacts
- Connector Type: DIP Socket
- Pitch Spacing: 2.54mm
- Product Range: 518
- Row Pitch: 7.62mm
- Contact Material: Beryllium Copper
- Contact Plating: Gold Plated Contacts
Package Includes:
1 x 08-3518-10-SOCKET, DIP, 8WAY
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
08-3518-10-SOCKET, DIP, 8WAY
- Product Code: EC-21655
- Availability: 540
-
Rs.70.00
- (Excluding 18% GST)
