The female SMA has a central receptacle and an outer casing with external threads. The SMA connector (Sub-Miniature Version A) is a semi-precision RF coaxial connector with a screwing coupling feature. The female connector has a threaded barrel with a density of 36 threads per inch. The male connector has a hex nut that fits securely around the female barrel for tight coupling. This coupling is fairly secure and has outstanding mechanical durability. Connectors are made out of stainless steel or brass, and coated with nickel or gold around the contacts.
Standard SMA and RP-SMA connectors are not compatible. This reversing is done on some equipment where there is a danger that the user might damage the connectors while coupling due to their position or repeated mating.
Features:
- High quality
- Type: Extension cord
- Connector A: SMA Female
- Another end is empty, peeling, separate shield and tin on
Package Includes:

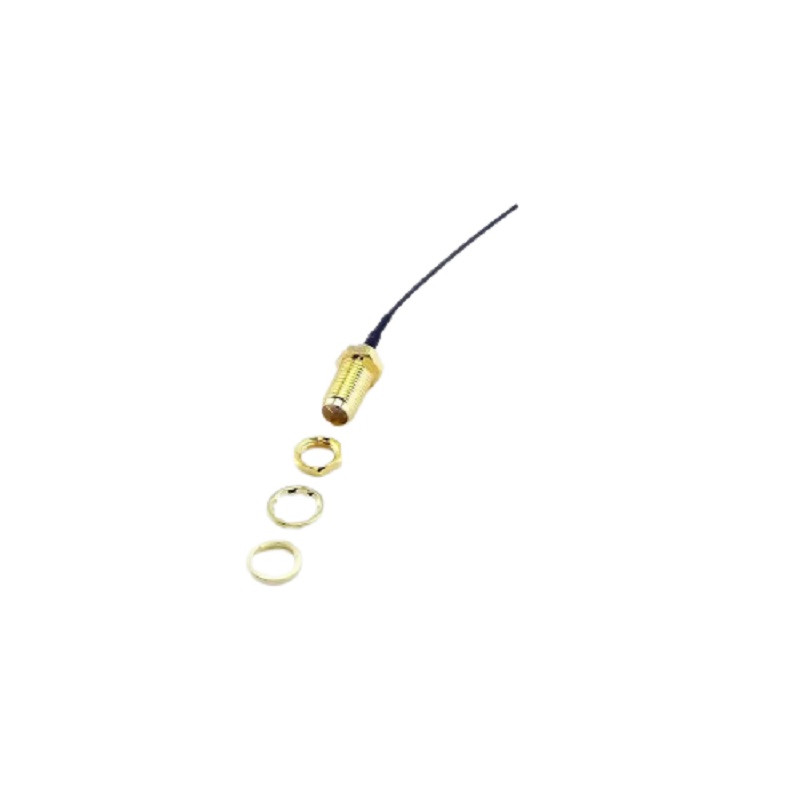

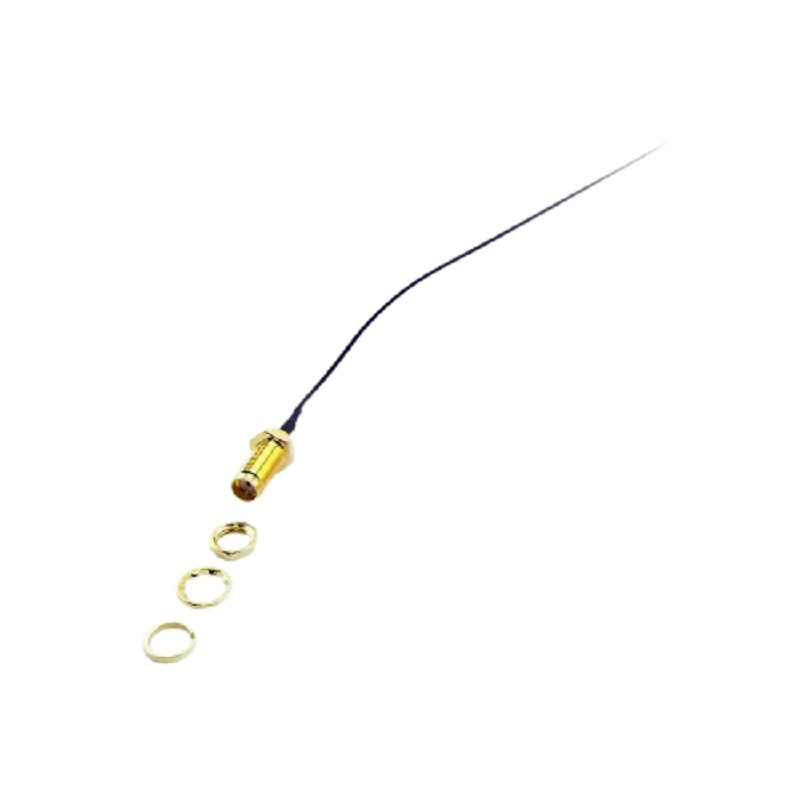

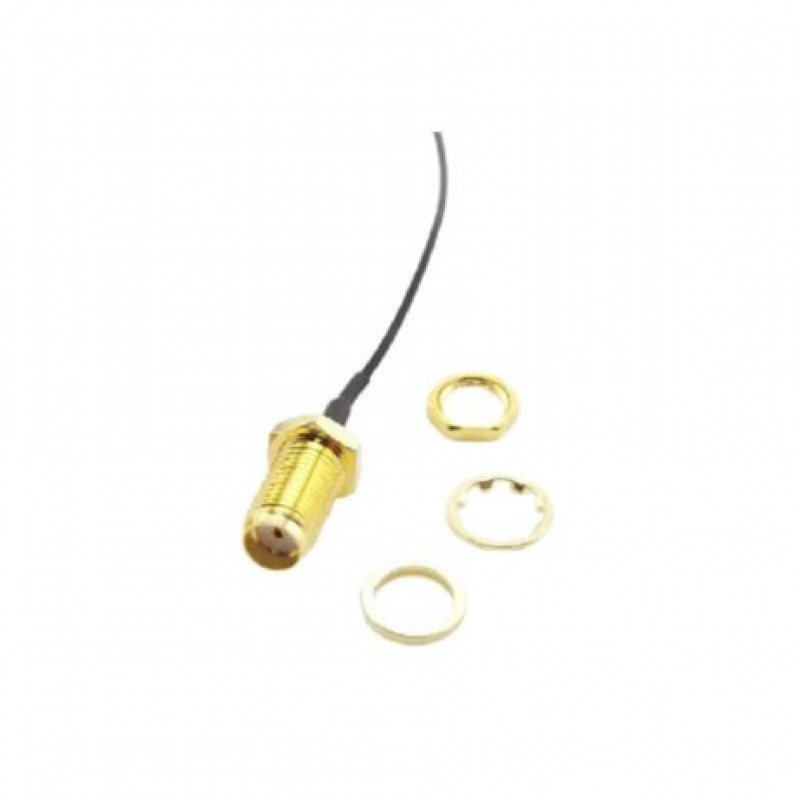

1 x 10CM SMA Female to Stripping Head Connector Cable 11mm RG1.13
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
10CM SMA Female to Stripping Head Connector Cable 11mm RG1.13
- Product Code: EC-19939
- Availability: Out Of Stock
-
Rs.43.00
- (Excluding 18% GST)
