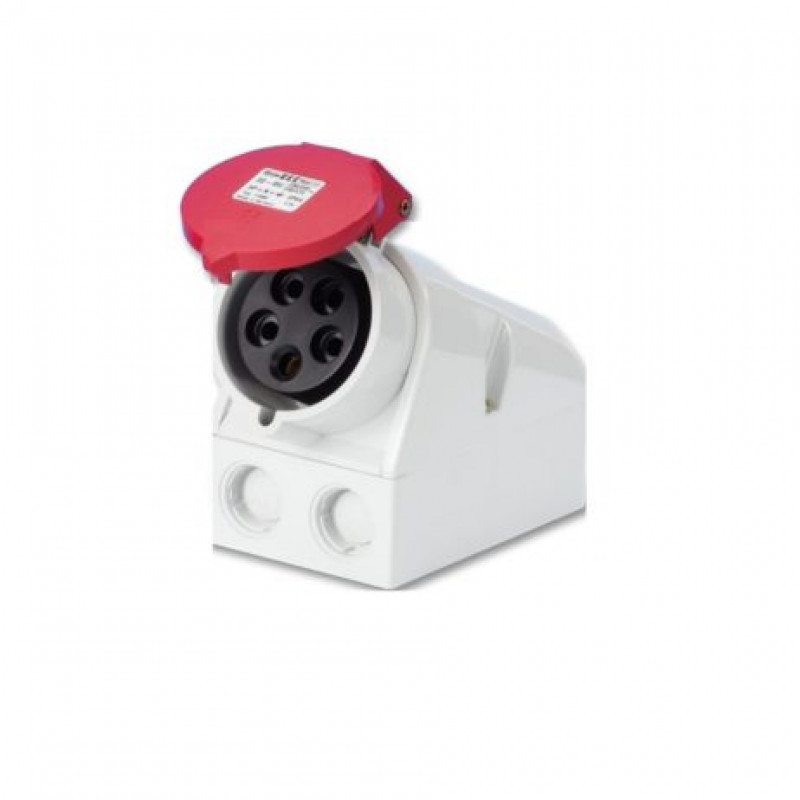

The 11962 is a 5-pole Power Entry Connector with maintenance free screwless terminals. The splash-proof quick connect surface -mount socket outlet features cable entry, one at top (open), two at bottom and one rear entry (closed), base of enclosure can rotate 180.
Features:
- 50 to 60Hz Frequency
- 6hr Earthing position
- 4 drill holes prestamped in the base of the enclosure
Specifications:
- Current Rating: 32A
- Voltage Rating VAC: 415V
- Connector Mounting: Surface Mount
- Electrical Connector Gender: Outlet
- Pin Configuration: 3P+N+E
- Connector Colour: Red
- IP Rating: IP44
Package Includes:
1 x 11962-SOCKET SURF MT, 32A, 415V, 3P+
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
11962-Socket Surf Mt, 32A, 415V, 3P+
- Product Code: EC-21724
- Availability: Out Of Stock
-
Rs.2445.00
- (Excluding 18% GST)
