12V DC Solenoid Water Air Valve Switch (Normally Closed) 1/2 controls the flow of fluid (liquid or air) and acts as a valve between high-pressure fluid! This liquid valve would make a great addition to your robotic gardening project. There are two (Nominal NPT) outlets. Normally, the valve is closed. When a 12V DC supply is applied to the two terminals, the valve opens and water can push through.

The valve works with the solenoid coil which operates electronically with DC 12 volt supply. As it is a normally closed assembly, it opens the flow of fluids as soon as it is powered ON and stops/blocks the flow when the supply voltage removed.

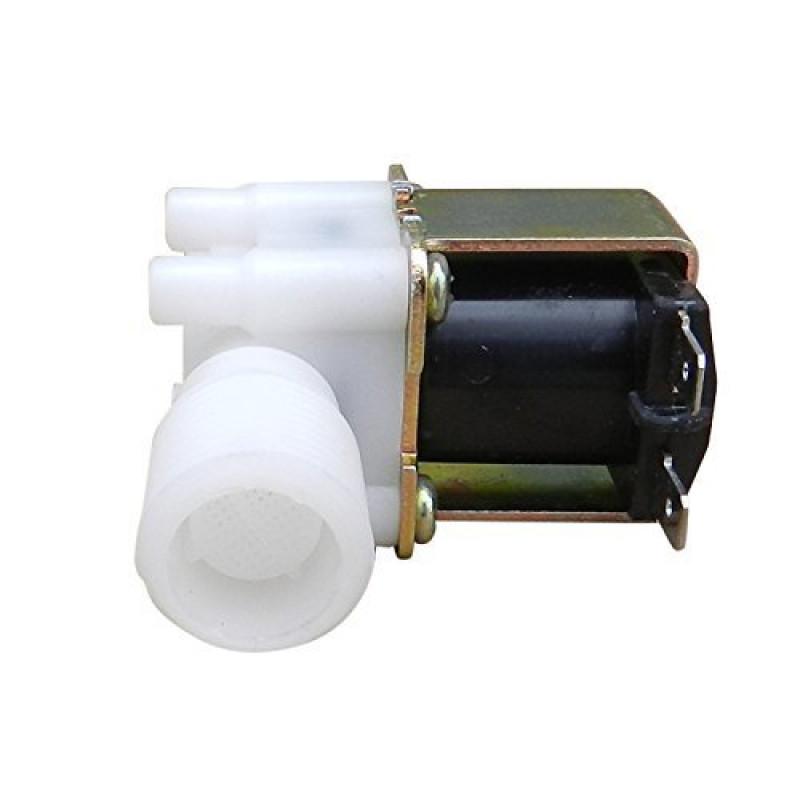

Note: While Connecting Valve in Flow pipeline, you need to mind the Input and Output direction of the valve. It will work only if you connect it in the right direction. (Hint: Inside the value, at one side you will find the filter this is the input side of the value). It is not suitable for use with Gravity fed systems


Features:

  1. Compact and convenient.
  2. Easily installed and serviced
  3. Precise and reliable.
  4. The installation direction can be arbitrary Angle
  5. Pressure-regulating valve (steady flow valve) function similar to the water flow switch
  6. Not only can it provide a steady flow, but it also prevents the dry burning.
  7. Suitable for fluids like water, oil, air.

Package Includes:

1 x 12V Solenoid Water Air Valve Switch (Normally Closed) 1/2


    Specifications:

    Model

    12V DC 1/2" Solenoid Valve

    Rated Operating Voltage (VDC)

    12

    Rated Current (mA)

    600

    Operation Mode

    Normally Closed

    Power Consumption (Watt)

    8

    Pressure

    0.02- 0.8Mpa

    Energized forms

    Intermittent

    Inlet and outlet Diameter

    Hose barbs for 1/2" (outer diameter) hose

    Dimensions (mm) LxWxH

    Body: 84 x 57mm (L x H)
    Coil size: 34 x 23mm (W x H)

    Weight (gm)

    100

    Max fluid temperature

    100C


    Brand/Manufacturer Generic
    Country Of Origin China
    Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
    MRP Rs. 305.62 (Inclusive of all Taxes)
