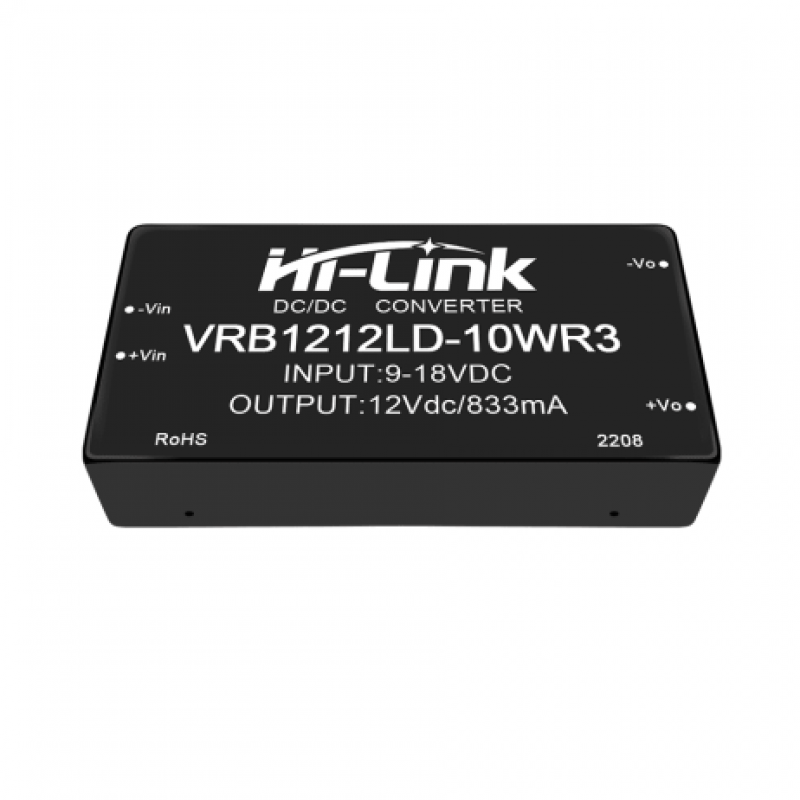

The VRB1212LD-10WR3 is a DC-to-DC power module converter designed for efficient and reliable voltage transformation in electronic applications. Operating with an input voltage of 12V, this module is specifically tailored to provide a stable output of 12V at 10 watts, with a current rating of 833mA. The 10WR3 designation indicates a power rating of 10 watts, making it suitable for a range of low-power electronic devices and systems.
One notable feature of this converter is its isolation capability, providing a safe separation between the input and output circuits. With an isolation voltage of 1500VDC, this module ensures enhanced electrical safety and protection against potential voltage spikes or disturbances, making it well-suited for applications where isolation is crucial
Features:
- Wide input voltage range 2:1, isolated regulated output 5W
- Isolation voltage 1500VDC
- Transfer efficiency up to 86%
- Quick Start100mS(Typ)
- Operating temperature range-40C~+85C
- Small SIP package, metal case, low output ripple
- International standard pin, direct installation of PCB board
- Output short-circuit protection: continuous short-circuit protection, automatic recovery
- Some useful link
Specifications:
- Model: VRB1212LD-10WR3
- Input Voltage: 9~18Vdc
- Output Voltage: 12.0Vdc/833mA
- Output Power: 10W
Package Includes:
1 x 12V to 12V 10W 833mA DC to DC Isolation Voltage 1500VDC Power Module Converter VRB1212LD-10WR3
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
