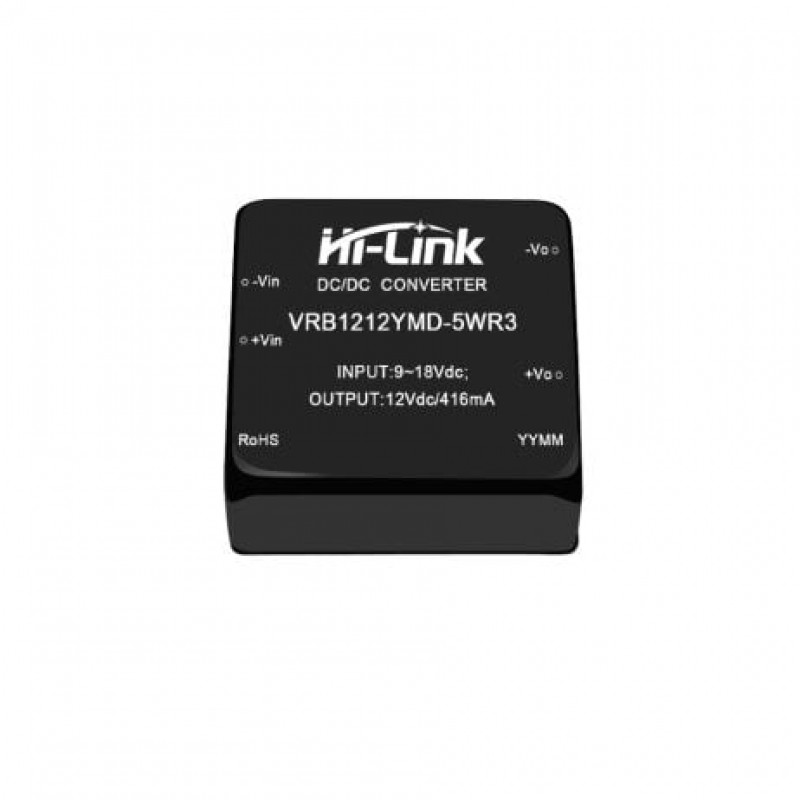

The VRB1212YMD-5WR3 is a high-performance DC-to-DC power module converter designed for precision power delivery in a variety of applications. With a conversion capacity from 12V to 12V, this module provides a reliable 5W output, making it well-suited for powering devices that require a consistent voltage level within this range. The converter is configured to deliver a stable 0.42A current output, ensuring a dependable power supply for connected electronic components.
Features:
- Easy to use
- Easy to mount
- Good quality Product
Specifications:
- Input Voltage: 9~18Vdc
- Output: 12Vdc
- Current: 416mA
- Wide input voltage range 2:1, isolated regulated output 5W
- Isolation voltage 1500VDC
- Transfer efficiency up to 84%
- Quick Start1mS(Typ)
- Operating temperature range-40C~+85C
- Small SIP package, metal case, low output ripple
- International standard pin direct installation of PCB board
- Output short-circuit protection: continuous short-circuit protection, automatic recovery
Package Includes:
1 x 12V to 12V 5W 0.42A DC to DC Isolation Voltage 1500VDC Power Module Converter VRB1212YMD-5WR3
