The B1224S-2WR3 is a high-quality DC to DC power module converter designed to efficiently transform a 12V input voltage to a stable 24V output voltage. With a power rating of 2 watts and a current of 83mA, this converter is specifically engineered to meet the demands of various electronic applications where a precise and reliable power supply is crucial.
Features:
- characteristic: Constant voltage input, isolated non-stabilized voltage single output,2W
- Isolation voltage 1500VDC
- Low no-load power consumption 0.025W(Typ.)
- Transfer efficiency up to 90%
- Output short-circuit protection: continuous short-circuit protection, automatic recovery
- The voltage of the input power supply is relatively stable. Voltage variation range10%Vin
- Operating temperature range-40C~+85C
- Small SIP package
Specifications:
- Power: 50 W
- Material: ABS Plastic
- Current: 2W 83mA
- Output Voltage: 24V
- Input Voltage: 12V
- Phase: Single Phase
- Minimum Order Quantity: 1000 Piece
Package Includes:
1 x 12V to 24V 2W 83mA DC to DC Isolation Voltage 1500VDC Power Module Converter B1224S-2WR3
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

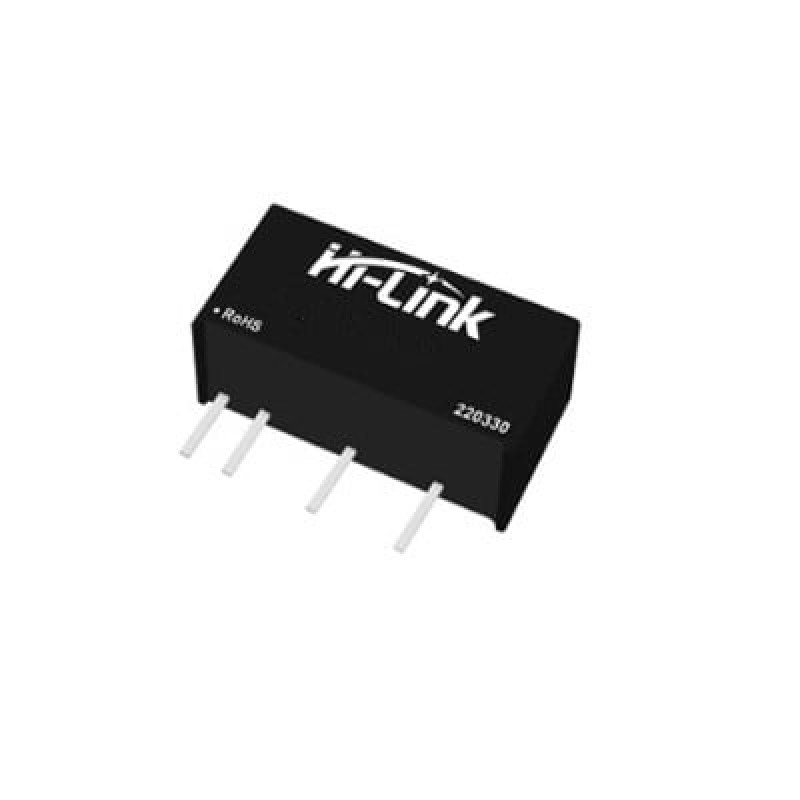

12V to 24V 2W 83mA DC to DC Isolation Voltage 1500VDC Power Module Converter B1224S-2WR3
- Product Code: EC-18524
- Availability: Out Of Stock
-
Rs.149.00
- (Excluding 18% GST)
