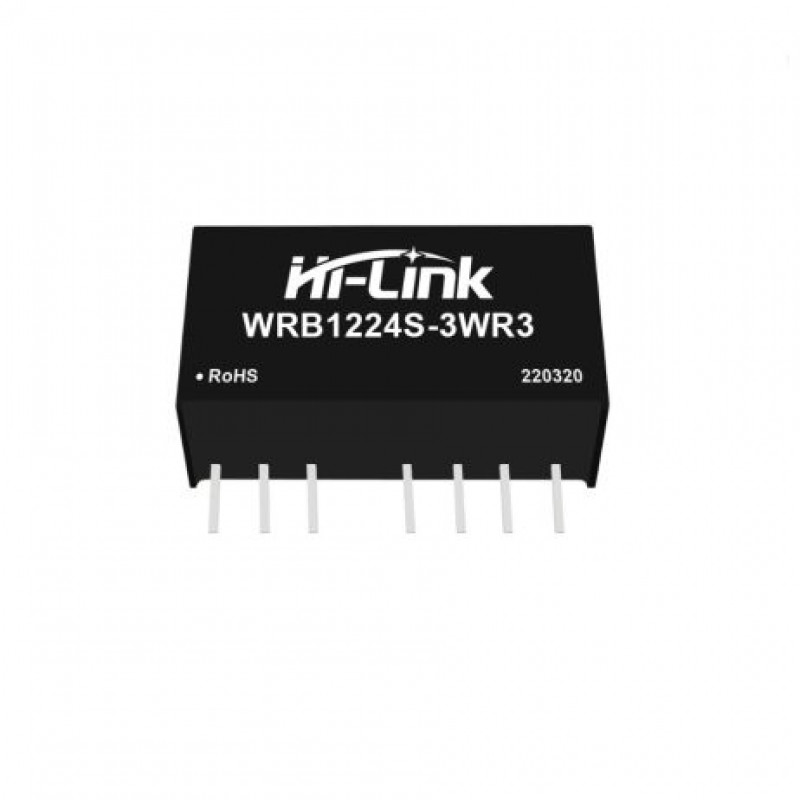

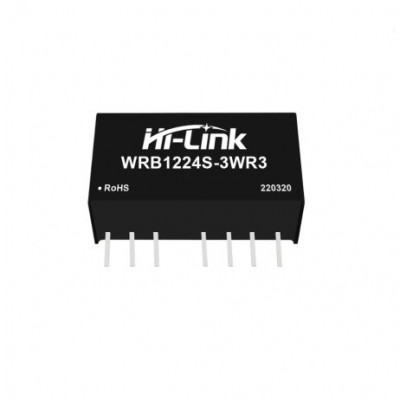

The 12V to 24V 3W 125mA DC to DC Isolation Voltage 1500VDC Power Module Converter WRB1224S-3WR3 is a versatile and efficient power conversion module designed to transform a 12V input voltage into a regulated 24V output. With a power rating of 3 watts, this converter is capable of providing a stable and reliable power supply for a variety of electronic applications.
Features:
- Easy to use
- Easy to mount
- Good quality product
Specifications:
- Input Voltage: (9~18V)
- Output Voltage: 24V
- Current: 125mA
- Wide input voltage range 2:1, isolated regulated output 3W
- Isolation voltage: 1500VDC
- Transfer efficiency up to 83%
- Output short-circuit protection: continuous short-circuit protection, automatic recovery
- The voltage of the input power supply is relatively stable.Voltage variation range10%Vin
- Operating temperature range -40C~+85C
- Small SIP package
- International standard pindirect installation of PCB board.
Package Includes:
1 x 12V to 24V 3W 125mA DC to DC Isolation Voltage 1500VDC Power Module Converter WRB1224S-3WR3
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
12V to 24V 3W 125mA DC to DC Isolation Voltage 1500VDC Power Module Converter WRB1224S-3WR3
- Product Code: EC-18576
- Availability: Out Of Stock
-
Rs.351.00
- (Excluding 18% GST)
