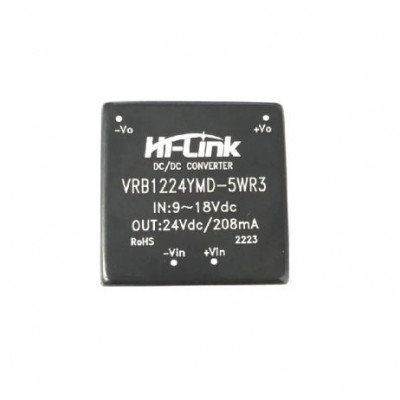

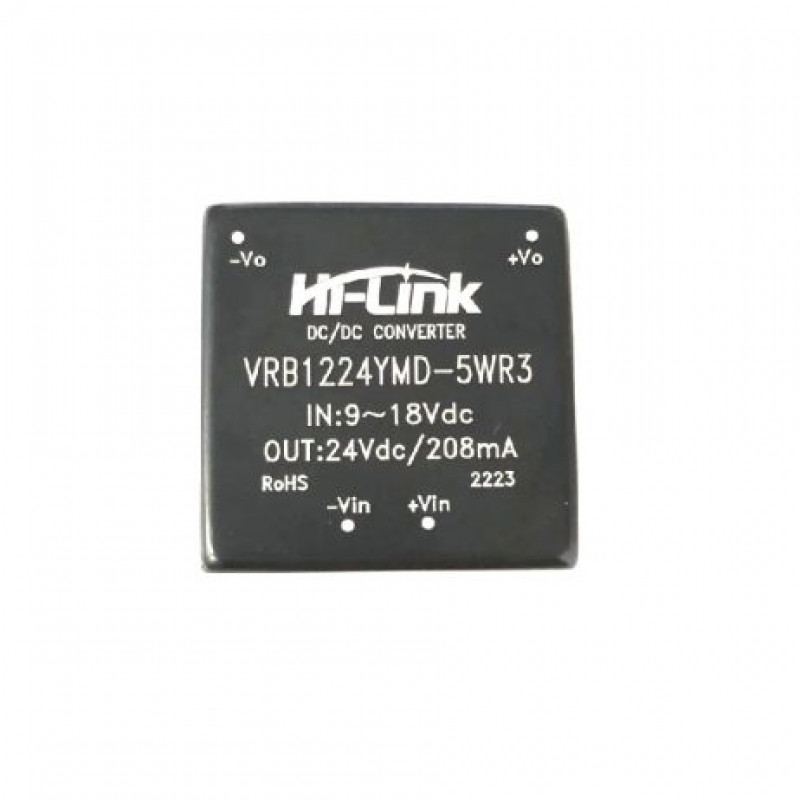

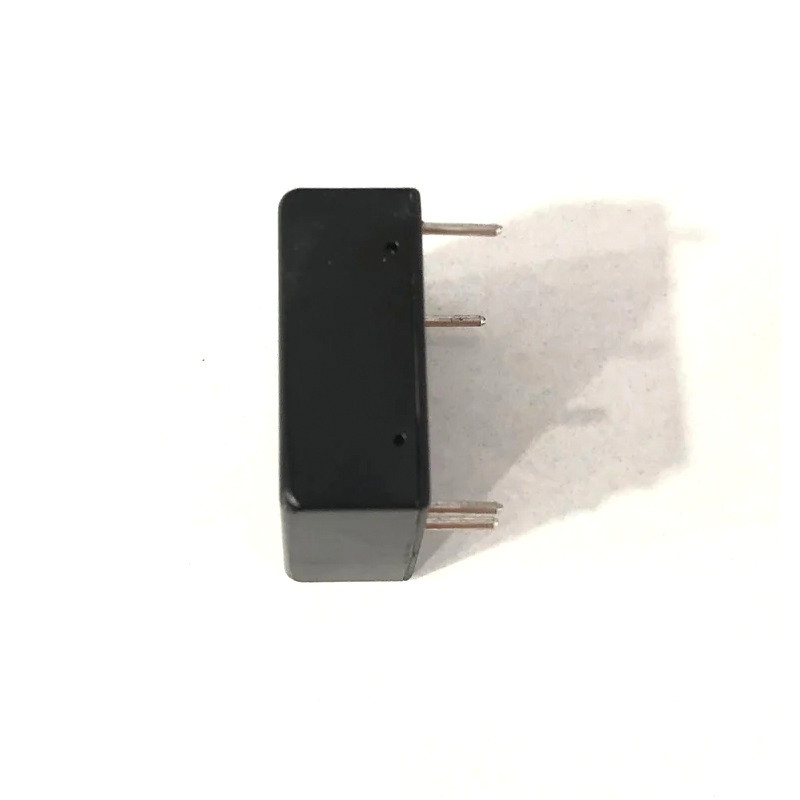

The 12V to 24V 5W 0.21A DC to DC Isolation Voltage 1500VDC Power Module Converter VRB1224YMD-5WR3 boasts a wide input voltage range of 2:1 with an isolated regulated output of 5W. Its isolation voltage is 1500VDC, ensuring reliable protection. The transfer efficiency of the HLk-VRB1224YMD-5WR3 is up to 84%, making it a highly efficient option. The quick start time of the HLk-VRB1224YMD-5WR3 is 1mS (Typ) and it operates within a temperature range of -40C to +85C. The HLk-VRB1224YMD-5WR3 is designed to be compact with its small SIP package and metal case and has low output ripple. It also features international standard pins for direct installation on a PCB board and provides output short-circuit protection with continuous short circuit protection and automatic recovery.
Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.
Features:
- Easy to use
- Easy to mount
- Good quality Product
Specifications:
- Input Voltage: 9~18Vdc
- Output: 24Vdc
- Current: 208mA
- Conversion efficiency 81~83%Typ
- Operating temperature range-40C~+85C
- Output protection: short circuit protection, over-current protection, over-voltage protection
- Dimension: 25.5 x 25.5 x 17mm
- Weight (g): 12
Package Includes:
1 x 12V to 24V 5W 0.21A DC to DC Isolation Voltage 1500VDC Power Module Converter VRB1224YMD-5WR3
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
12V to 24V 5W 0.21A DC to DC Isolation Voltage 1500VDC Power Module Converter VRB1224YMD-5WR3
- Product Code: EC-18574
- Availability: Out Of Stock
-
Rs.351.00
- (Excluding 18% GST)
