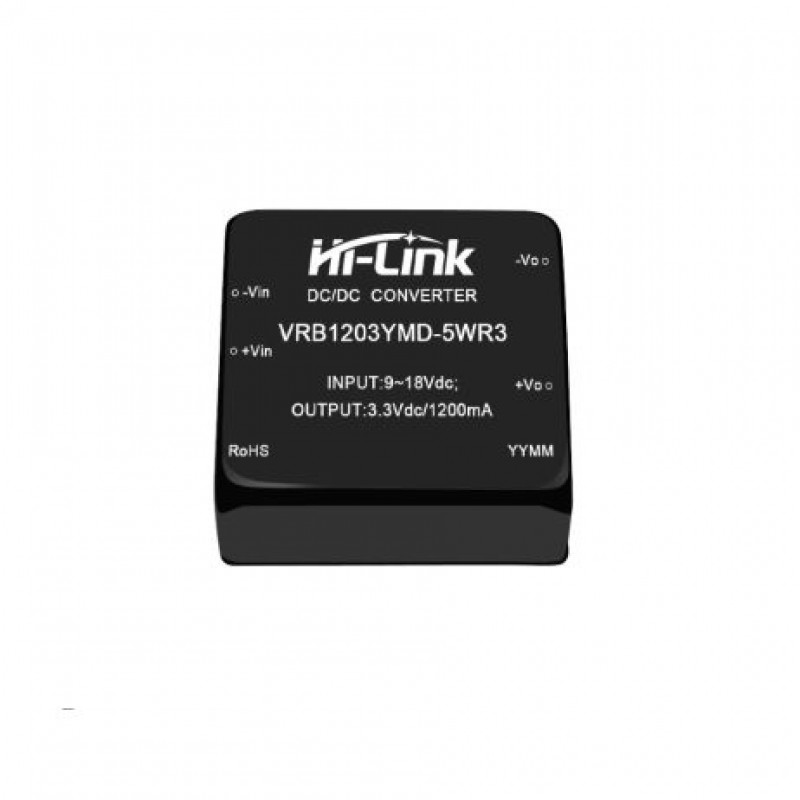

The 12V to 3.3V 5W 1.2A DC to DC Isolation Voltage 1500VDC Power Module Converter, specifically the VRB1203YMD-5WR3, is a compact and efficient power conversion module designed to step down a 12V DC input to a stable 3.3V DC output. Tailored for applications requiring a lower voltage with isolation capabilities, this module is well-suited for use in electronics, industrial equipment, and other systems where electrical separation is essential.
Features:
- Easy to use
- Easy to mount
- Good quality Product
Specifications:
- Input Voltage: 12V (9~18V)
- Output Voltage: 3.3V
- Current: 1.2A
- Power: 5W
- Wide input voltage range 2:1, isolated regulated output 5W
- Isolation voltage 1500VDC
- Transfer efficiency up to 84%
- Quick Start1mS(Typ)
- Operating temperature range-40C~+85C
- Small SIP package, metal case, low output ripple
- International standard pin direct installation of PCB board
- Output short-circuit protection: continuous short-circuit protection, automatic recovery
Package Includes:
1 x 12V to 3.3V 5W 1.2A DC to DC Isolation Voltage 1500VDC Power Module Converter VRB1203YMD-5WR3
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
12V to 3.3V 5W 1.2A DC to DC Isolation Voltage 1500VDC Power Module Converter VRB1203YMD-5WR3
- Product Code: EC-18540
- Availability: Out Of Stock
-
Rs.351.00
- (Excluding 18% GST)
