The B1205S-2WR3 is a versatile DC-to-DC power module converter designed for efficiently converting a 12V input voltage to a stable 5V output. With a power rating of 2W and a current output of 400mA, this converter is suitable for a variety of applications where a regulated low-voltage power supply is required.
Features:
- Easy to use
- Easy to mount
- Good quality Product
Specifications:
- Input Voltage: 12V
- Output Voltage:
- Power: 2W
- characteristic: Constant voltage input, isolated non stabilized voltage single output,2W
- Isolation voltage 1500VDC
- Low no-load power consumption 0.025W(Typ.)
- Transfer efficiency up to 90%
- Output short-circuit protection: continuous short circuit protection, automatic recovery
- The voltage of the input power supply is relatively stable.Voltage variation range10%Vin
- Operating temperature range -40C~+85C
- Small SIP package
- International standard pindirect installation of PCB board.
- High reliability and long life design,continuous working time MTBF3.5 million hours (3500000Hrs)
Package Includes:
1 x 12V to 5V 2W 400mA DC to DC Isolation Voltage 1500VDC Power Module Converter B1205S-2WR3
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 154.58 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

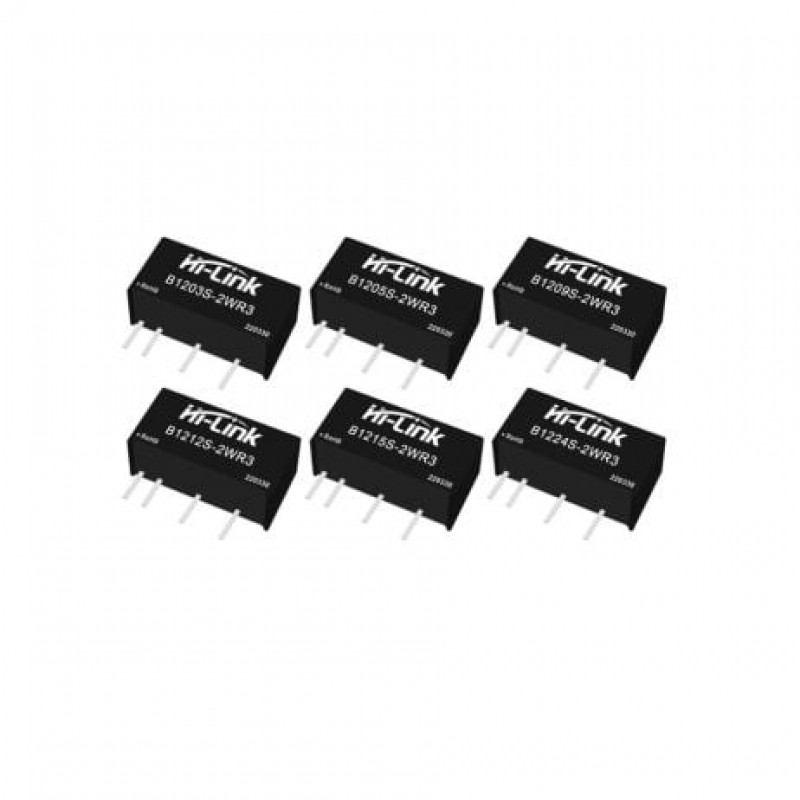

12V to 5V 2W 400mA DC to DC Isolation Voltage 1500VDC Power Module Converter B1205S-2WR3
- Product Code: EC-18567
- Availability: Out Of Stock
-
Rs.131.00
- (Excluding 18% GST)
