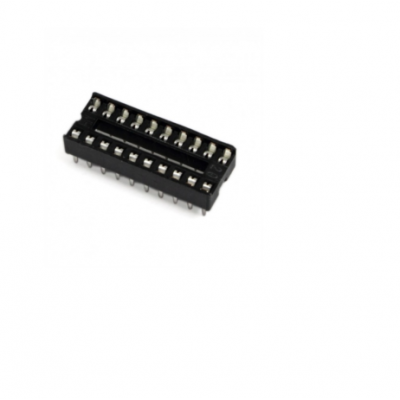

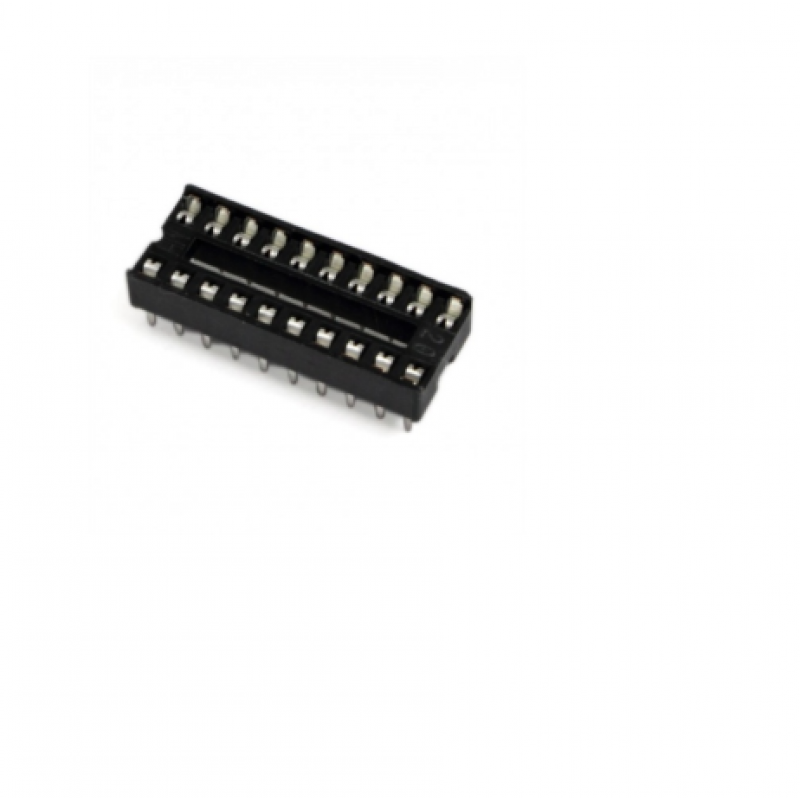

The 2227-20-03-07 is a 20-way IC Socket with tin-plated over nickel phosphor bronze contacts and 30% glass-filled PBT housing.
Features:
- 20mR Contact resistance
- 1000MR Insulation resistance
- 1A Current rating
- 1000VAC/minute Dielectric withstanding voltage
- 0.5pF Maximum capacitance
- 50-cycle Durability
- -40 to +105C Operating temperature range
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Specifications:
- No. of Contacts: 20Contacts
- Connector Type: DIP Socket
- Pitch Spacing: 2.54mm
- Product Range: 2227
- Row Pitch: 7.62mm
- Contact Material: Phosphor Bronze
- Contact Plating: Tin Plated Contacts
Package Includes:
5 x 2227-20-03-07-SOCKET IC, DIL, 0.3, 20WAY
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
2227-20-03-07-SOCKET IC, DIL, 0.3, 20WAY (Pack of 5)
- Product Code: EC-21697
- Availability: Out Of Stock
-
Rs.48.00
- (Excluding 18% GST)
