The 24LC512-I/SN is a 64K x 8 (512Kbit) serial Electrically Erasable Programmable Read-only Memory (EEPROM), capable of operation across a broad voltage range (2.5 to 5.5V). It has been developed for advanced, low-power applications such as data acquisition. This device also has a page write capability of up to 128bytes of data. This device is capable of both random and sequential reads up to the 512K boundary. Functional address lines allow up to eight devices on the same bus, for up to 4Mbit address space.

Applications:

1. Computers & Computer Peripherals
2. Automotive

Features:

1. Low-power CMOS technology
2. 2-wire Serial interface, IC compatible
3. Cascadable up to eight devices
4. Schmitt-trigger inputs for noise suppression
5. Output slope control to eliminate ground bounce
6. 200 years of data retention
7. 5ms Maximum page write time
8. Self-timed erase/write cycle
9. 128-byte Page write buffer
10. Hardware write-protect

Package Includes:

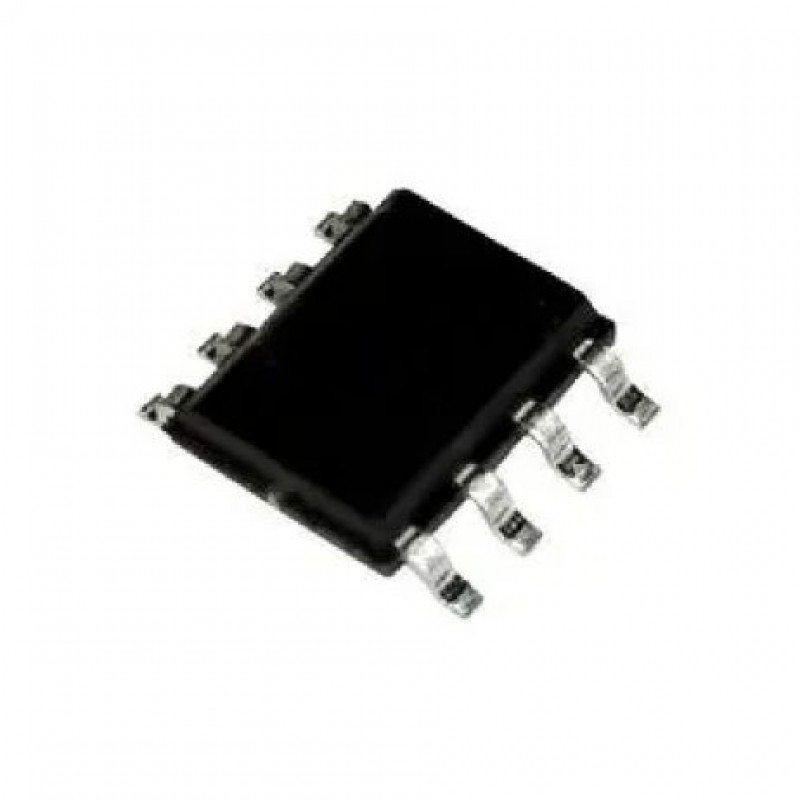

1 x 24LC512-I/SN-MICROCHIP-EEPROM, 512 Kbit, 64K x 8bit, Serial I2C (2-Wire), 400 kHz, SOIC, 8 Pins
