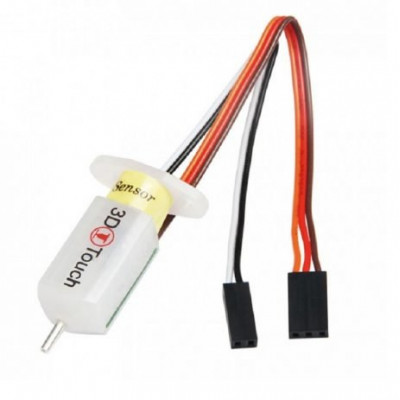

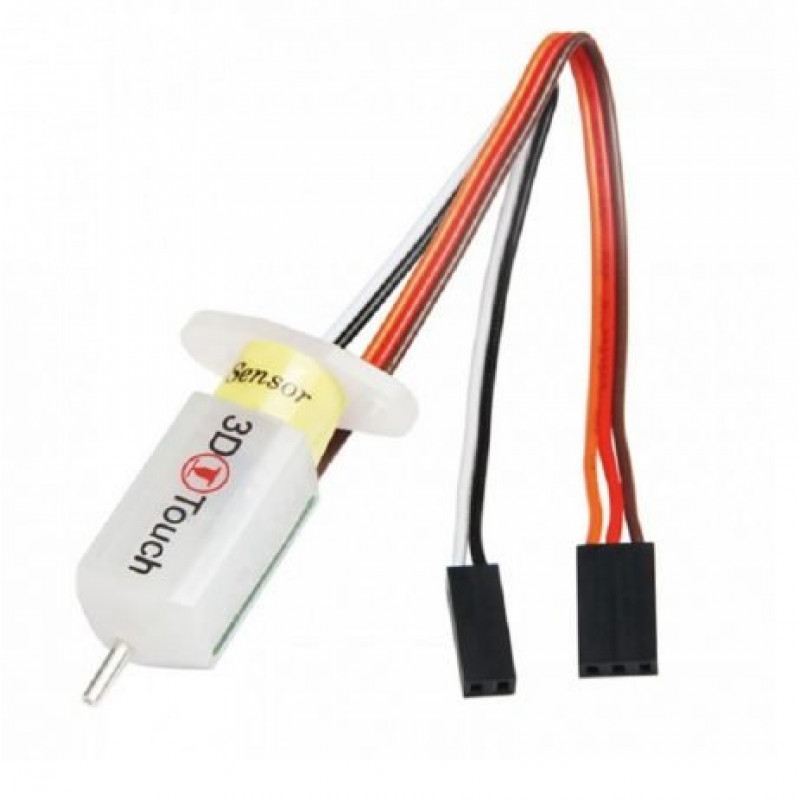

3D Printer TOUCH is an auto-levelling sensor for 3D Printers that can precisely measure the tilt of your print surface. It can greatly improve the printing precision of your 3D Printer.

The main functions and controls of 3D printer touch are the same as most auto bed levelling sensors, which consists of an RC servo and a micro switch, thus, 3D printer touch can be used on almost every 3D printer control board.

By using progressively designed solenoid and hall sensors,It can integrate high precision in such a simple structure. To make it more user-friendly and to bring you more enjoyable printing experience.


Operating condition:

  • 3D Touch can be operated in the following condition.
  • One I/O for control (PWM or Software PWM)
  • One I/O for Z min (Z Probe)
  • GND and +5V power

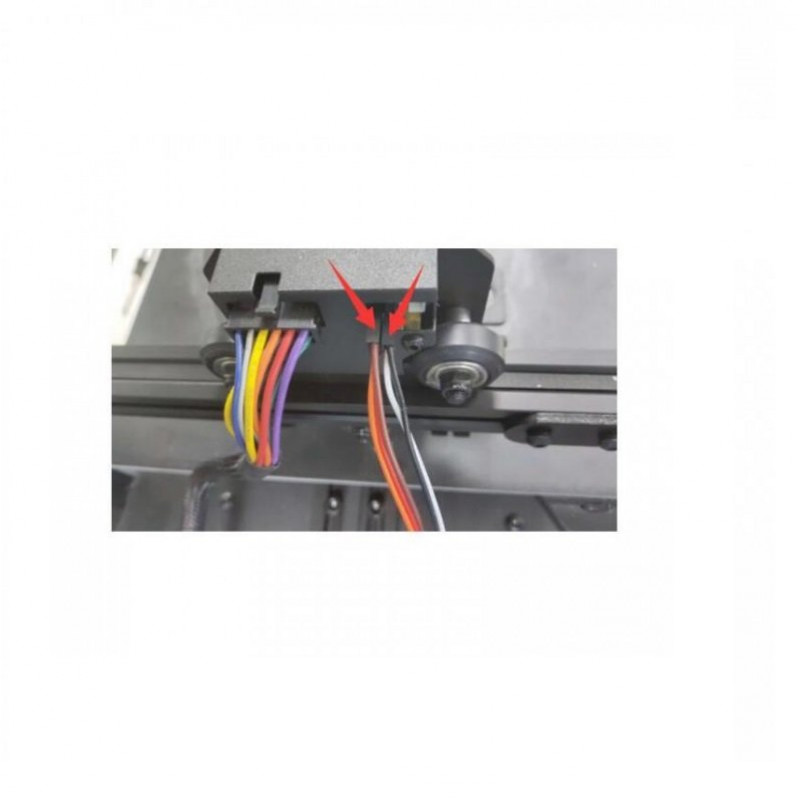

Wiring:

3-pin: Brown (-, GND), Red (+5V), Orange (control signal)

2-pin: Black (-, GND), White (Z min)


Features:

  1. Simple, smart
  2. High-precision
  3. 3DTouch consists of Atmel ATtiny13A, solenoid, and a push pin.
  4. Innovative Solenoid: Ultra Power Saving
  5. It could work with nearly any kind of bed material, such as glasses, woods, metals, and so on.

Package Includes:

1 x 3D Touch Auto Leveling Sensor



Specifications:

Voltage

5V

Current

15mA

Max. Current

300mA

Shell material

PC

Shell color

White translucent

Cable length

150mm

Dimensio(mm)

200 x 200 x 0.5

Weight

10g


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
