ME-8108 Rotary Adjustable Roller Lever Arm Mini Limit Switch also named the POSITION SWITCH, is a commonly used small current main electrical appliances, the contact action is realized through the collision of the moving parts of the production machinery or segmented control circuit, achieve certain control target.

Lever arm can be rotated to the left by 90 degree and to the right by 90 degree. Perfect for electrical control switches in mechanical and other industries; This Limit Switch can be widely used in various machines to monitor the position of moving parts of machines and plant; Please pay attention to the Voltage Rating and check with the voltage of your place to make sure the Limit Switch successfully works.


Features:

  1. Actuator action: momentary.
  2. Actuator type rotary adjustable lever arm with a roller.

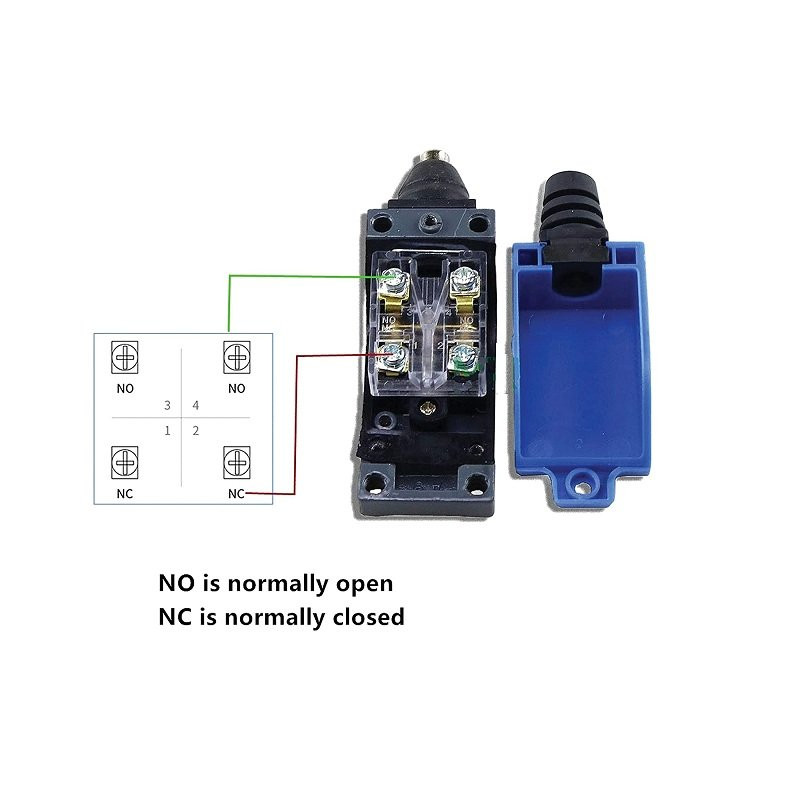

  3. Contact configuration 2 NC + 2 NO.
  4. IP Rating: IP66

Package Includes:

1 x ME-8108 Rotary Adjustable Roller Lever Arm Mini Limit Switch



Specifications :-

Model

ME-8108

Voltage Rating

AC380V, 6(2)A, AC250V, 10(4)A.

Actuator action

Momentary.

Material

Resin, Plastic, Metal.

Roller Dimension

1.8 x 0.7cm / 0.7 x 0.3"(D*H)

Lever Arm Length

10cm / 3.9"

IP Rating

IP66

Weight (gm)

92

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 230.1 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

ME-8108 Rotary Adjustable Roller Lever Arm Mini Limit Switch

  • Product Code: EC-7123
  • Availability: Out Of Stock
  • Rs.195.00
  • (Excluding 18% GST)
