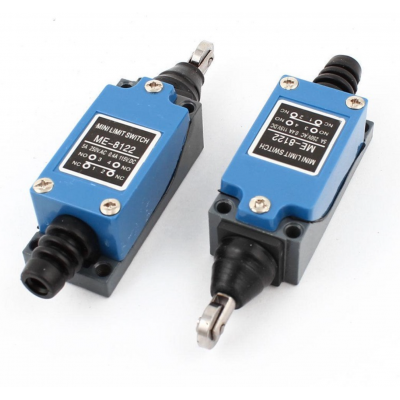

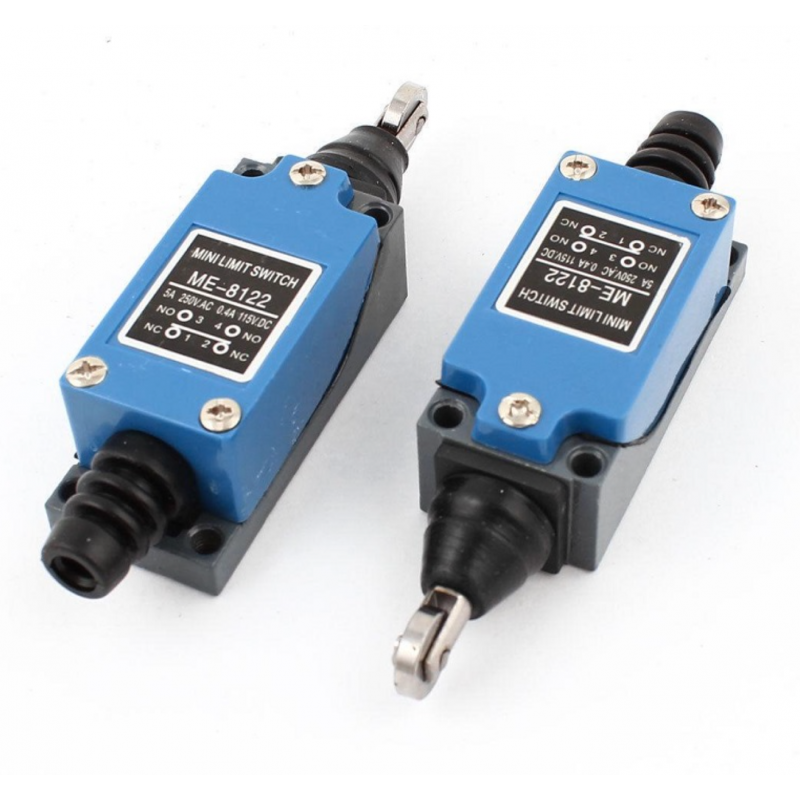

  • ME-8122 Rotary Adjustable Roller Mini Limit Switch

ME-8122 Rotary Adjustable Roller Mini Limit Switch also named the POSITION SWITCH, is a commonly used small current main electrical appliances, the contact action is realized through the collision of the moving parts of the production machinery or segmented control circuit, achieve a certain control target.

Perfect for electrical control switches in mechanical and other industries. This Limit Switch can be widely used in various machines to monitor the position of moving parts of machines and plants. Please pay attention to the Voltage Rating and check with the voltage of your place to make sure the Limit Switch successfully works.


Features:

  1. Actuator action: momentary.
  2. Actuator-type rotary adjustable lever arm with a roller.
  3. Cross Roller Plunger, Automatic Reset.


Specifications:

  1. Model: ME-8122
  2. Type: Cross Roller Plunger, Automatic Reset
  3. Power: AC250V, 5A / DC115V, 0.4A
  4. Mounting Hole Diameter: 4.5mm
  5. Hole Center Point Distance: 56mm x 21mm
  6. Roller Diameter: 12mm
  7. Dimension: 110 x 28 x 25mm
  8. Color: Black & Blue
  9. Material: Plastic & Rubber
  10. Weight: 64g

Package Includes:

1 x ME-8122 Rotary Adjustable Roller Mini Limit Switch

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 230.1 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

ME-8122 Rotary Adjustable Roller Mini Limit Switch

  • Product Code: EC-7114
  • Availability: Out Of Stock
  • Rs.195.00
  • (Excluding 18% GST)
