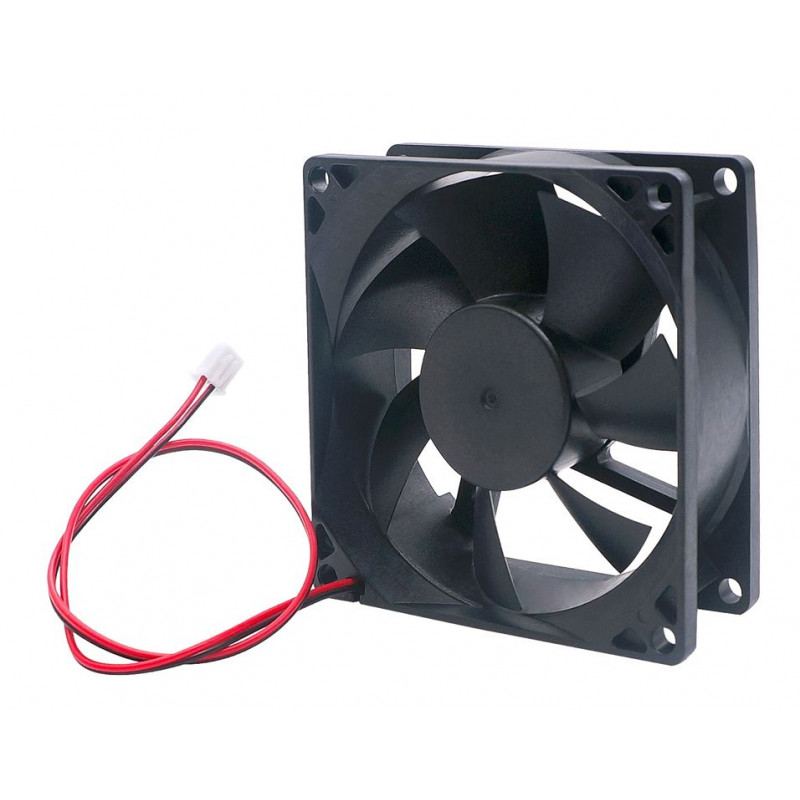

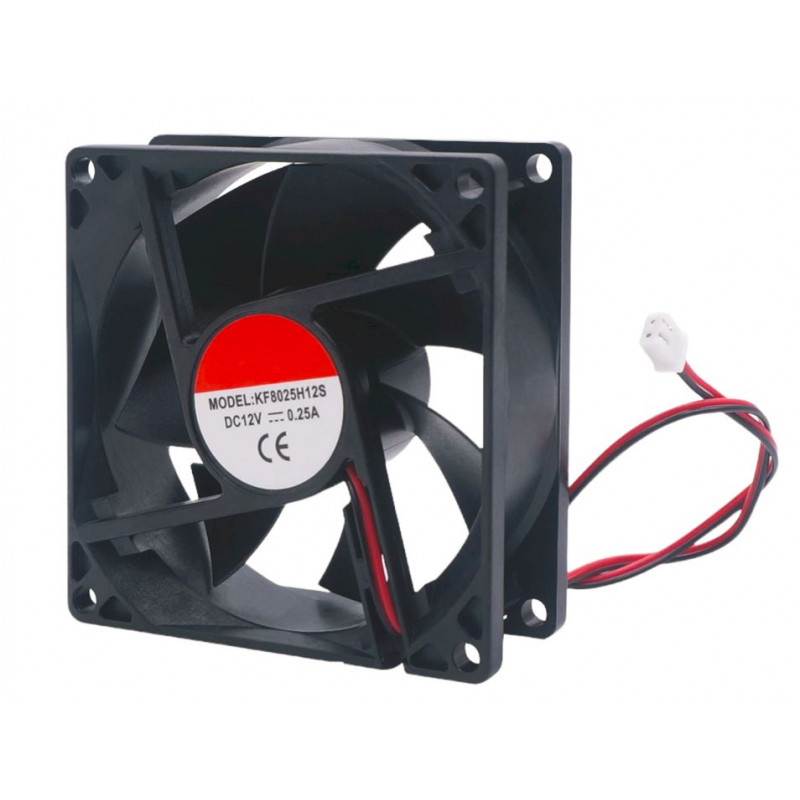

  • 3 inch - 12V - DC Cooling Fan - 80mm

This Brushless DC Cooling Fans are operating at 12V with a dimension of 80x80mm. They are typically found in ATX Computer cases, servers, and other enclosed equipment but they can also be used in a variety of other projects requiring moderate airflow. The fan spins at ~2600 RPM and can move approximately 30CFM. It is fairly quiet – just 30.7dBA. There are two connectors commonly found in PCs on the end – a 4 pin Molex connector designed to fit inline with older style hard drive connectors and a smaller 3 pin Molex KK 2.54mm that is compatible with our 3 pin Molex Header. To use the fan, simply connect Red to 12V, Black to Ground. The White wire is a Tach signal – it can be used to monitor the fan rotation or left disconnected if it isn’t needed.

Features:-

 Input Voltage: 12VDC

 Current: 0.25A

 Noise: 30.7dBA

 Weight: 72g

 Wire Gauge: 26AWG

 RPM: 2600RPM @ 12VDC

 Air Flow: 30.7 CFM

 Dimensions: 80 x 80 x 25mm

 Wire Length: 40cm

Ball Bearing mounted
