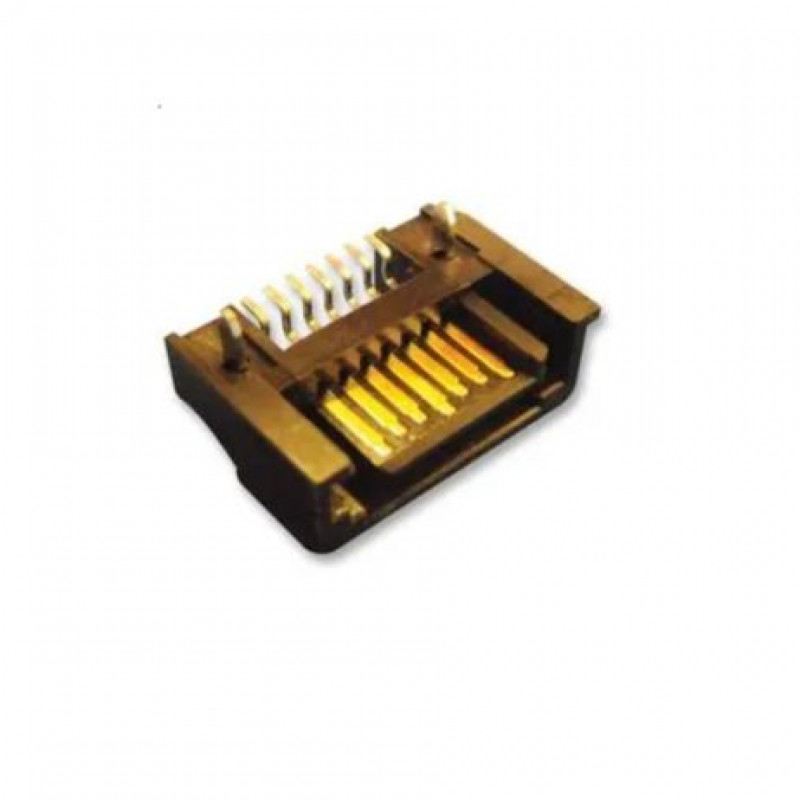

The 47080-4005 is a 7-circuit right-angle SATA System Plug with gold-plated copper alloy contacts and PCB mounting. The 47080 series plug is made of high-temperature thermoplastic, mates with 67489 serial ATA signal connect, ATA straight to straight signal cable assembly 88750-5310 series, 88750-5318 series, 88750-5410 series and 88750-5418 series, suitable for board-to-board, signal and wire-to-board applications.
Features:
- UL94V-0 flammability rating
- Current rating per contact is 1.5A
- Voltage rating is 15V
- Temperature rating from -35 to 85C
Specifications:
- Breakaway: No
- Circuits (Loaded): 7
- Circuits (maximum): 7
- Durability (mating cycles max): 500
- First Mate: / Last Break No
- Flammability 94V-0
- Glow-Wire Compliant: No
- Guide to Mating Part: No
- Keying to Mating Part: None
- Lock to Mating Part: Yes
- Material Plating Mating: Gold
- Material Plating Termination: Tin
- Net Weight: 0.989/g
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness: Recommended 1.60mm
- Packaging Type: Embossed Tape on Reel
- Pitch: Mating Interface 1.27mm
- Plating min: Mating 0.381m
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Shrouded: No
- Stackable: No
- Temperature Range Operating: -35C to +85C
- Termination Interface: Style Surface Mount
Package Includes:
1 x 47080-4005-CONNECTOR, SATA, PLUG, 7POS, S
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
47080-4005-Connector, Sata, Plug, 7Pos
- Product Code: EC-21594
- Availability: Out Of Stock
-
Rs.85.00
- (Excluding 18% GST)
