Moving beyond traditional desktop and network storage applications, Serial ATA is quickly becoming an integral part of consumer electronic products with integrated hard disk drives. Typical applications include HDD-DVD recorders, home servers, multimedia hubs, LCD TVs, digital jukeboxes, HDD-enabled game consoles, set-top boxes with personal video recorders, audio players, and audio-visual devices for the automotive industry.
Note: For more technical details go through Datasheet in the attachment sections
Features:
- Easy to use
- Easy to install
- Good quality product
Specifications:
- Breakaway: No
- Circuits (Loaded): 7
- Circuits (maximum): 7
- Color:- Resin Black
- Durability (mating cycles max): 500
- First Mate / Last Break: Yes
- Glow-Wire Compliant: No
- Guide to Mating Part: No
- Keying to Mating Part: None
- Lock to Mating Part: Yes
- Material: Metal Brass
- Material: Plating Mating Gold
- Material: Plating Termination Tin
- Material: Resin Polyester
- Net Weight: 0.908/g
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 2.10mm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness: Recommended 1.60mm
- Packaging Type: Tray
- Pitch-Mating Interface: 1.27mm
- Plating min: Mating 0.051m
- Plating min: Termination 1.905m
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Surface Mount Compatible: (SMC) No
Package Includes:
1 x 47155-4001-CONNECTOR, SATA, PLUG, 7POS, T
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

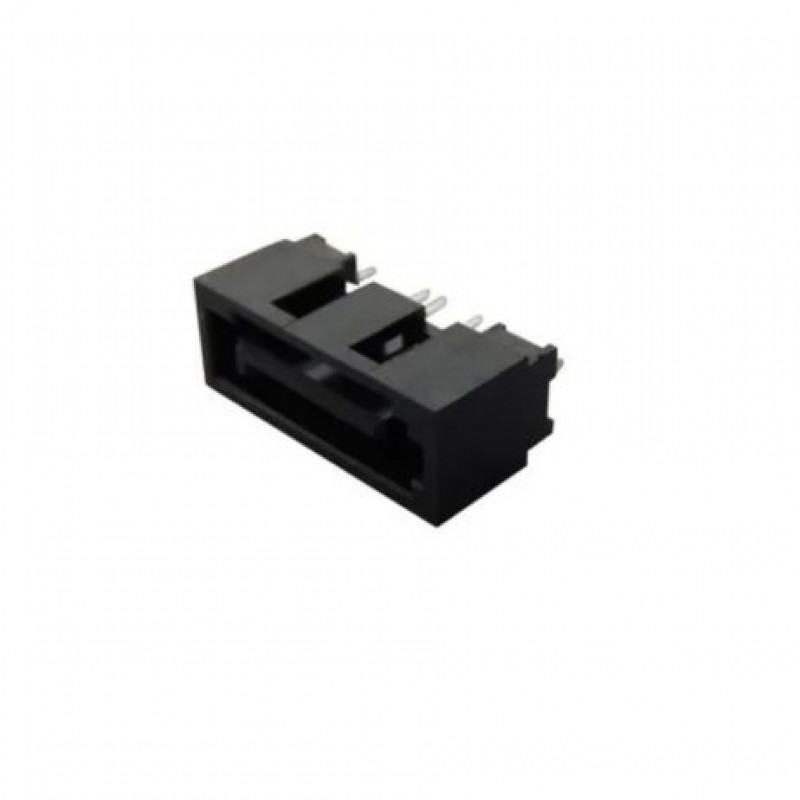

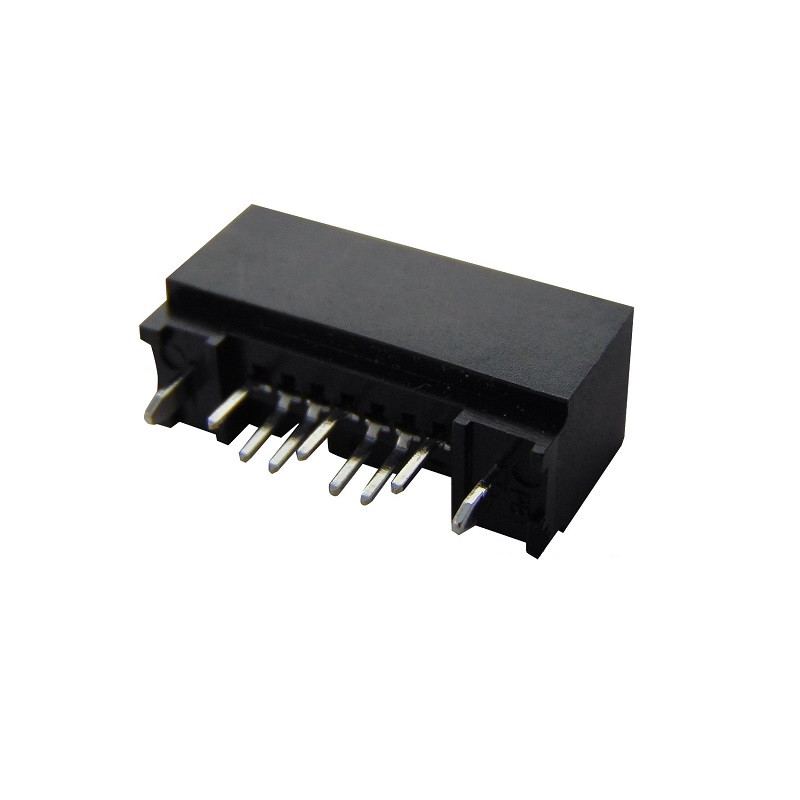

47155-4001-Connector, Sata, Plug, 7Pos (T)
- Product Code: EC-21426
- Availability: Out Of Stock
-
Rs.81.00
- (Excluding 18% GST)
