RP-SMA stands for reverse polarity (sometimes also referred to as reverse SMA or for short R-SMA). It is designed to prevent the unauthorized connection of an external antenna to increase the range. In an RP-SMA connector, the gender has been changed. The RP-SMA male is also the connector with inside threads, but it has the metal sleeve as an inner conductor. The RP-SMA female socket has a barrel with external threads and a center pin.
RP-SMA female outside diameter is 5/16 (7.9375mm): Accommodates a hex nut (bulkhead nut) with 5/16 nominal outer diameter. The connector body is gold-plated brass. The center contact is beryllium Copper, Gold Plated. Crimp ferrule is copper, nickel plated. The material of the insulator is PTFE.
Features:
- RP-SMA Female to Stripping Head Connector Cable
- Length: 50cm, Cable Diameter: 11mm
- Cable Type: RG1.13
- Easy stripping head for termination/connection
- Ideal for antennas and wireless devices
- High-frequency signal transmission
- Durable and reliable construction
- Flexible and manageable installation
- Low signal loss for good signal integrity
Package Includes:
1 x 50CM RP-SMA Female to Stripping Head Connector Cable 11mm RG1.13
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

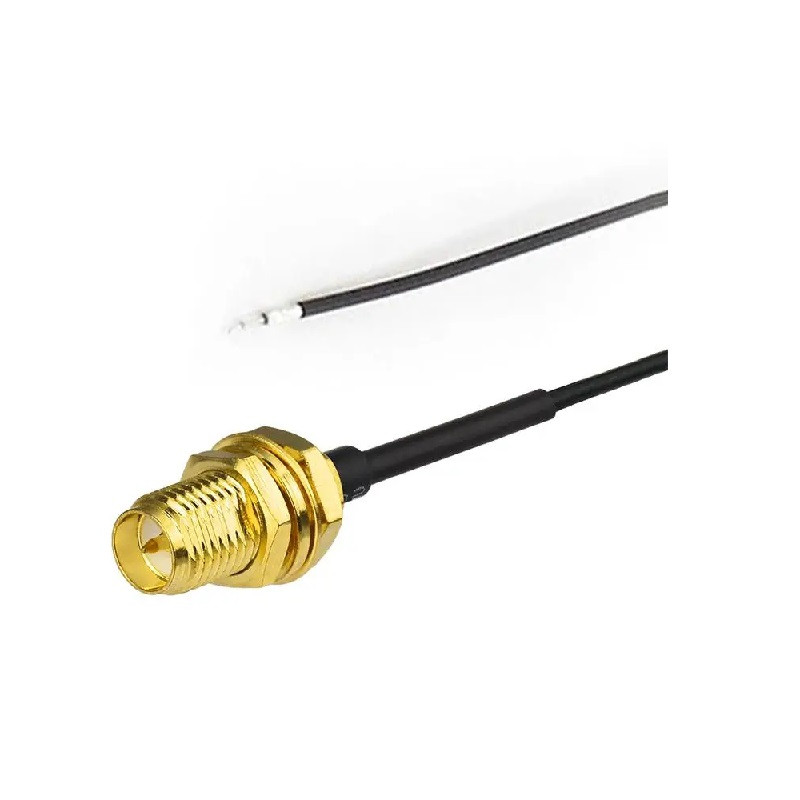

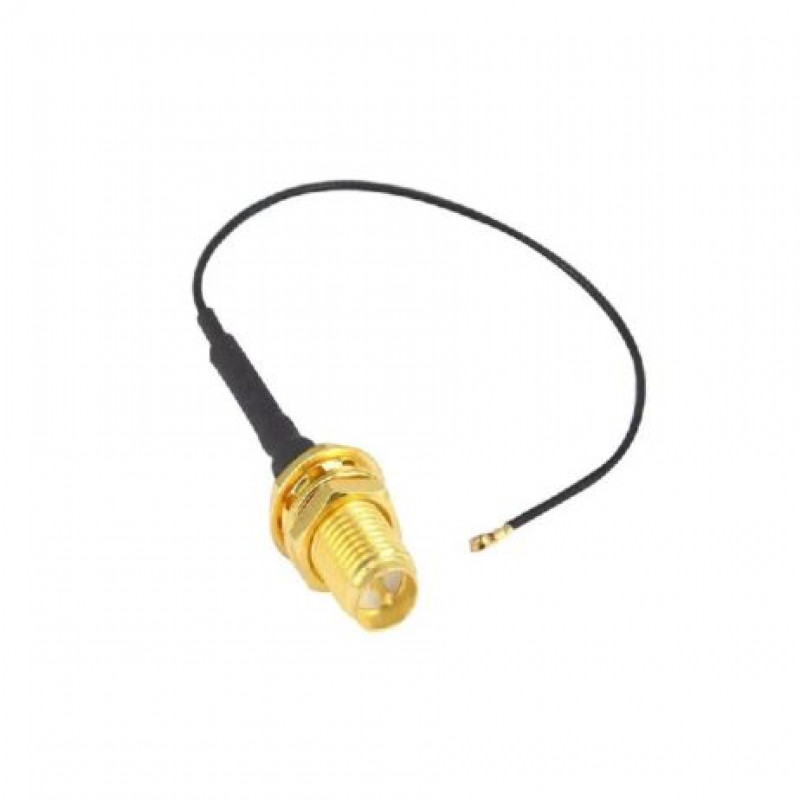

50CM RP-SMA Female to Stripping Head Connector Cable 11mm RG1.13
- Product Code: EC-19986
- Availability: Out Of Stock
-
Rs.78.00
- (Excluding 18% GST)
