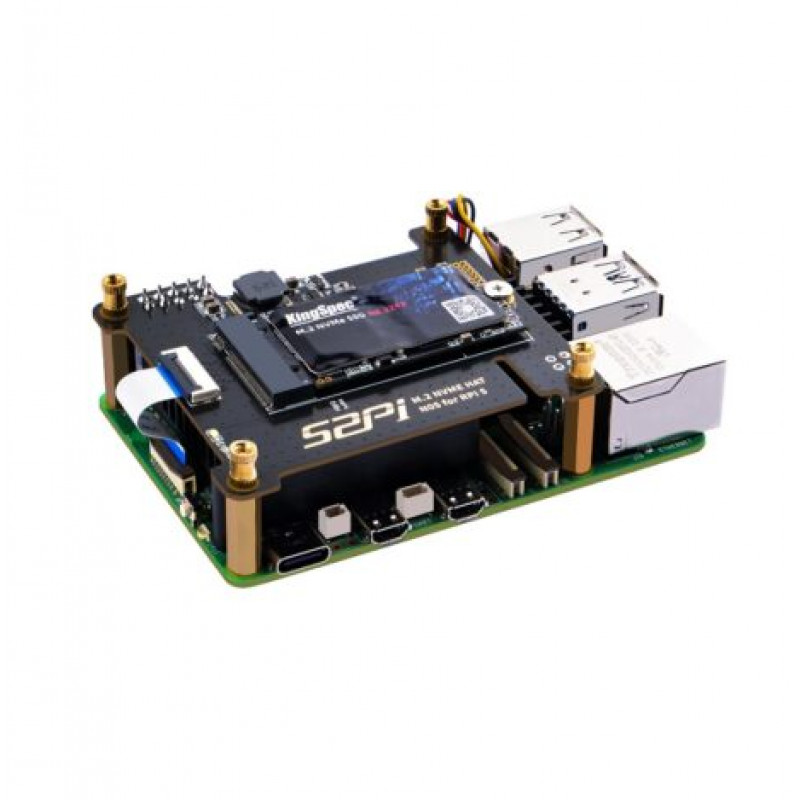

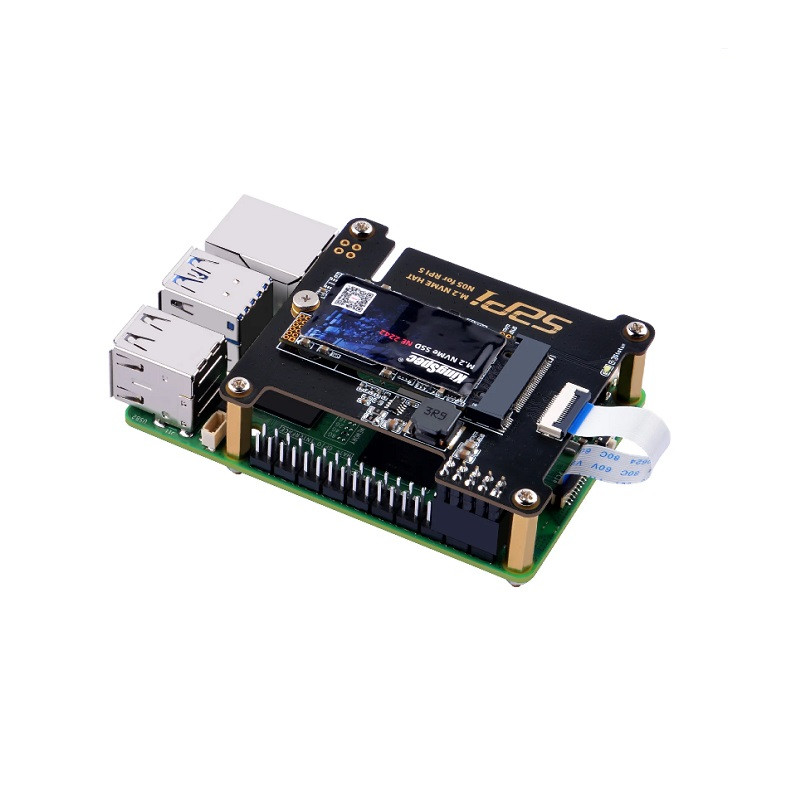

N05 is an NVME M.2 SSD(NVMe 2230, 2242 GEN 3) PIP (PCIe Peripheral Board) for the Raspberry Pi 5 that uses the new PCIE interface of the Raspberry Pi 5 to utilise the NVME M2 SSDs for fast data transfers and ultra-fast booting.

N05 is compatible with the standard HAT size of Raspberry Pi and supports two sizes of NVMe SSD: 2230 and 2242. The included SSD mounting screws make it convenient for users to switch between the two sizes at any time.

Note: The NVMe SSD and Raspberry Pi 5 are not Included in the package.

Features:

1. Designed for RPI 5:Dedicated to the latest single-board computer, the Raspberry Pi 5.
2. NVMe Capability:Supports installing NVMe (M-key) drives in M.2 format sizes 2230 and 2242, extra custom CNC SSD mount screw, no soldering required.
3. PCIe Support:PCIe x1 interface in both Gen2 & Gen3 standards.
4. Hollow design:Hollow design provides excellent ventilation airflow for cooling.
5. Gold-plated PCB:Gold-plated PCBs offer superior electrical performance.
6. PCIe ultra-short signal lines:The short trace routing of PCIe is more reliable and faster, fully meeting the signal requirements of PCIe 3.0.
7. LED Indicators:Features LED light for M.2 disk activity (ACT).

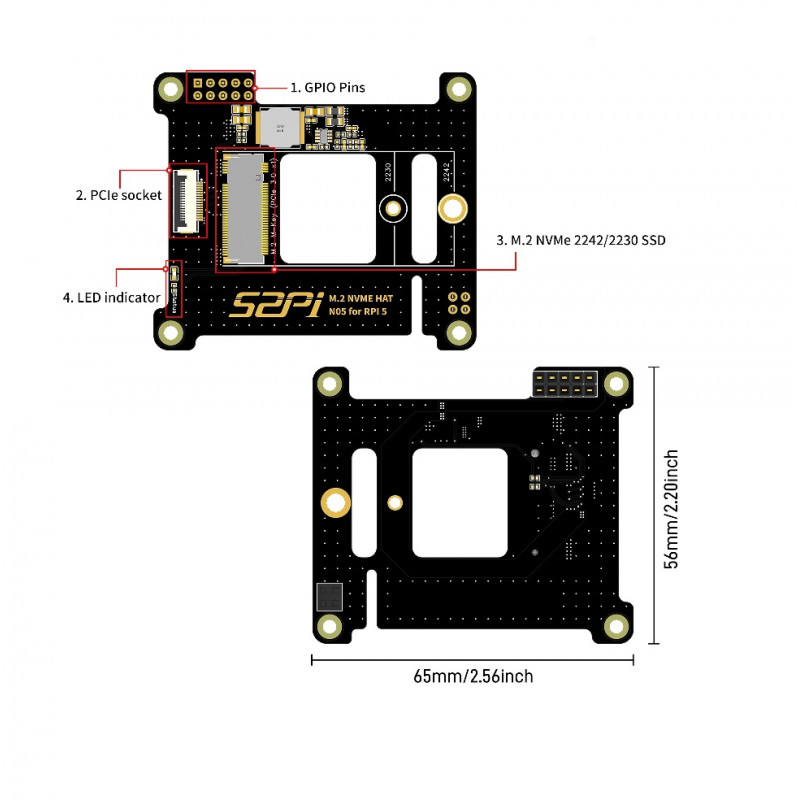

8. Compatible Form Factor:Board format is compatible with the original Raspberry Pi HAT dimensions of 65 x 56.50 mm.
9. M.2 Standard-Compliant Power System:Integrated voltage regulator delivering up to 3A for the 3.3V power rail, compliant with M.2 (NGFF) standard.
10. All Necessary Accessories Included:Comes with a FPC PCIe ribbon, M2 and M2.5 screws, spacers, and extra custom CNC SSD mount screw.
11. Camera/Display fpc cutout:The openings in the PCB allow for the routing of two Display/Camera FPC cables.

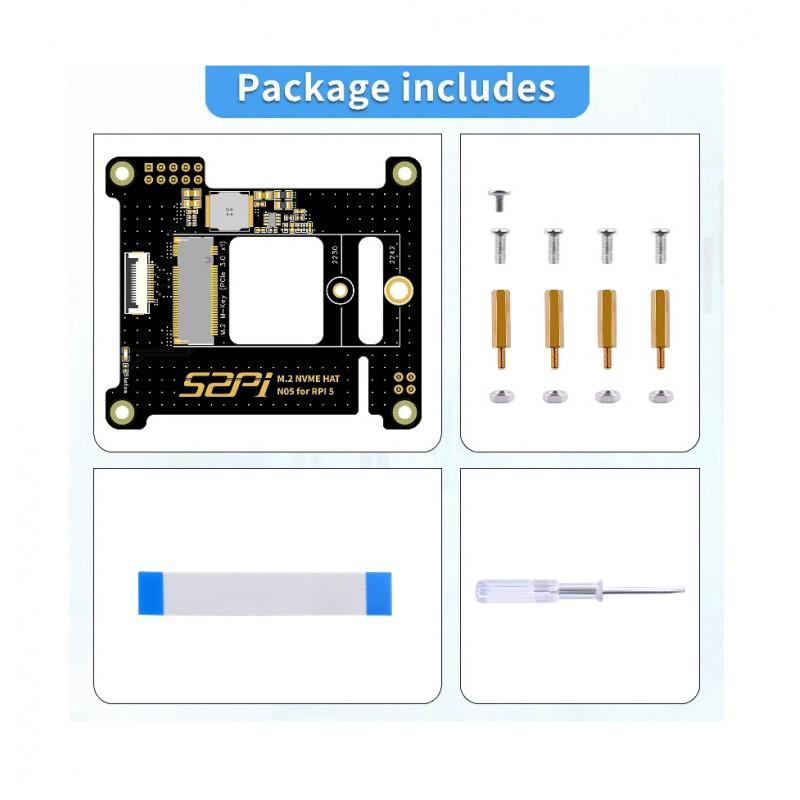

Package Includes:

1 x N05 M.2 2242 PCIe to NVMe Top

1 x PCIe FFC cable (40mm length)

4 x M2.5x16mm Spacers

6 x M2.5x5mm Screws

1 x M2x4mm Screws (to fix MVME M2 SSD)
