The B0512S-2WR3 is a high-performance DC-to-DC power module converter designed for seamless voltage conversion in electronic applications. With a versatile input range of 5V to 12V, this compact module efficiently delivers a stable output power of 2W, accompanied by a current output of 167mA.
Features:
- Easy to use
- Easy to connect
- Good quality product
Specifications:
- Input Voltage: 5V
- Output Voltage: 12V
- Power: 2W
- Characteristic: Constant voltage input, isolated non-stabilized voltage single output,2W
- Isolation voltage: 1500VDC
- Low no-load power consumption: 0.025W(Typ.)
- Transfer efficiency: 90%
- Output short-circuit protection: continuous short-circuit protection, automatic recovery
- The voltage of the input power supply is relatively stable. Voltage variation range10%Vin
- Operating temperature range-40C~+85C
- Small SIP package
- 9. International standard pin direct installation of PCB board.
- 10. High reliability and long life design, continuous working time MTBF3.5 million hours (3500000Hrs)
Package Includes:
1 x 5V to 12V 2W 167mA DC to DC Isolation Voltage 1500VDC Power Module Converter B0512S-2WR3
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 172.28 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

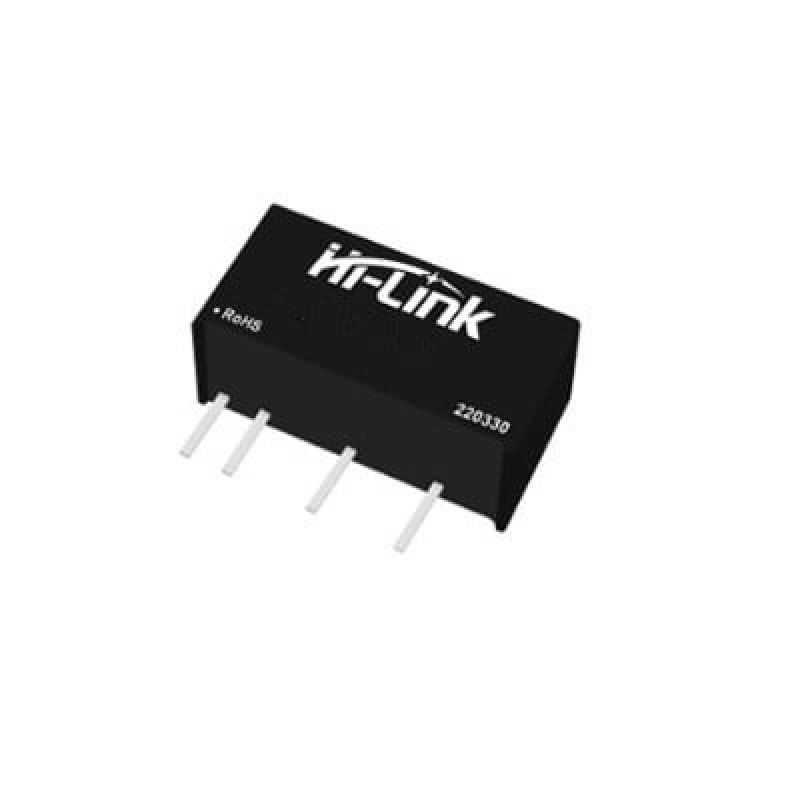

5V to 12V 2W 167mA DC to DC Isolation Voltage 1500VDC Power Module Converter B0512S-2WR3
- Product Code: EC-18596
- Availability: Out Of Stock
-
Rs.131.00
- (Excluding 18% GST)
