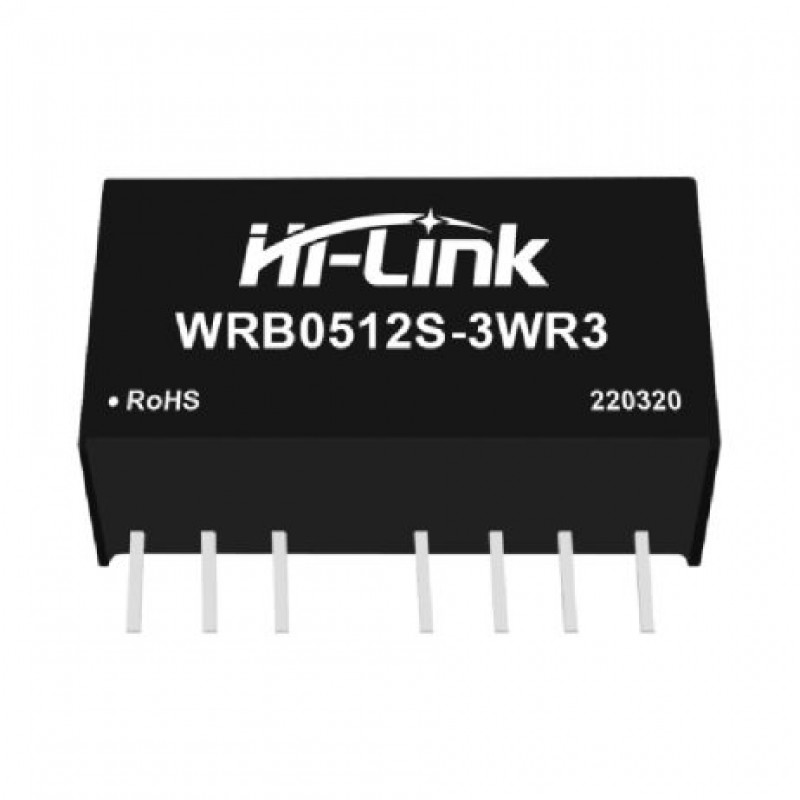

The WRB0512S-3WR3 is a DC-to-DC power module converter that efficiently transforms 5V to 12V with a 3W power capacity and 250mA current output. Notably, it incorporates isolation technology with a 1500VDC rating, enhancing safety. Compact and reliable, this module is ideal for applications requiring voltage conversion in electronic circuits, ensuring a stable and isolated power supply.
Feature:
- Easy to sue
- Easy to connect
- Good quality product
Specifications:
- Input Voltage: 5V (4.5~9)
- Output Voltage: 12V
- Output Current: 250 mA
- Power: 3W
- Wide input voltage range: 2:1, isolated regulated output 3W
- Isolation voltage: 1500VDC
- Transfer efficiency: up to 83%
- Output short-circuit protection: continuous short-circuit protection, automatic recovery
- The voltage of the input power supply is relatively stable. Voltage variation range10%Vin
- Operating temperature range-40C~+85C
- Small SIP package
- International standard pin direct installation of PCB board.
Package Includes:
1 x 5V to 12V 3W 250mA DC to DC Isolation Voltage 1500VDC Power Module Converter WRB0512S-3WR3
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
5V to 12V 3W 250mA DC to DC Isolation Voltage 1500VDC Power Module Converter WRB0512S-3WR3
- Product Code: EC-18538
- Availability: Out Of Stock
-
Rs.351.00
- (Excluding 18% GST)
