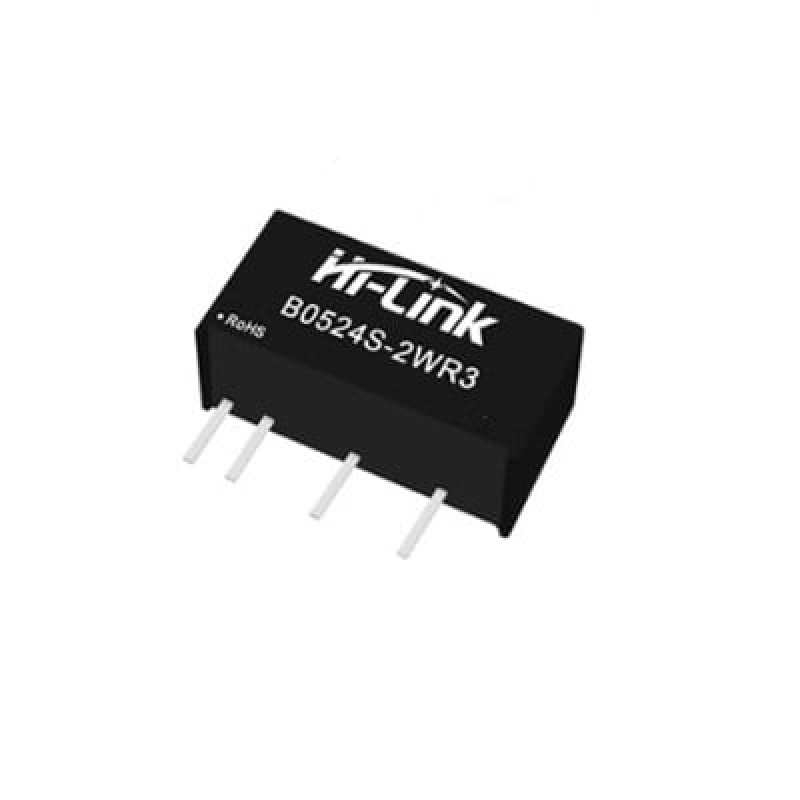

The B0524S-2WR3 is a highly efficient DC-to-DC power module converter, designed to seamlessly transform a 5V input voltage to a stable 24V output. With a power rating of 2 watts and an output current of 83mA, this converter is engineered to meet the demands of various electronic applications where a precise and reliable power supply is essential.
Features:
- Easy to use
- Easy to connect
- Good quality product
Specifications:
- Input Voltage: 5VDC
- Output Voltage: 24V
- Current: 83mA
- Characteristic: Constant voltage input, isolated non stabilized voltage single output,2W
- Isolation voltage: 1500VDC
- Low no-load power consumption: 0.025W(Typ.)
- Transfer efficiency: 90%
- Output short-circuit protection: continuous short circuit protection, automatic recovery
- The voltage of the input power supply is relatively stable.Voltage variation range10%Vin
- Operating temperature range-40C~+85C
- Small SIP package
- International standard pindirect installation of PCB board.
- High reliability and long life design,continuous working time MTBF3.5 million hours (3500000Hrs)
Package Includes:
1 x 5V to 24V 2W 83mA DC to DC Isolation Voltage 1500VDC Power Module Converter B0524S-2WR3
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
5V to 24V 2W 83mA DC to DC Isolation Voltage 1500VDC Power Module Converter B0524S-2WR3
- Product Code: EC-18525
- Availability: Out Of Stock
-
Rs.149.00
- (Excluding 18% GST)
