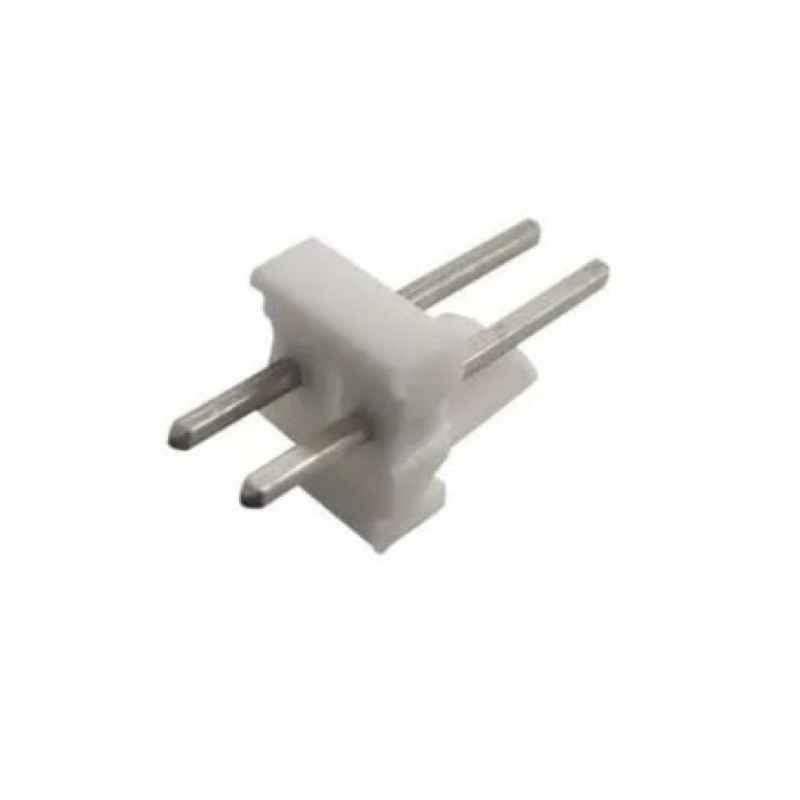

The 640456-2 from TE Connectivity is a 2.54mm pitch, single row 2 position MTA-100 friction lock unshrouded header. It is a polarized, notched, .025 straight square post for use withMTA.100 connector assemblies.
Features:
- The current rating is 5A
- Operating temperature range from -55C to 105C
- Copper alloy with tin-plated contacts
- Polyester GF housing
- UL, CSA approved
Specifications:
- Connector Systems: Wire-to-Board
- Pitch Spacing: 2.54mm
- No. of Rows: 1Rows
- No. of Contacts: 2Contacts
- Contact Termination Type: Through Hole Straight
- Product Range: MTA-100
- Connector Shroud: Partially Shrouded
- Contact Material: Copper Alloy
- Contact Plating: Tin Plated Contacts
Package Includes:
1 x 640456-2-HEADER, VERTICAL, 0.1, 2WAY
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
640456-2-HEADER, VERTICAL, 0.1, 2WAY Pack of 2
- Product Code: EC-21761
- Availability: Out Of Stock
-
Rs.53.00
- (Excluding 18% GST)
