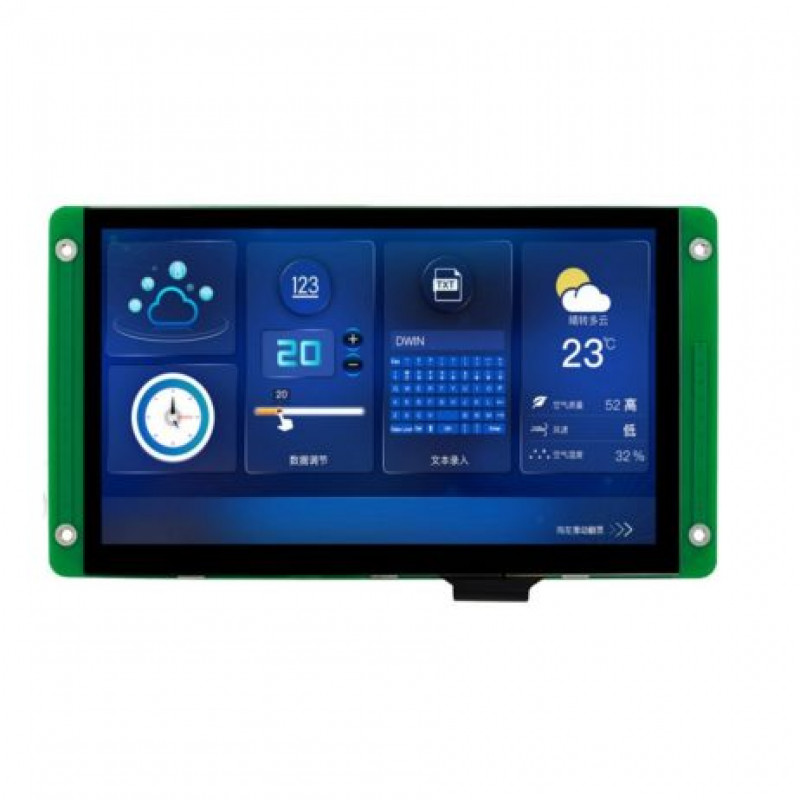

7.0 Inch LCD Tactus Screen Model: DMG10600T070_01WTC (Industrial Grade) is developed by DWIN. Based on T5L ASIC 7.0 Inch,1024xRGBx600,16.7M Colors, IPS Touch Module and T5L2, running DGUS II system, industrial grade, Its a good product to buy!
LCD screens with touch functionality are very common in many devices such as smartphones, tablets, laptops, and monitors. They work by using a layer of sensors that detect the location of a touch on the screen, and then transmitting that information to the devices processor to interpret and respond accordingly.

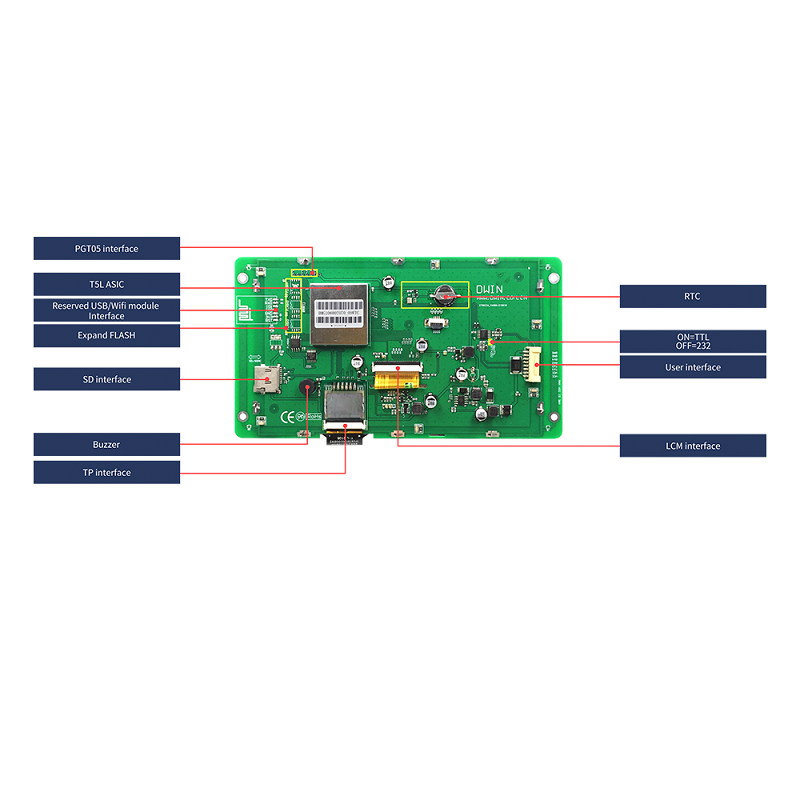

Features:
- Capacitive touch screen
- TTL interface with 8Pin_2.0mm connection wire;
- Download via SD card or on-line serial port;
- Software DWIN DGUS V7.6 GUIs Development.do not need skillful technology;
- Development System: DGUS/TA(Instruction set);
- IPS View Angle:85/85/85/85(L/R/U/D);
- With GUI&OS dual-core, GUI with different controls, DWIN OS kernel open to the second-development, via DWIN OS language or KELI C51.
- Conformal coating
For more info., please refer to the datasheet.
Package Includes:
1 x 7.0 Inch LCD Tactus Screen Model: DMG10600T070_01WTC (Industrial Grade)
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
7.0 Inch LCD Tactus Screen Model: DMG10600T070_01WTC (Industrial Grade)
- Product Code: EC-21018
- Availability: Out Of Stock
-
Rs.3959.00
- (Excluding 18% GST)
