The 74HC14D is a Hex Inverter with Schmitt-trigger inputs. This device features reduced input threshold levels to allow interfacing with TTL logic levels. Inputs also include clamp diodes, this enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt-trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.
Applications:
- Wave and pulse shapers
- Astable multivibrators
- Monostable multivibrators
Features:
- Complies with JEDEC standard no. 7A
- Low-power dissipation
- ESD protection HBM JESD22-A114F exceeds 2000V, MM JESD22-A115-A exceeds 200V
Package Includes:
1 x 74HC14D,653 NEXPERIA Logic IC, Inverter, Hex, 1 Input, 14 Pins, SOIC, 74HC14
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

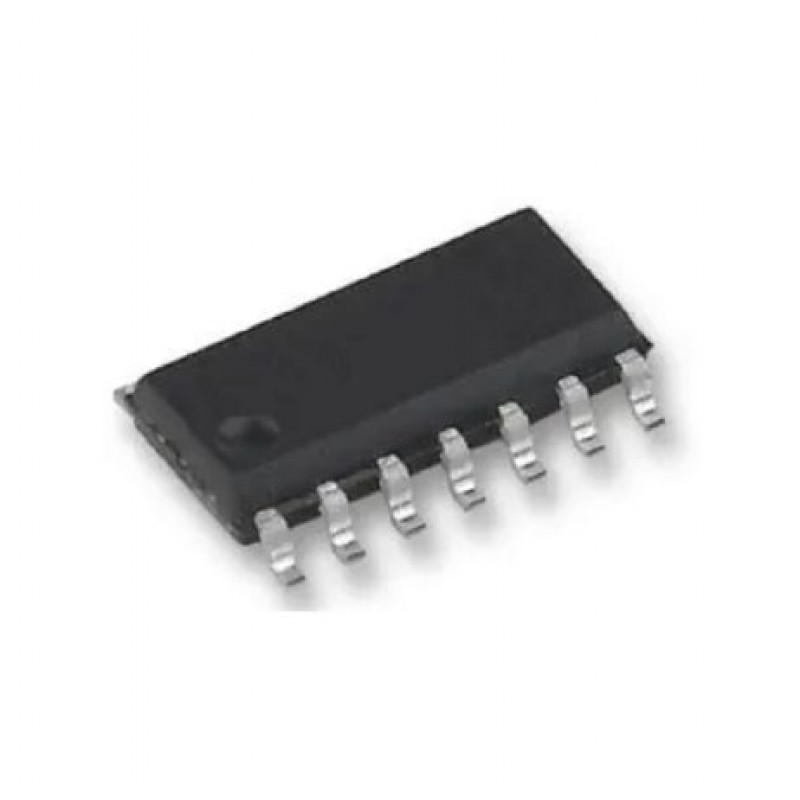

74HC14D,653 NEXPERIA Logic IC, Inverter, Hex, 1 Inputs, 14 Pins, SOIC, 74HC14
- Product Code: EC-18957
- Availability: 517
-
Rs.31.00
- (Excluding 18% GST)
