The 74HC151D is an 8-bit Multiplexer with eight binary inputs (I0 to I7), three select inputs (S0 to S2) and an enable input (E\).One of the eight binary inputs is selected by the select inputs and routed to the complementary outputs (Y and Y\).A high on E\ forces the output Y low and output Y\ high.Inputs also include clamp diodes that enable the use of current-limiting resistors to interface inputs to voltages in excess of VCC.

Applications:

1. Industrial
2. Consumer Electronics
3. Computers & Computer Peripherals

Features:

1. Low power dissipation
2. Non-inverting data path
3. CMOS Input levels
4. Complies with JEDEC standard No.7A

Package Includes:

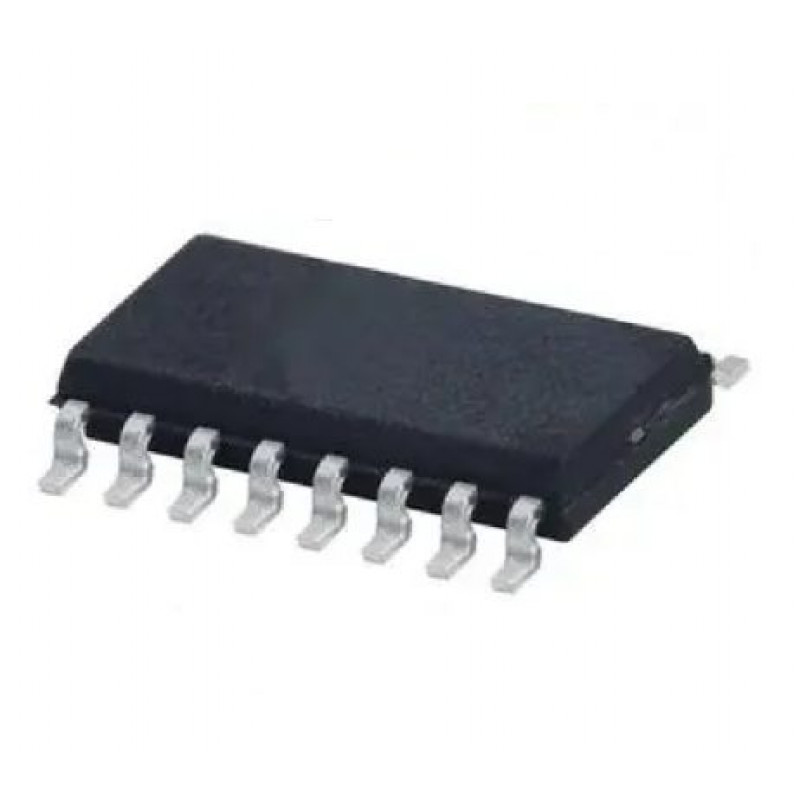

1 x 74HC151D,653-NEXPERIA-Multiplexer, HC Family, 1 Gate, 8 Input, 2 Output, 5.2 mA, 2 V to 6 V, SOIC-16
