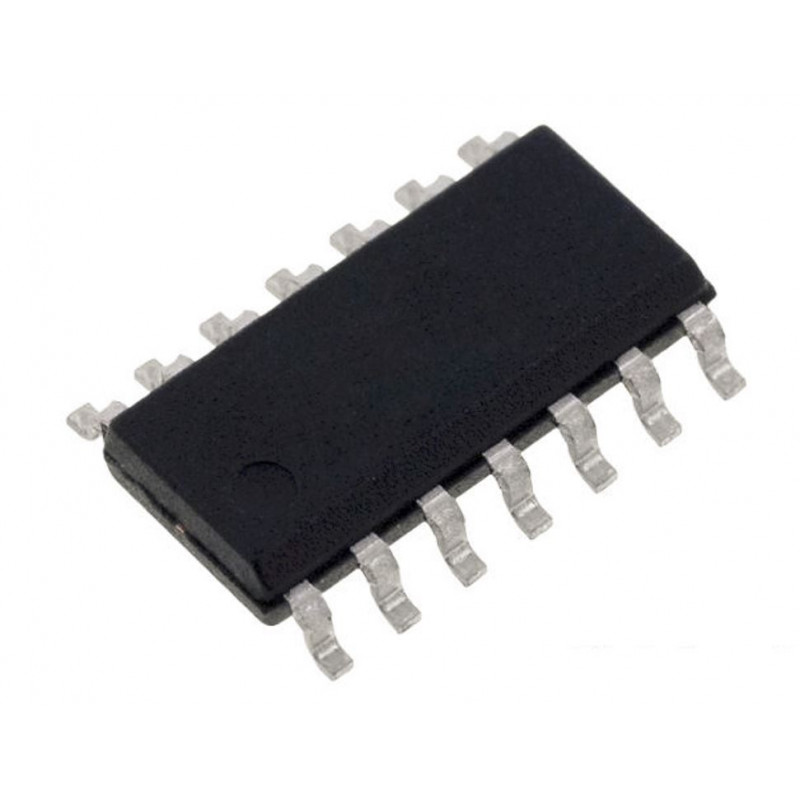

  • 74LS06 IC - (SMD Package) - Hex Inverter -Buffer IC (7406 IC)

The 74LS06 SMD device contains hex inverted buffers with open-collector. It performs the Boolean function Y=A in positive Logic:-

High Output Voltage (30 V)

High Speed ( tPD = 8.5 ns typical)

Low Power Dissipation (PD = 18 mW per Gate)

Specification:-

Symbol Parameter Value Unit
VCC Supply Voltage 7 V
VIN Input Voltage 5.5 V
VOUT Output Voltage 30 V
TSTG Storage Temperature Range -65 to +150 °C


Related Document:-

 74LS06 SMD Data Sheet


Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

74LS06 IC - (SMD Package) - Hex Inverter -Buffer IC (7406 IC)

  • Product Code: EC-2508
  • Availability: 355
  • Rs.23.00
  • Rs.20.00
