UAV-R22-1(UART)Obstacle avoidance radar is a lightweight mmWave radar sensor that is intelligently developed and produced by Microbrain Intelligent. It has high measurement accuracy, small body shape, high sensitivity, light weight, easy integration, and stable performance. This product uses a fan -shaped 77GHz electromagnetic wave and processed the echo signal to determine whether there are obstacles ahead, the relative distance, speed, orientation corner of the feedback obstacle to the radar, and guide the radar carrier such as drones to avoid obstacles, Ensure their safe work.
Features:
- 2T4R MIMO array antenna design,15azimuth FOV,High angular resolution and angular detection accuracy
- Operating frequency is 77GHz~81GHzsensitive to moving target, high range detection accuracy
- Effective detection distance 27m
- Support UART protocol outputDefault baud rate115200
- Single chip DSP+ARM dual-core architecture signal processing and control unit , radar data processing, target detection, target tracking and other algorithms are runned on the internal high-speed digital signal processor
Package Includes:
1 x 77-81GHz Obstacle avoidance radar sensor UAV-R22-1 (UART)
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

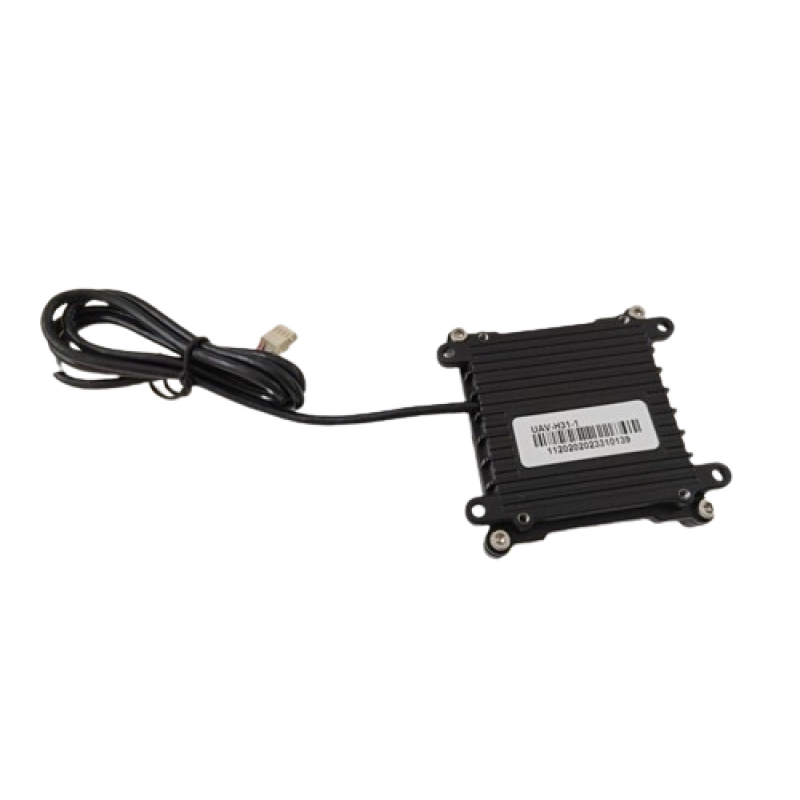

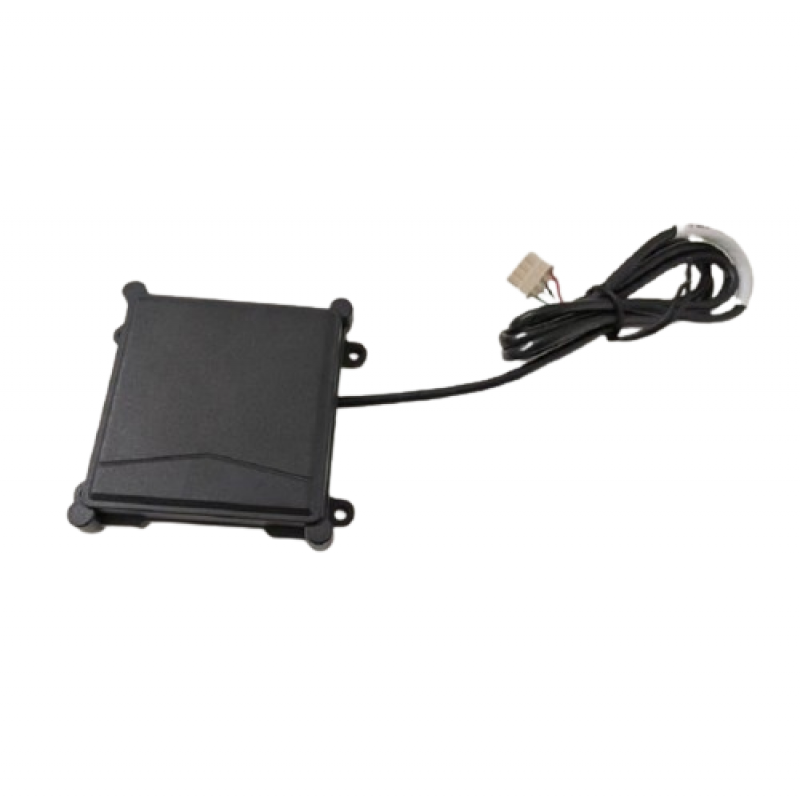

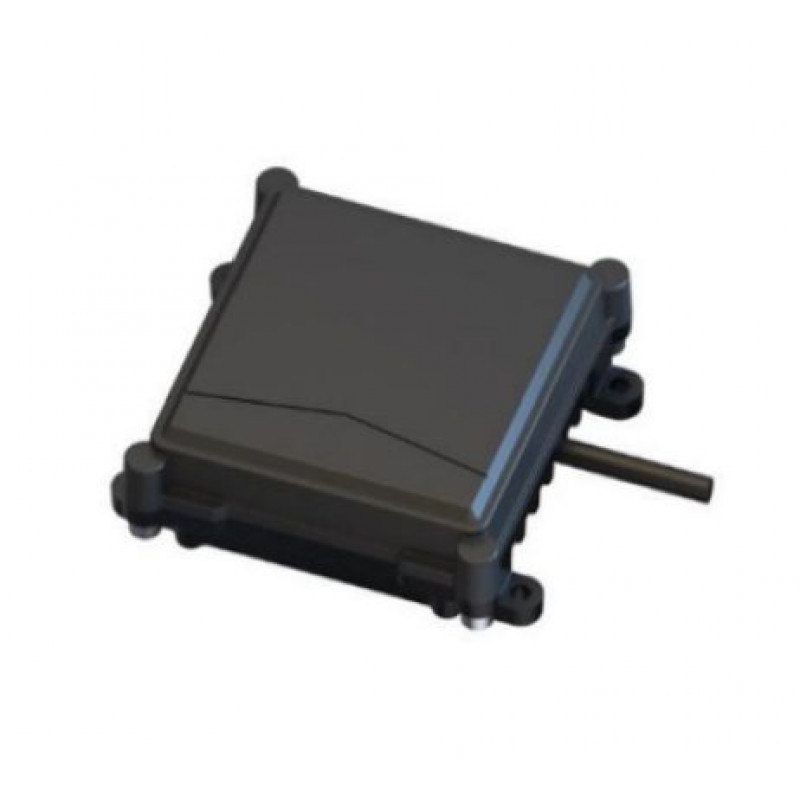

77-81GHz Obstacle avoidance radar sensor UAV-R22-1 (UART)
- Product Code: EC-28216
- Availability: Out Of Stock
-
Rs.16154.00
- (Excluding 18% GST)
