This is a 12V 8-Channel Relay interface board, Be able to control various appliances and other equipment with large current. It can be controlled directly by Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic).
Features:
- Using high-current relay, AC250V 10A DC30V 10A.
- Contact some independent wiring, safe and reliable.
- The standard interface can be extended to a variety of development boards.
- With fixed screw holes for easy installation.
- Suitable for a variety of platforms such as 8051/AVR/AVR/ARM.
Package Includes:
1 x 8 Channel 12V Relay Module
Specifications :-
| Trigger Voltage (VDC) | 12 |
| Trigger Current (mA) | 20 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Operating Temperature (C) | -40 to 85 |
| Opt. Relative Humidity(RH) | 20% 85% |
| Storage condition () | 65 to 125 |
| Length (mm) | 138 |
| Width (mm) | 43 |
| Height (mm) | 17 |
| Weight (gm) | 98 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 400.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

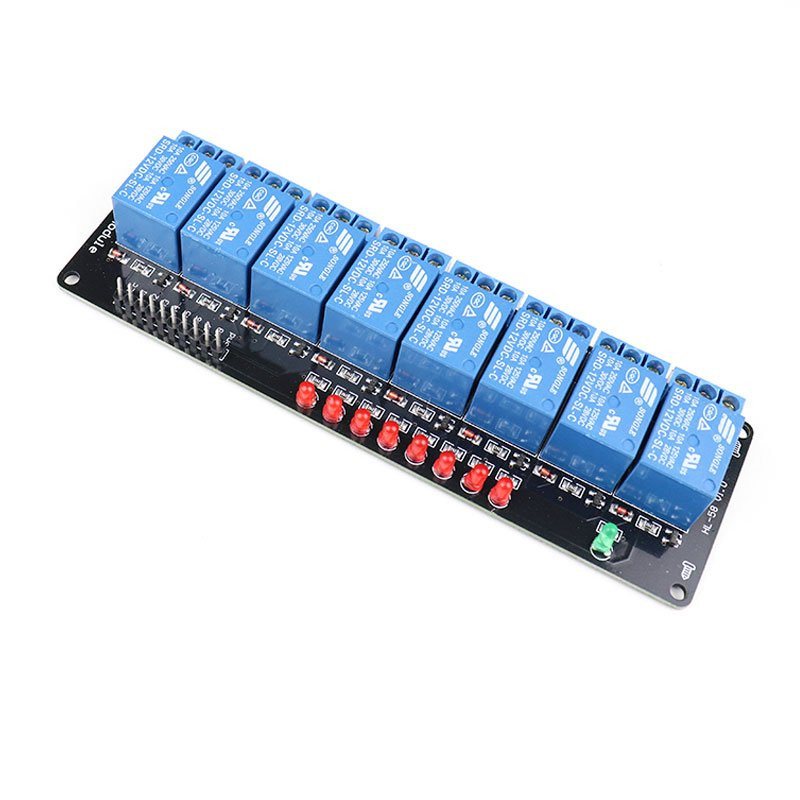

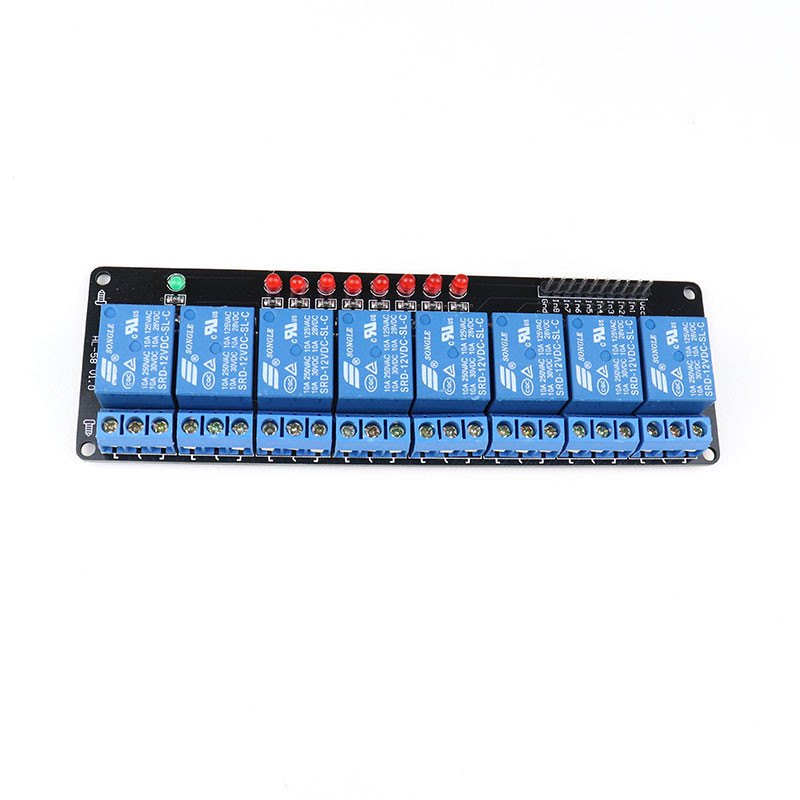

8 Channel 12V Relay Module
- Product Code: EC-1157
- Availability: 14
-
Rs.319.00
- (Excluding 18% GST)
