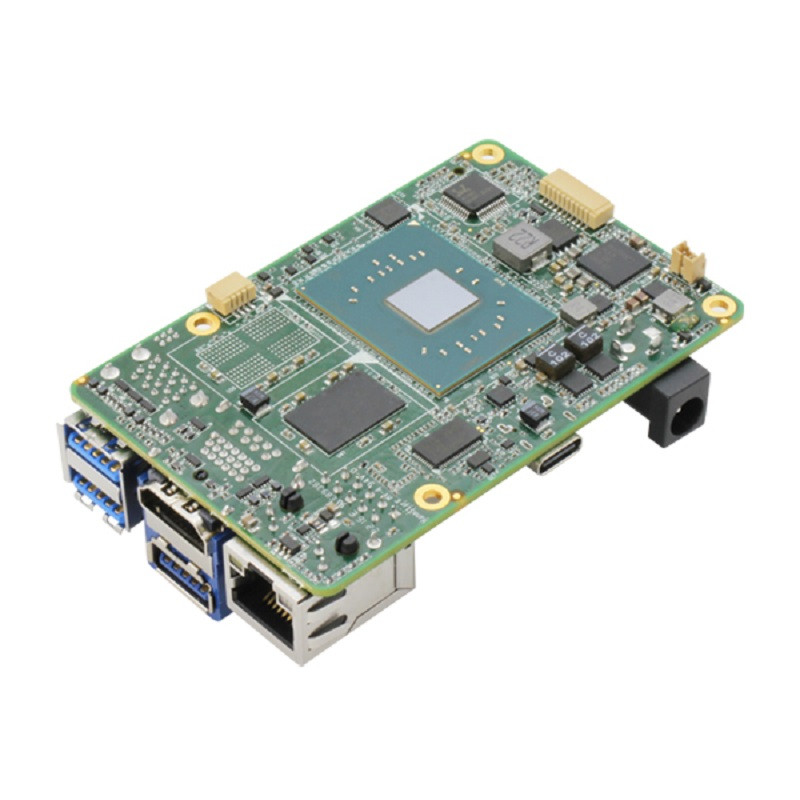

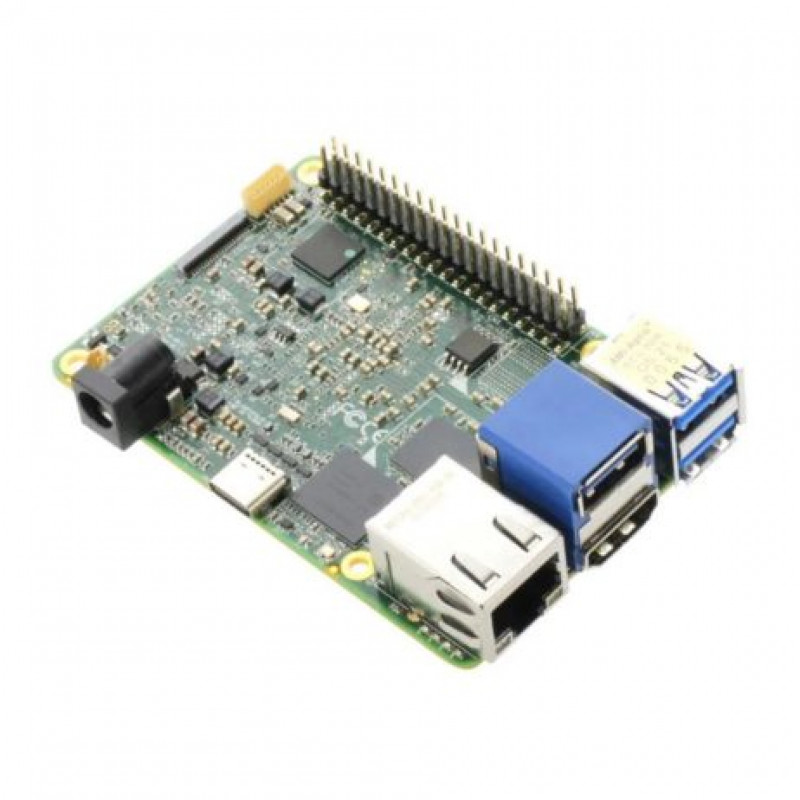

This is AAEON UP 4000 Single Board Computer with Intel Celeron N3350, 4GB RAM, 32GB eMMC, Rev A1.0. AAEON UP 4000 Developer Board is a credit card-sized successor to the previous UP Boards series. The 4000 Developer Board implements a more efficient and versatile platform for automation, robotics, and retail services. The AAEON UP 4000 features 12V standard industrial power input, increased memory options, and a wide range of IO options such as multiple video output ports, audio line in/out, faster USB ports, and other rich I/Os. The board achieves high performance with lower power consumption in a form factor designed to fit anywhere.

Note: Images are for reference only. See product specifications, datasheet, and manual in attachments for more technical details of the product.

Features:

1. Graphics: Intel Gen 9 HD, supporting 4K Codec Decode and Encode for HEVC4, H.264, VP8
2. Ethernet: Gb Ethernet (full speed) RJ-45 x 1
3. Video coding: DX11.1/12, H.264 BP/MP/HP, OpenCL 1.2, OpenGL 4.2, VP8
4. Operating system support: Microsoft Windows 10 (full), Windows IOT Core, Yocto project 3.1 Kernel 5.4, Ubuntu 20.04 Kernel 5.4
5. USB: USB 3.2 Gen 1 (Type A) x 3 | USB 2.0 pin header (10 pins in total) x 2 | 1x USB3.0 OTG via USB type C
6. Expansion: 40 pin GPIO x1 || via carrier board: M.2 2230/2242/2280 x1 | M.2 3052 x1

Package Includes:

1 x AAEON UP 4000 Single Board Computer with Intel Celeron N3350, 4GB RAM, 32GB eMMC, Rev A1.0

1 x Passive Heatsink
