Conins Acrylcoat is a high quality flexible, transparent, ECO FRIENDLY Acrylic Conformal coating for LED Lighting. Conins Acrylcoat is approved by C DOT and it conforms to MIL Standard: MIL – I - 46058C Type AR. Conins Acrylcoat ensures protection for LED Lighting and components against moisture, Oxidation, fungus etc., in humid conditions. It is easy to apply and fast drying and has good flexibility. Servicing is easy as the coating is readily SOLDERABLE. Acrylcoat has high dielectric strength ad it provides protection against high voltage arcing and corona shorts.

• 100% Ozone Friendly
• Economical in use.
• Good Dielectric strength
• Excellent adhesion to all surfaces
• Easily SOLDERABLE , Servicing is easy.
• Prevents fungus growth
• Protects component leads from corrosion
• Contains UV Tracer for easy inspection
• Light Intensity will remain same after coating

Aerosol:-

Clean the surface thoroughly. Spray Acrylcoat from a distance of 25cms. from the surface evenly. Allow the PCBs to dry in Air. Better results can be obtained if cured in a ventilated oven @ 60°C for 1 hr. The boards may be heated to 55 to 60°C just before spraying. Shake the Aerosol Bottle Well Before Each Application.

Lacquer:-

Acrylcoat Lacquer can be applied by Brushing, Dipping or by Spraying. This can be used in a Dip Coating Machine or can be applied by a dispenser.

Removal:-

The coating can be removed using Conins Thinner AR.

Storage:-

Store in a cool dry place below 40°C. Keep away from naked flame or flammable material. The contents are highly inflammable. Destroy the container after use

Specifications:-

• Appearance : Clear, Transparant, Smooth & Glossy
• Drying Time : Touch Dry:< 20 mts. in air. Curing @ 60o C for 30 mts.recommended.
• Cure Time : 24 hrs. Optimum Properties: 7 days..
• Working Temp. : 50 C to 1200 C
• Di - electric strength : 25 kV/mm.
• CTI Value (Comparative Tracking Index) : 600
• Viscosity of Lacquer : 60 secs. Zahn cup G1 @ 30 0 C
• Flammability Self extinguishing (coating) Liquid : flammable
• Insulation Resistance : 2.5 x 10 12 Ohm/cm
• Dielectric Constant : 2.5
• Dissipation factor : 0.01
• Flash point : < 0 deg.C.
• Model : LGT-SPL-60
• Made in : India

Package Includes:-

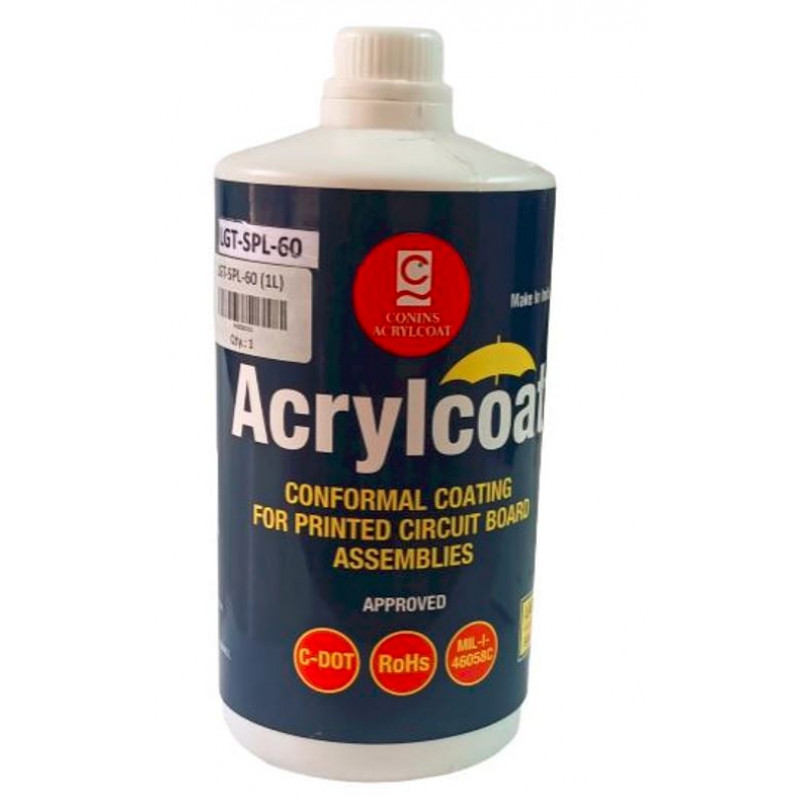

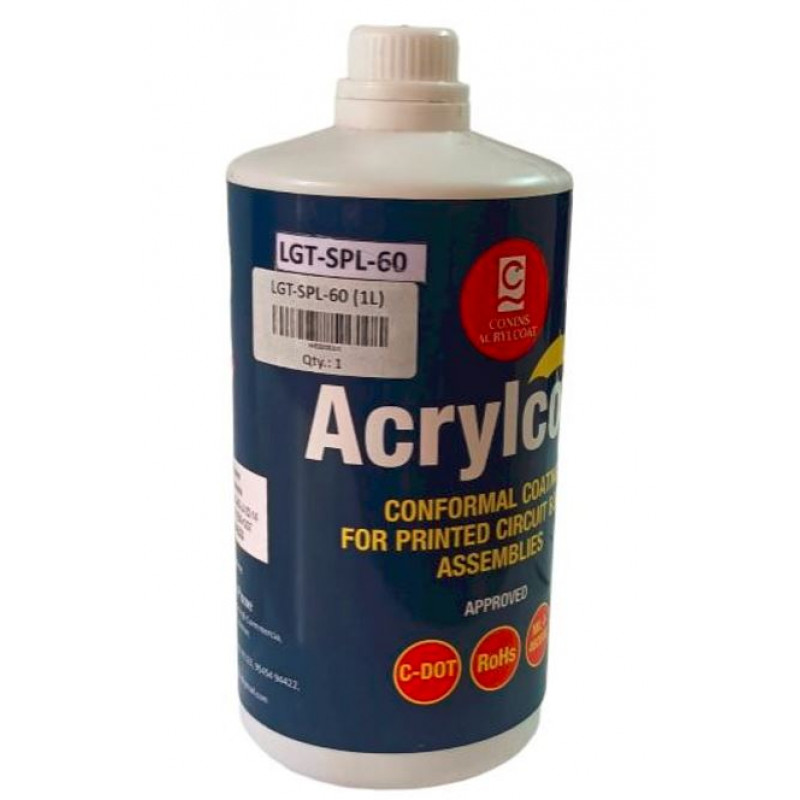

1 x Acrylcoat LGT-SPL-60 Conformal Coating for PCB Assemblies Solderable - 1 Litre
