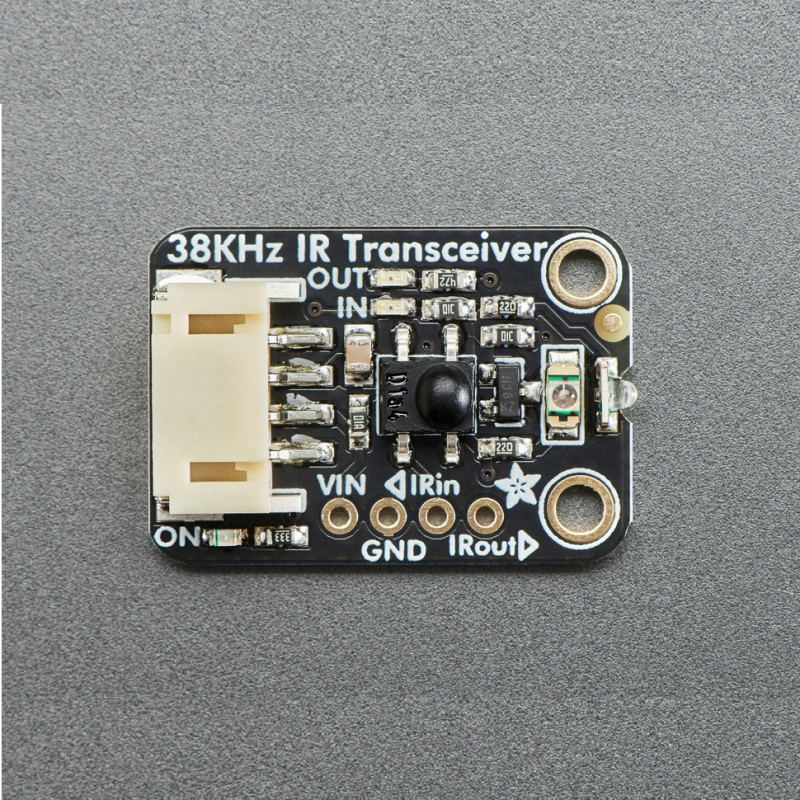

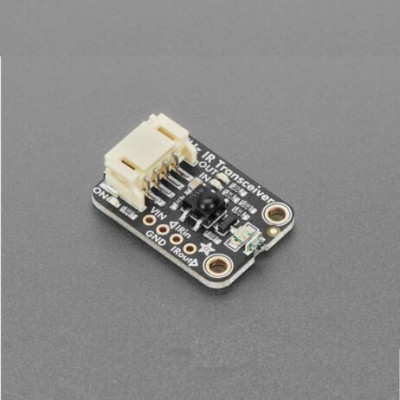

Weve got ahigh-powered infrared emitter board, and asuper-sensitive infrared remote receiver board but why buy two boards when you can pick up one that does both? This board is theAdafruit Infrared Tranceiver breakout, which can transmit and receiver940nm remote control data in one handy solder-free package.
Please Note:to make this board easy to use, we have both solder-able breakout pads and also a JST PH 4-pin cable. We often use JST PH cables for I2C but this boarddoes not use I2C the white wire is data from a microcontroller to be emitted over the IR LED, the green wire is demodulated IR remote signal data to a microcontroller. The black wire is ground, red wire is 3V~5V power and logic level.
Features:
- Easy plug-and-play integration
- Solder-free connections
- Frequency: 38KHz
- Small and lightweight
- Receives and demodulates IR signals
- Suitable for remote control applications
- Compatible with standard IR protocols
Package Includes:
1 x Adafruit Infrared IR Remote Transceiver STEMMA JST PH 2mm 940nm Emitter + 38KHz Receiver
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Adafruit Infrared IR Remote Transceiver STEMMA JST PH 2mm 940nm Emitter + 38KHz Receiver
- Product Code: EC-30307
- Availability: Out Of Stock
-
Rs.710.00
- (Excluding 18% GST)
