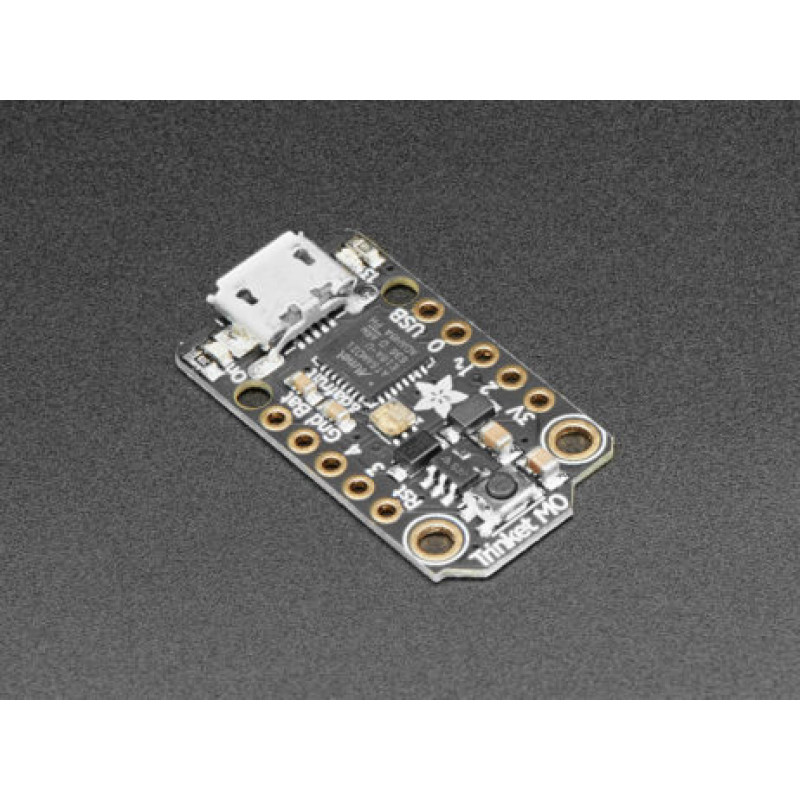

The Adafruit Trinket M0 may be small, but do not be fooled by its size! Its a tiny microcontroller board, built around the Atmel ATSAMD21, a little chip with a lot of power. We wanted to design a microcontroller board that was small enough to fit into any project, and low-cost enough to use without hesitation. Perfect for when you dont want to give up your expensive dev-board and you arent willing to take apart the project you worked so hard to design. Its our lowest-cost CircuitPython programmable board!

Weve taken the same form factor we used for the original ATtiny85-based Trinket and given it an upgrade. The Trinket M0 has swapped out the lightweight ATtiny85 for an ATSAMD21E18 powerhouse. Its just as small, and its easier to use, so you can do more.

The most exciting part of the Trinket M0 is that while you can use it with the Arduino IDE, we are shipping it with CircuitPython on board. When you plug it in, it will show up as a very small disk drive with main.py on it. Edit main.py with your favorite text editor to build your project using Python, the most popular programming language. No installs, IDE, or compiler is needed, so you can use it on any computer, even ChromeBooks or computers you cant install software on. When youre done, unplug the Trinket M0 and your code will go with you.

Features:

1. Same size, form factor, and pinout as a classic Trinket
2. Updating ATtiny85 8-bit AVR for ATSAMD21E18 32-bit Cortex M0+
3. 256KB Flash 32x as much as 8 KB on ATtiny85
4. 32 KB RAM 64x as much as 512 bytes on ATtiny85
5. 48 MHz 32-bit processor 6x as fast as ATtiny85 (not even taking into account 32-bit speedups)
6. Native USB supported by every OS can be used in Arduino or CircuitPython as USB serial console, Keyboard/Mouse HID, and even a little disk drive for storing Python scripts. (ATtiny85 does not have a native USB)
7. Can be used withArduino IDEorCircuitPython
8. Built-in green ON LED
9. Built-in red pin #13 LED

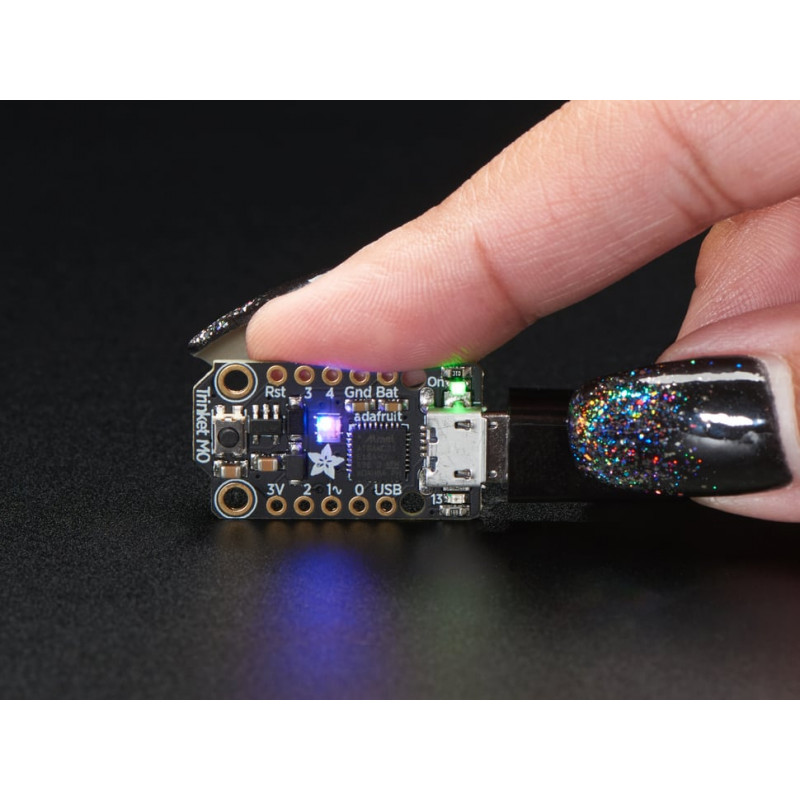

10. Built-in RGB DotStar LED
11. All 5 GPIO pins are available and are not shared with USB so you can use them for whatever you like!
12. SameReset switchfor starting your project code over
13. Power with either USB or external output (such as a battery) itll automatically switch over
14. Mounting holes! Yeah!
15. Really really small
16. UART, SPI, and I2C hardware support
17. Native USB support using the SAMD21s USB hardware
18. USB bootloader with a double-tap reset button for entering bootloader mode
19. CircuitPython and Arduino IDE compatible

Package Includes:

1 x Adafruit Trinket M0 for use with CircuitPython & Arduino IDE
