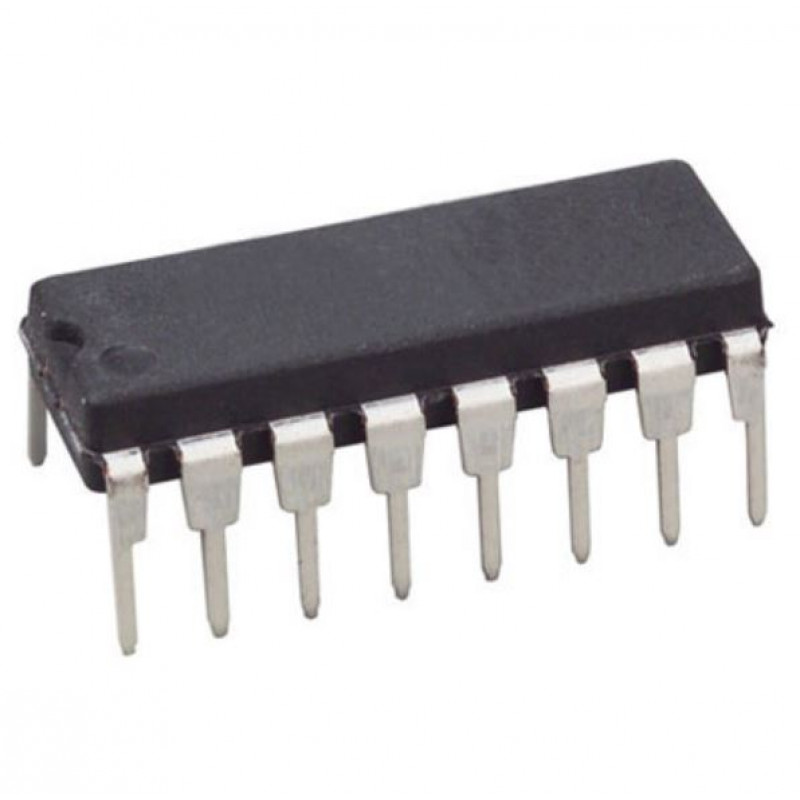

  • MC1408 8-Bit Multiplying Digital to Analog D/A Converter (DAC) IC DIP-16 Package

The MC1408 series of 8-bit monolithic digital-to-analog converters provide high-speed performance with low cost. They are designed for use where the output current is a linear product of an 8-bit digital word and an analog reference voltage.


Features:-

• Fast settling time — 70ns (typ)

• Relative accuracy ±0.19% (max error)

• Non-inverting digital inputs are TTL and CMOS compatible

• High-speed multiplying rate 4.0mA/µs (input slew)

• Output voltage swing +0.5V to –5.0V

• Standard supply voltages +5.0V and –5.0V to –15V

• Military qualifications pending


Specifications:-

Symbol Parameters Rating Units
VCC Positive power supply voltage 5.5 V
VEE Negative power supply voltage  –16.5 V
V5-V12 Digital input voltage 0 to VCC V
VO Applied output voltage –5.2 to +18 V
I14 Reference current 5 m A
V14,V15 Reference amplifier inputs VEE to VCC
PD Maximum power dissipation, TA = 25°C (still-air)

F package 1190 m W
N package 1450 m W
D package 1080 m W
TSOLD Lead soldering temperature (10 sec) 300 °C
TA Operating temperature range 300 °C
MC1408 0 to +75  °C
TSTG Storage temperature range -65 to +150 °C
