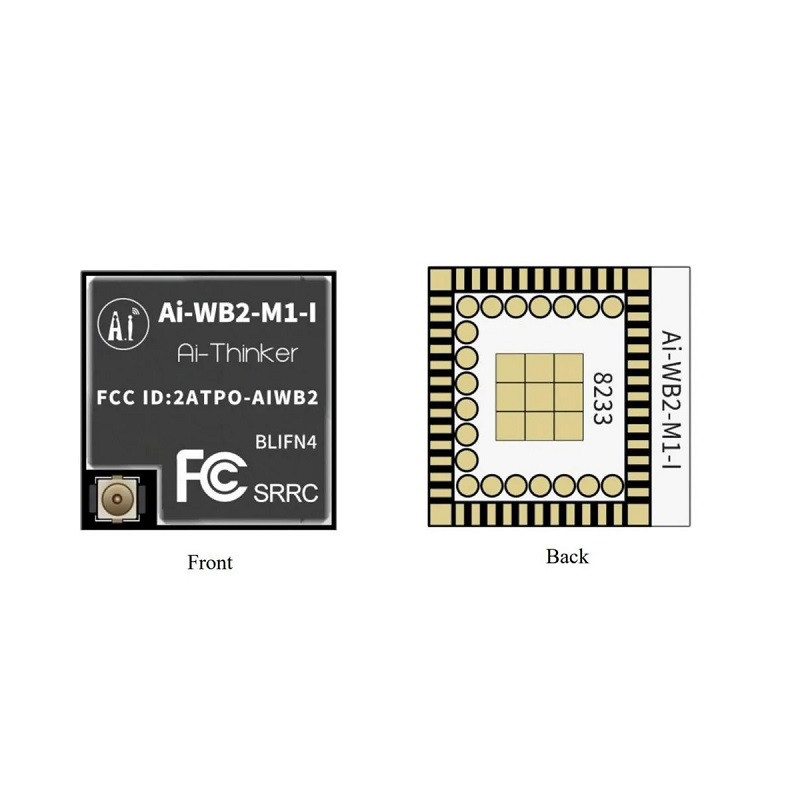

Ai-WB2-M1-I is a Wi-Fi&BT module developed by Shenzhen Ai-Thinker Technology Co., LTD. The module is equipped with a BL602 chip as the core processor and supports Wi-Fi 802.11b/ g/n protocol and BLE 5.0 protocol. The BL602 chip has a low-power 32-bit RISC CPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR, and GPIO, etc. It can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, and other fields.

Features:

1. Power supply Support voltage is 2.7V~3.6Vsupply current500mA
2. Storage temperature: -40 ~ 125, < 90%RH
3. Antenna connector: IPEX
4. Support Station + BLE modeStation + SoftAP + BLE mode
5. Support 32-bit RISC CPU276KB RAM
6. Secure start-up supports mirroring with ECC-256 signature
7. Support QSPI/SPI Flash On-The-Fly AES Decryption, support AES 128 CTR mode
8. Support AES 128/192/256-bit encryption engine
9. Support SHA-1/224/256
10. Support true Random number generator (TRNG)
11. Public key Accelerator (PKA), support a large number of basic operations, and software provides
    a signature, verification, and other application program interface
12. Support 20MHz bandwidth and Max rate is 72.2 Mbps
13. Bluetooth BLE 5.0, Bluetooth Mesh
14. Support SDIO SPI UART I2C IR remote PWM ADC DAC PIR GPIO etc
15. Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
16. Support a variety of sleep modes, deep sleep current 12A
17. Universal AT instruction for a quick start
18. Support secondary development, integrated Windows, and Linux development environment

Package Includes:

1 x Ai-Thinker Ai-WB2-M1-I Module
