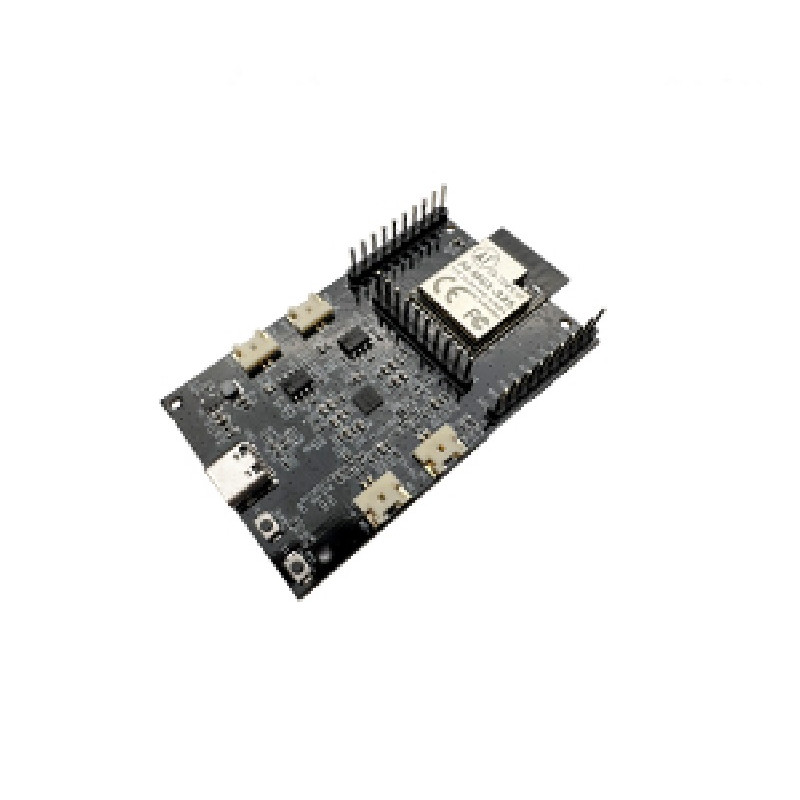

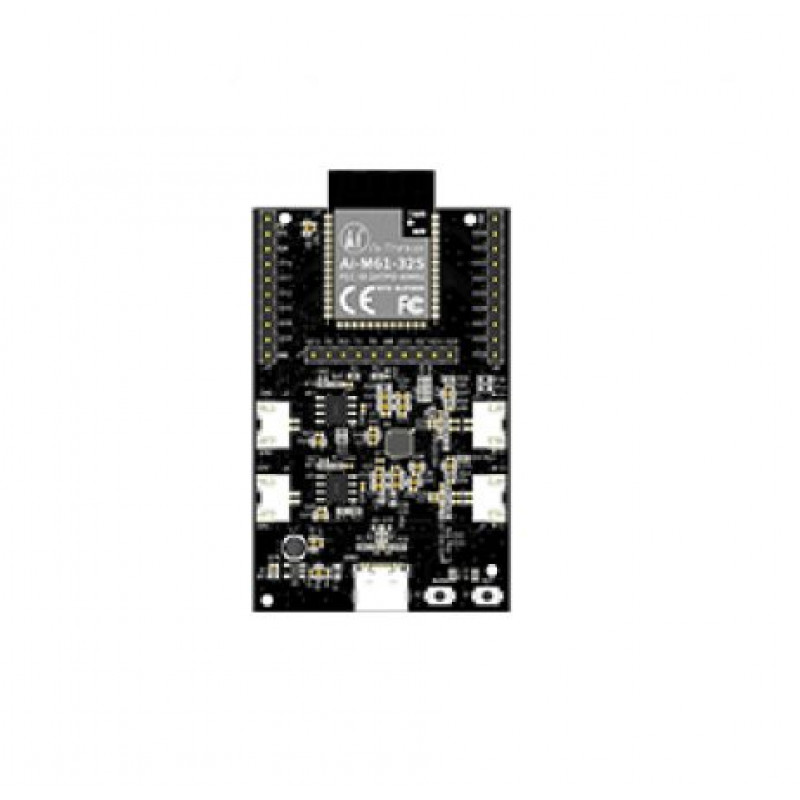

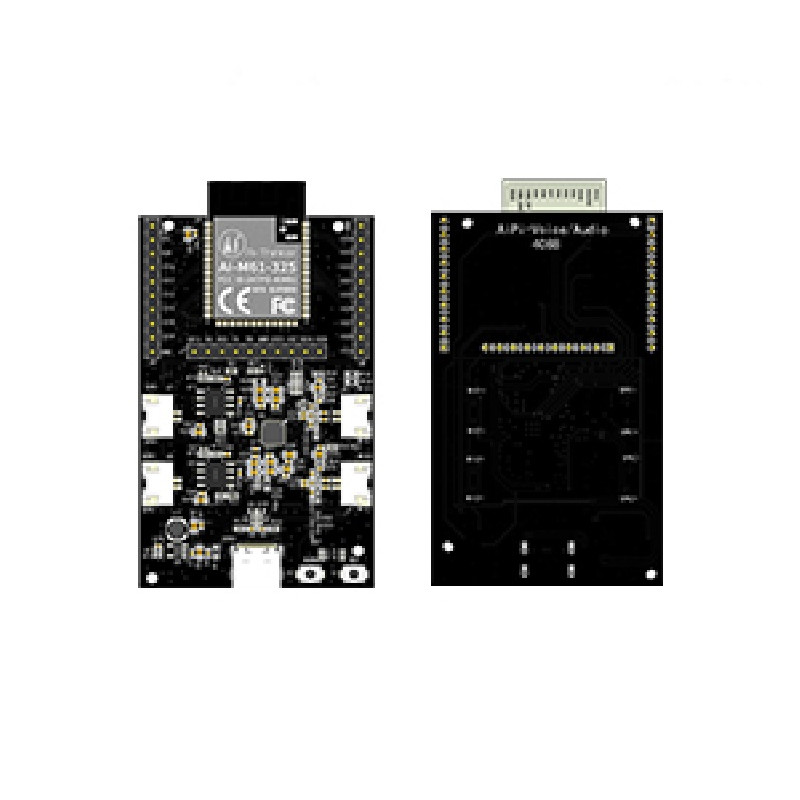

AiPi-Audio is an audio driver development board specially designed by the Ai-Thinker open-source team for Ai-M61-32S. It is equipped with a BL618 chip and has an external ES8388 audio codec. It can design solutions such as walkie-talkies or combine them with other voice platforms. It is an audio driver development board specially designed by the Anxinke team for Ai-M61-32S. It is equipped with a BL618 chip and an external ES8388 audio codec. It can design solutions such as walkie-talkies or combine them with other voice platforms to achieve voice recognition. The Ai-M61-32S module equipped has rich peripheral interfaces, including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc.
Features:
- Model: AiPi-Audio
- Module: Ai-M61-32S
- External ES8388 audio decoding chip
- Support single and dual input and output
- Support 8~48KHz two-channel audio
- Supports 16~32-bit depth audio
- Default two-way 2W 8ohm speakers
- Default dual-channel -65 dBm (sensitivity) microphone
- TypeC USB powered
- Length: 68mm
- Width: 43mm
- Height: 13mm

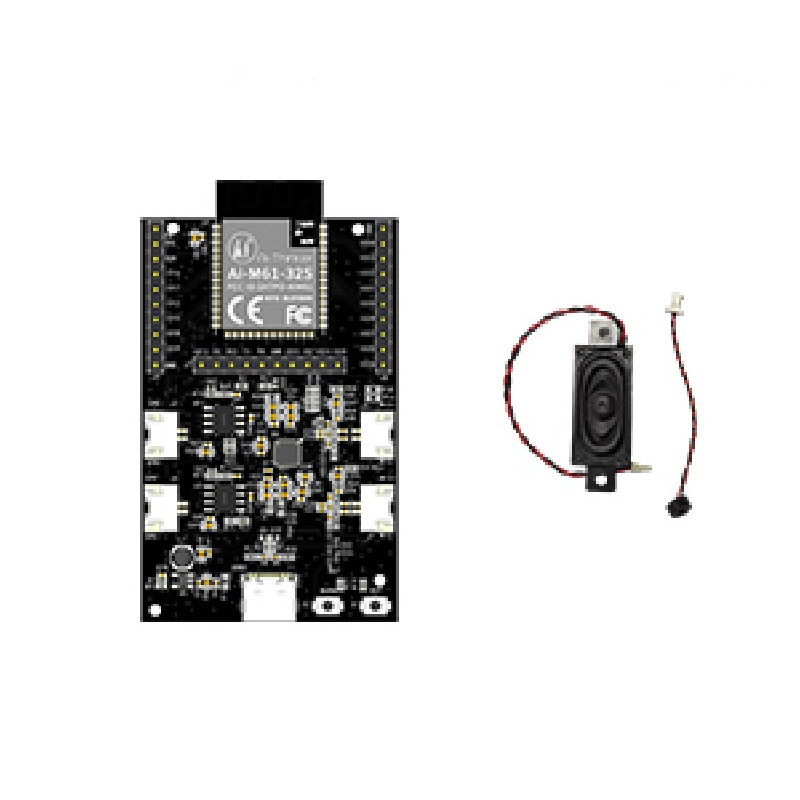

Package Includes:
1 x Ai Thinker AiPi-Audio
2 x mic
2 x speaker
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Ai Thinker AiPi-Audio
- Product Code: EC-29254
- Availability: Out Of Stock
-
Rs.719.00
- (Excluding 18% GST)
