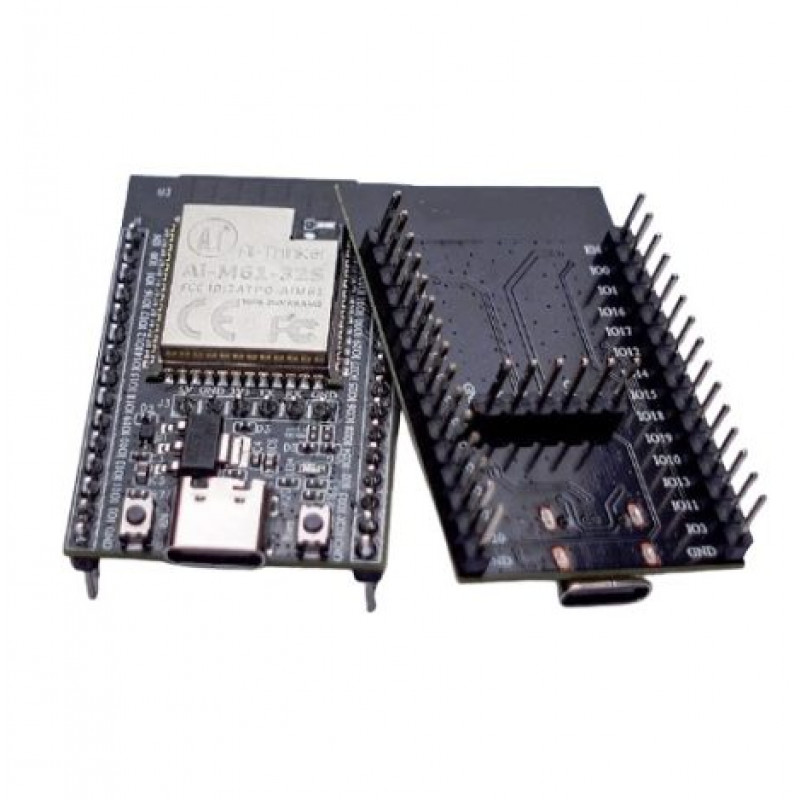

AiPi-Cam-U is a USB camera core board specially designed by the Ai-Thinker open-source team for Ai-M61-32S, supporting WiFi6 and BLE5.3. The Ai-M61-32S module equipped has rich peripheral interfaces, including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc. AiPi-Cam-U integrates a USB-C (Type-C), which can be connected to a USB camera. Currently, the 100w pixel camera has passed the test.
Schematic diagram
AiPi-Cam-U camera core board schematic diagramaipi-cam-u_sch.pdf
Features:
- Mounting options
- Compatibility with microcontrollers
- Onboard image processing capabilities
- Field of view (FOV)
- Frame rate
- Connectivity interface
Specifications:
- Model: AiPi-CAM-U
- Chip: Ai-M61-32S
- Supports: WiFi6 and BLE5.3
- Module: Ai-M61-32S
- Length: 47mm
- Width: 28mm
- Height: 13mm
- Weight: 10g
Package Includes:
1 x Ai Thinker AiPi-CAM-U
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

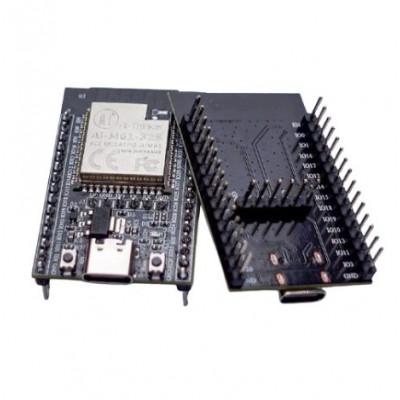

Ai Thinker AiPi-CAM-U
- Product Code: EC-29257
- Availability: Out Of Stock
-
Rs.359.00
- (Excluding 18% GST)
