AiPi-ESL-2.13AiPi-ESL-2.13is an ink screen electronic label designed by Ai-Thinker open-source team using the PHY6222 Bluetooth chip. It adopts an extremely low power consumption design with an average power consumption of 30uA. It supports button batteries for power supply and is powered by a small The program configures the display content and transfers it to the screen.
Schematic diagram
AiPi-ESL-2.13 schematic diagram click to download
Specifications and Features:
- Model: AiPi-ESL 2.13
- Product type: Open-source hardware
- Chip: PHY6222(Bluetooth chip)
- power consumption: 30uA
- PHY6222 Bluetooth chip
- Length: 63mm
- Width: 34mm
- Height: 9mm
Package Includes:
1 x Ai Thinker AiPi-ESL 2.13
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

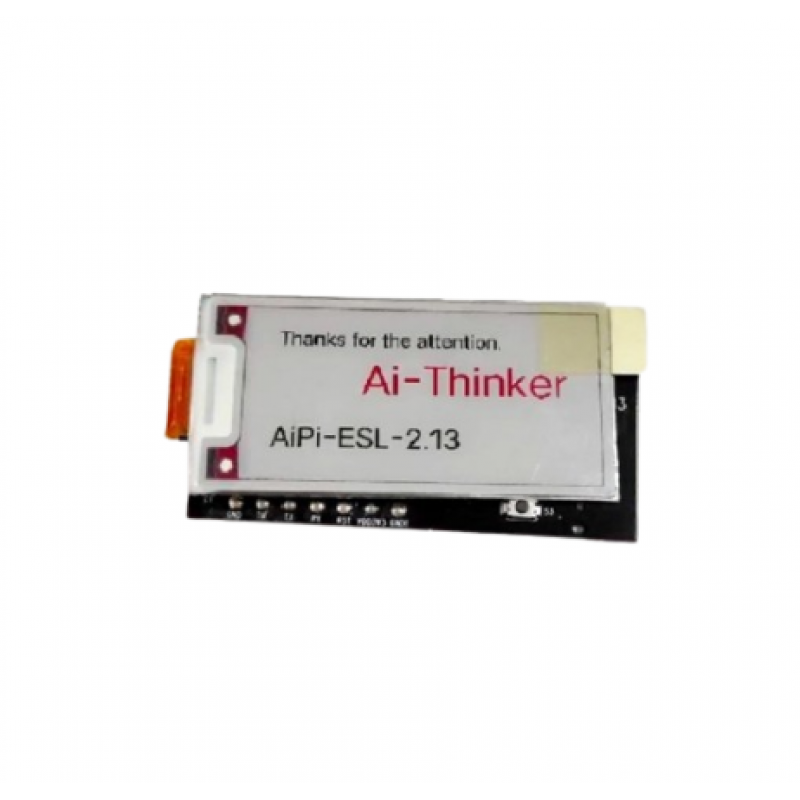

Ai Thinker AiPi-ESL 2.13
- Product Code: EC-29253
- Availability: Out Of Stock
-
Rs.566.00
- (Excluding 18% GST)
