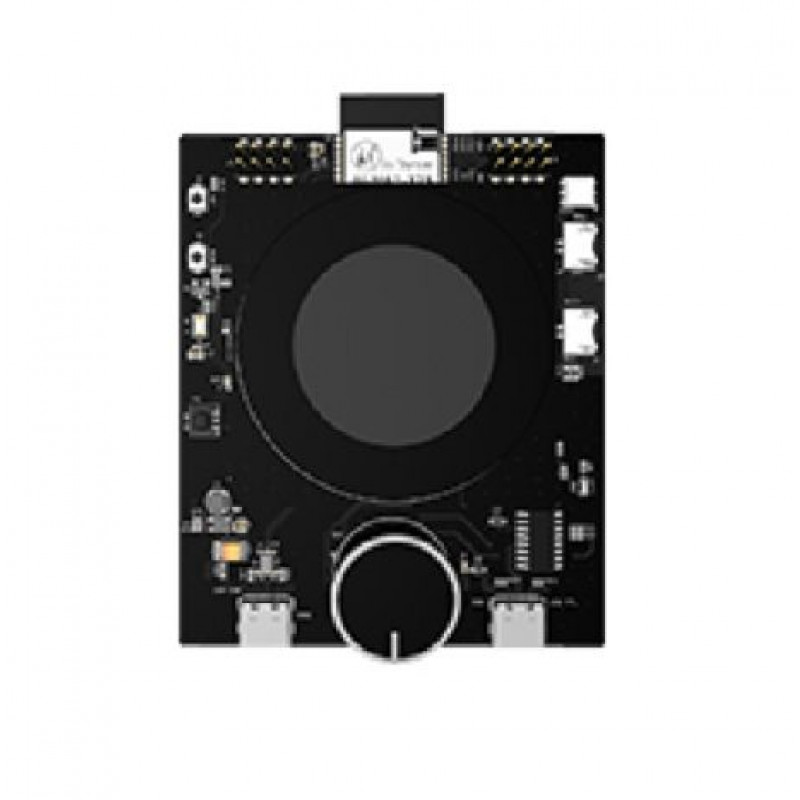

AiPi-Knob is a rotary encoder driver board (referred to as Knob) designed by the Ai-Thinker open source team, which integrates a 1.28 circular screen, pin interface, rotary encoder, RGB light, built-in audio, infrared emission and infrared reception, download pin, IO pin, serial port download USB interface, and USB interface. AiPi-Knob factory has burned the firmware and made four demonstration interfaces: washing machine interface, RGB light interface, TV control interface, and air conditioning control interface.
The Ai-M61-32S module is equipped with a wealth of peripheral interfaces, specifically including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, and GPIO. AiPi-SCP-Knob integrates a screen pin interface, knobs, RGB lights, built-in audio, infrared emission and infrared reception, a download pin, an IO pin, serial download a USB interface, and an outgoing USB interface.
Features:
- built-in audio
- Infrared emission and infrared reception
- serial download a USB interface
- outgoing USB interface.
- AiPi-SCP-Knob integrates a screen pin interface
Specifications:
- Model: AiPiSCP-Knob
- Module: Ai-M61-32S
- Circular screen: 1.28 inch
- Length: 88mm
- Width: 72mm
- Height: 17mm
- Weight: 51g
Package Includes:
1 x Ai Thinker AiPiSCP-Knob(Screen)
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

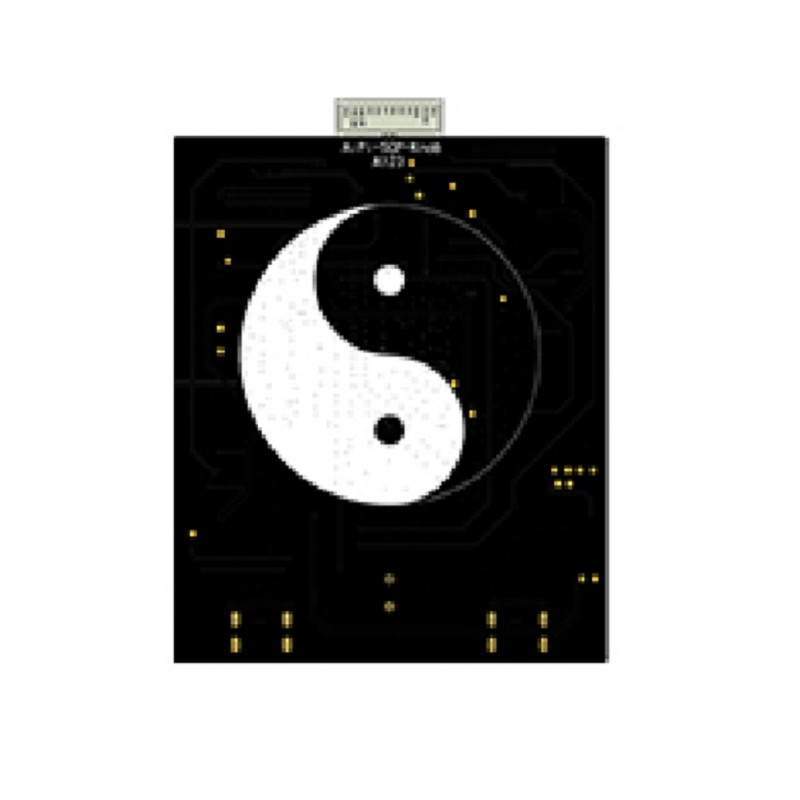

Ai Thinker AiPiSCP-Knob(Screen)
- Product Code: EC-29247
- Availability: Out Of Stock
-
Rs.1439.00
- (Excluding 18% GST)
