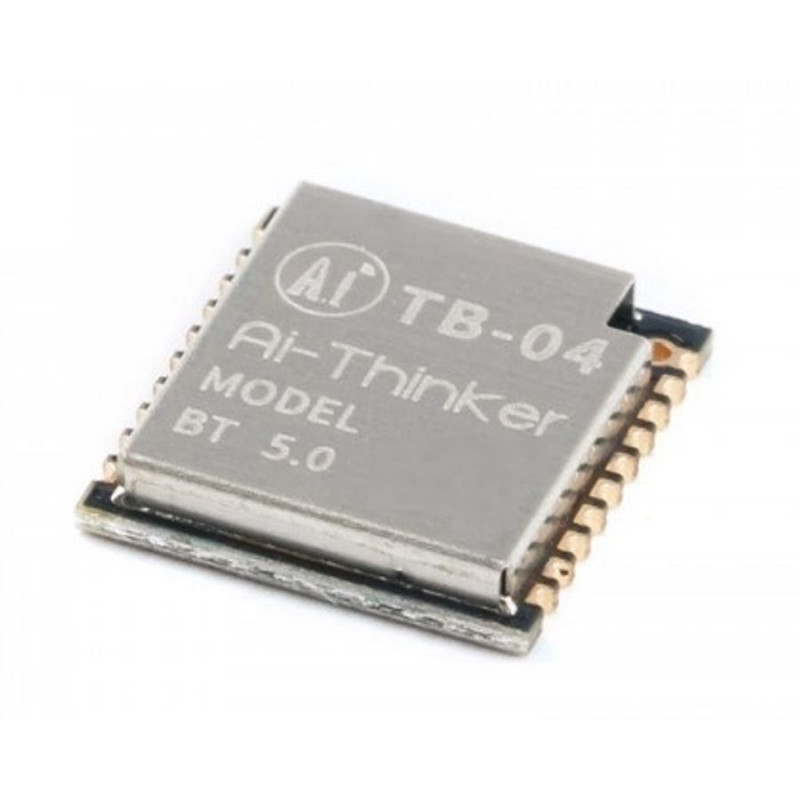

The TB-04 intelligent lighting module is a Bluetooth module based on the TLSR8250F512ES16 chip and compatible with BT 5.0 low-power Tmall Genie Mesh. This module supports the Bluetooth module directly controlled by Tmall Genie and has a Bluetooth mesh networking function. Peer-to-peer network communication, using Bluetooth broadcast for communication, can ensure timely response in the case of multiple devices. It is mainly used in intelligent light control, which can meet the requirements of low power consumption, low latency, and short-range wireless data communication.

Features:-

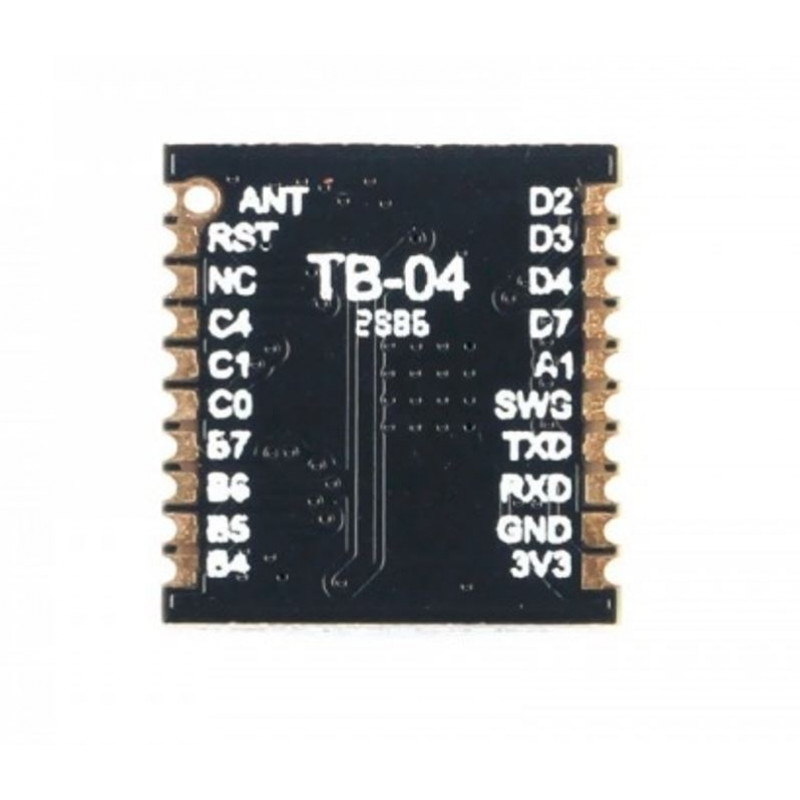

• 1.1mm spacing SMD-20 package
• 6 PWM output
• Antenna patch pad, reserved antenna hole can be directly inserted spring antenna
• Brightness (duty cycle) adjustment range 5-100%
• Factory default warm and cool color duty cycle 50% each
• PMW output frequency 1 KHz
• With small night light function
• With wall switch switching color temperature function

Specifications:-

• Model Name : TB-04
• Size : 12.2x13x2.3(±0.2)mm
• Package : SMD-20
• Wireless Standard :  Bluetooth 5.0
• Frequency Range : 2400~ 2483. 5MHz
• Transmit power : 10dBm(Max)
• Max Sensitivity : -93dBm±2
• Interface : GPI0/PWM/SPI/ADC
• Work Temperature : -20°C~ 70 °C
• Store Temperature : -40 °C~ 125°C, < 90%RH
• Voltage Range : Voltage 2.7V-3.6V current 50mA
• Power consumption : Deep sleep mode: 0.8uA

                                         Sleep mode: 1. 8uA

                                         TX (10dBm): 20.69mA

Package Includes:-

1 x Ai Thinker TB-04 Bluetooth module
