The Amphenol RF Conn., N Terminator, Jack, 50 Ohm is a type of coaxial RF (Radio Frequency) connector designed for terminating or closing off a coaxial RF system with an N-type interface. N-type connectors are a threaded RF connector standard known for their robust design and excellent RF performance. They are commonly used in applications that require reliable RF connections. This connector is a terminator, which means it is designed to be connected to the unused end of a coaxial cable or RF port to prevent signal reflection and interference. Terminators are essential for maintaining the integrity of an RF system by ensuring that signals do not bounce back into the system.The connector has a JACK gender, which means it is designed to receive a male N-type connector. In RF terminology, JACK typically refers to the receptacle or socket side of the connection.
It is designed for use in 50-ohm RF systems. The 50-ohm impedance is a common standard for many RF applications, including telecommunications, wireless networking, and test equipment. Terminators are used in various RF applications, such as antenna systems, RF test equipment, signal analyzers, and any RF system where unused connectors need to be terminated properly to prevent signal reflections and maintain signal integrity. Amphenol RF is known for producing high-quality RF connectors, and this terminator is likely built to their quality standards.
Note:
- Refer to schematic in the ATTACHMENTS section for more info. regd. the product.
- When using RF connectors and terminators, its crucial to choose connectors and terminators that match the impedance of your system (e.g., 50 ohms or 75 ohms) and are compatible with the frequency range of your RF signals. Properly terminating unused RF ports helps reduce signal loss and maintain signal quality in your RF system.
Features:
- Easy to use
- Good quality product
- Robust construction
- Reliable RF performance.
- Min. 500 cycles duarability
Package Includes:
1 x Amphenol RF Conn., N Terminator, Jack, 50 Ohm
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

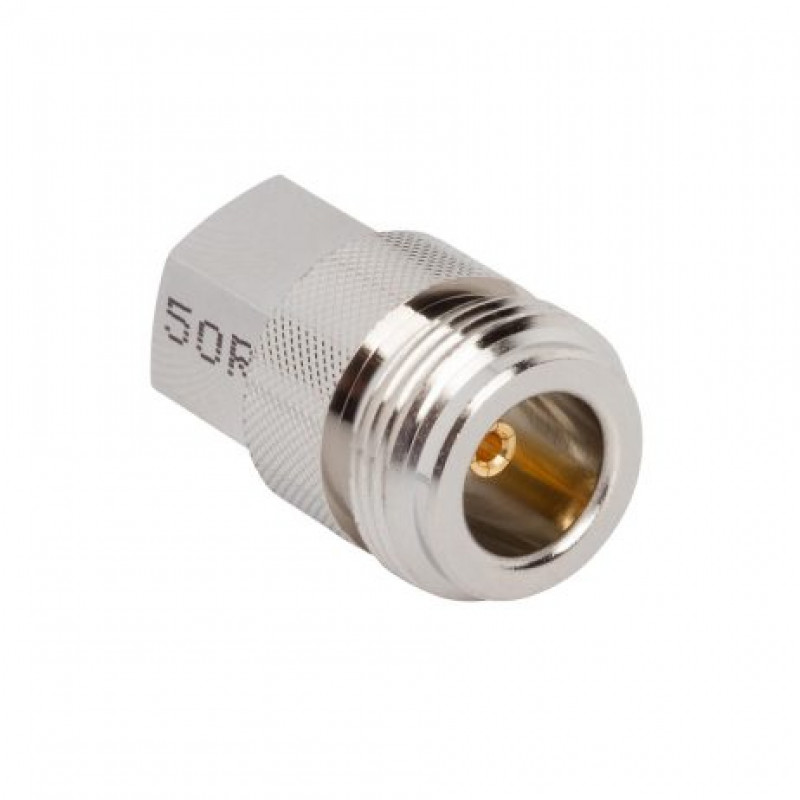

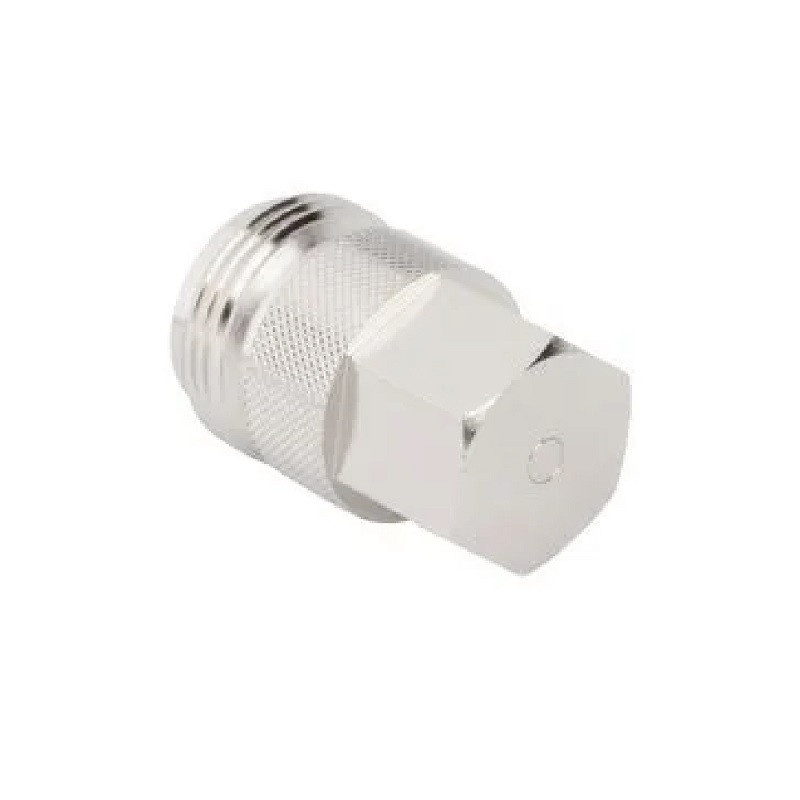

Amphenol RF Conn., N Terminator, Jack, 50 Ohm
- Product Code: EC-19046
- Availability: Out Of Stock
-
Rs.1891.00
- (Excluding 18% GST)
