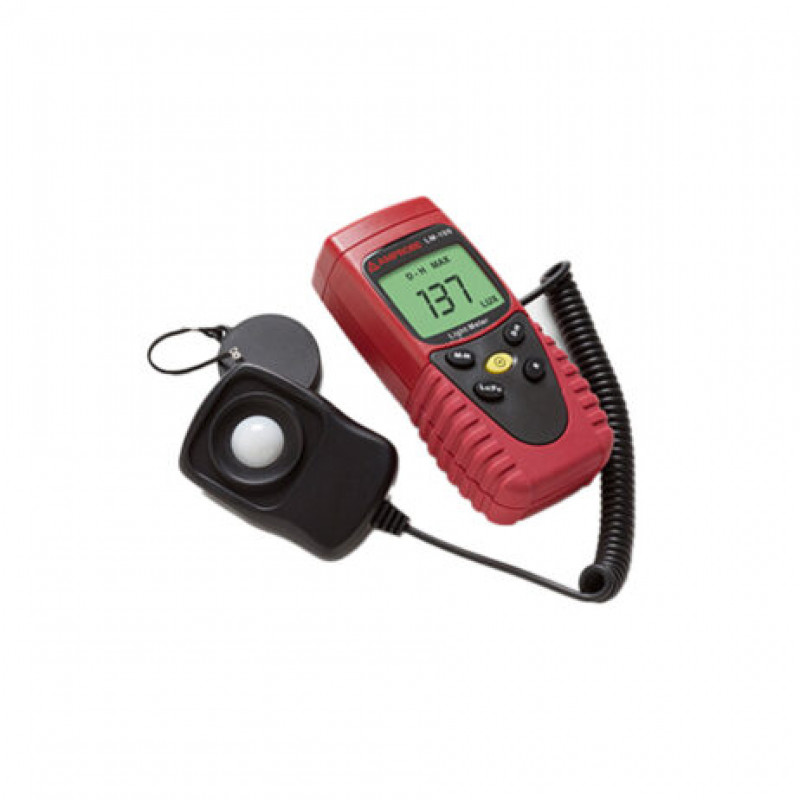

The Amprobe LM-100 light meter measures the visible light from fluorescent, metal halide, high-pressure sodium or incandescent sources. It is a portable, easy-to-use digital light meter designed for simple one-hand operation reading in Lumen (lux) or foot candle (fc) units. The LM-100 measures a wide range of light up to 20,000 fc or lux with an accurate, high resolution of .01 fc/lux.

Use the LM-100 light meter to measure the illumination level in the interior and to switch off or reduce or increase the output level of lighting fixtures. Reduce the energy burden of the building by significantly increasing the efficiency of its lighting system.

One lux is the illumination from a one candela lamp perpendicular to a surface one meter squared at a distance of one meter. One fc is the illumination from a one candela lamp perpendicular to a surface one foot squared at a distance of one foot. 1 foot candle = 10.764 lux and 1 lux = 0.09290 foot candles.

Features:

1. Manual Ranging: Allows for user-controlled selection of measurement ranges.
2. Measurement Range (Lux): Measures light levels in four ranges: 200, 2000, 20000, and 200000 lux.
3. Measurement Range (Foot-candles): Measures light levels in four ranges: 20, 200, 2000, and 20000 foot-candles.
4. Data Hold Function: Freezes the displayed reading for easy recording.
5. Max Hold Function: Displays the maximum reading recorded during measurement.
6. Compact Design: Lightweight and portable for easy use in various settings.

Specifications:

1. Measurement Range (Lux): 200, 2000, 20000, 200000 lux
2. Measurement Range (Foot-candles): 20, 200, 2000, 20000 foot-candles
3. Ranging: Manual
4. Data Hold: Data/Max Hold
5. Zero Function: No
6. Auto Power Off: No
7. Display: Large 3-1/2 digit LCD

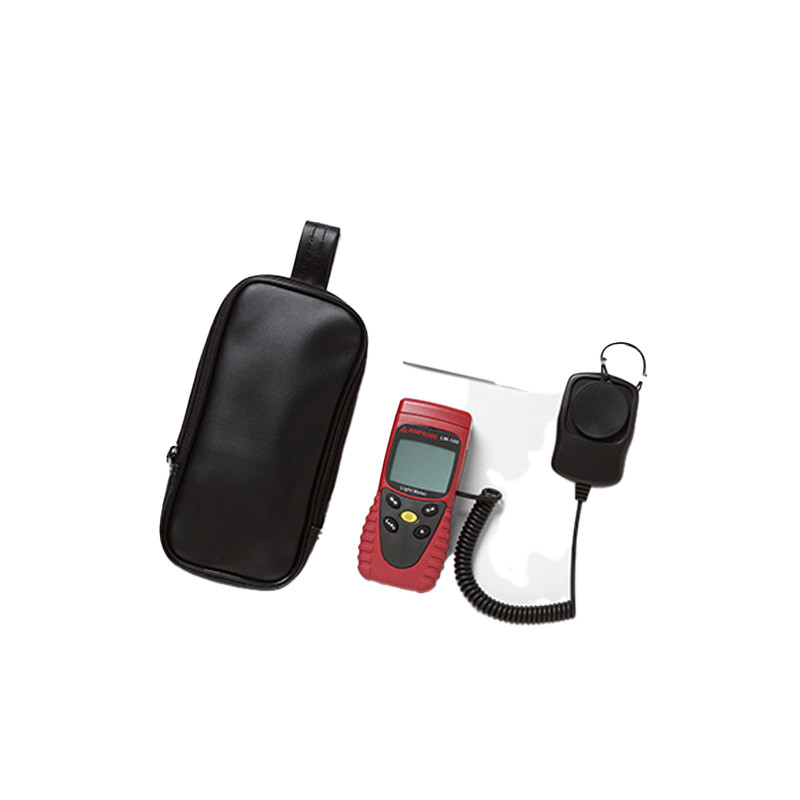

Package includes:

1 x LM-100 Light Meter Manual Ranging

1 x 9 V battery

1 x Carrying case
