Key Specifications:-

  • Output Voltage         24V
  • Type                 LED & Waterproof
  • Approx. Wattage 16W
  • Features                 Standard
  • Series                 APV (Economical)
  • Mechanical Form Plastic
  • Warranty                 2 Years Warranty
  • IP Level                 IP42
  • Input Voltage         100-240V auto-select


  • Universal AC input / Full range
  • Fully isolated plastic case
  • Protections: Short circuit / Overload / Over voltage
  • Constant voltage design (C.V. mode)
  • IP42 design
  • Class 2 power unit / Pass LPS
  • Isolation class II, no F.G.
  • Cooling by free air convection
  • 100% full load burn-in test
  • Low cost, high reliability
  • Suitable for LED lighting and moving sign applications
  • 2 years warranty


AC input voltage range
90~264VAC ; 127~370VDC
AC inrush current
Cold start, 70A at 230VAC
Overload Range
>105% rated output current
Protection Type
Hiccup up mode, auto-recovery
Over voltage protection
110%~145% rated output voltage
Withstand voltage
I/P-O/P: 3kVAC
Working temperature
-30~+70OC (refer to output derating curve)
10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards
UL8750 approved;Design refer to IEC61347-1, IEC61347-2-13
EMC standards
EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input
UL rated, 18AWGx2C (15cm)
Connection Output
UL rated, 20AWGx2C (15cm)
Dimension (LxWxH)(mm)
77x 40x 29

Related Documents:-

 APV-16 Datasheet

 APV-16-24 Test Report

 CE Certificate (APV-16)

 UL Certificate (APV-16)

 CB Certificate (apv-16)

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

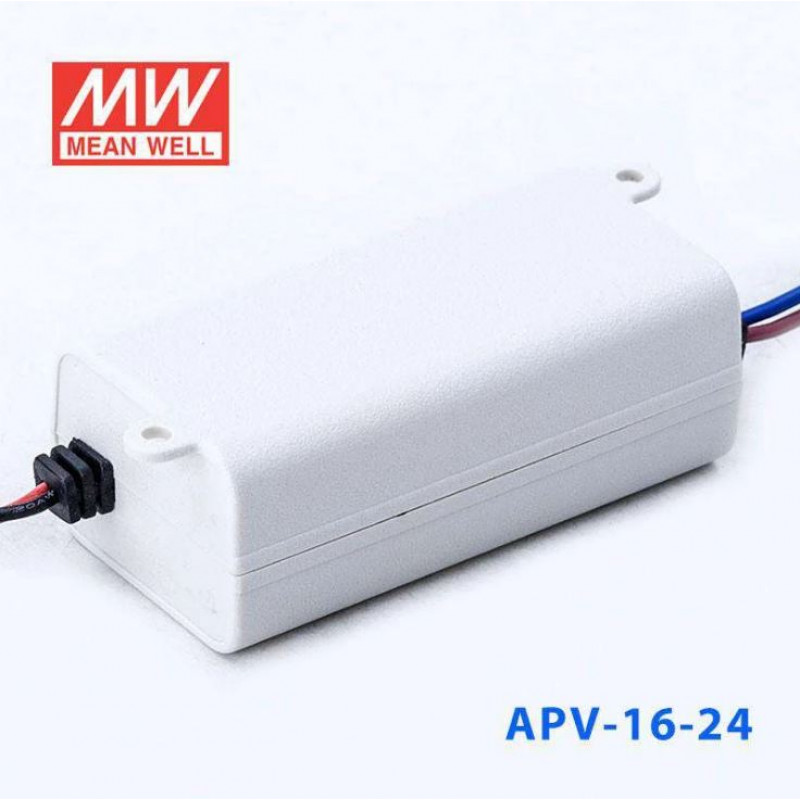

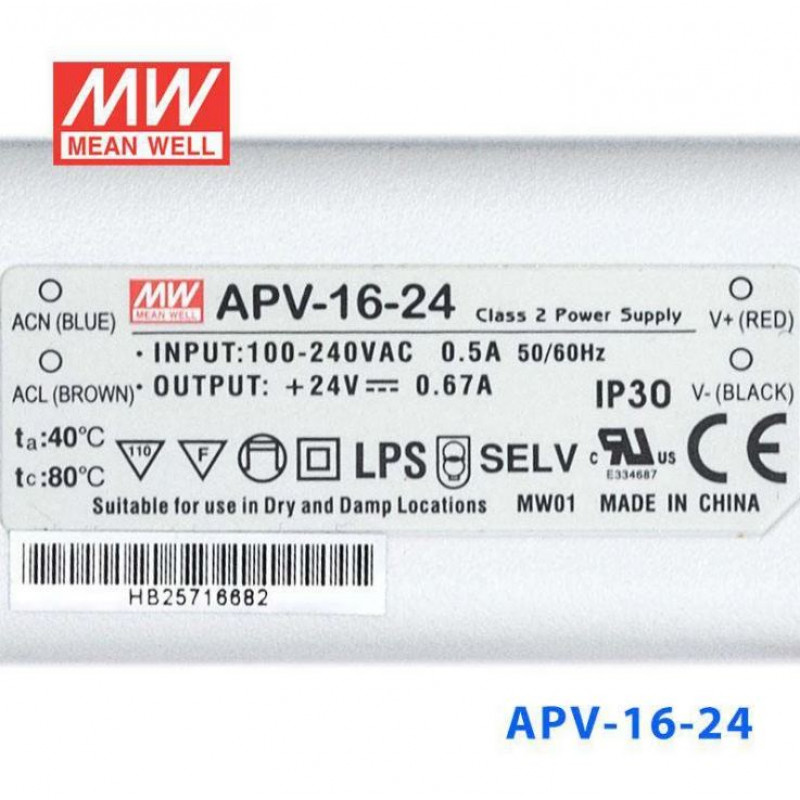

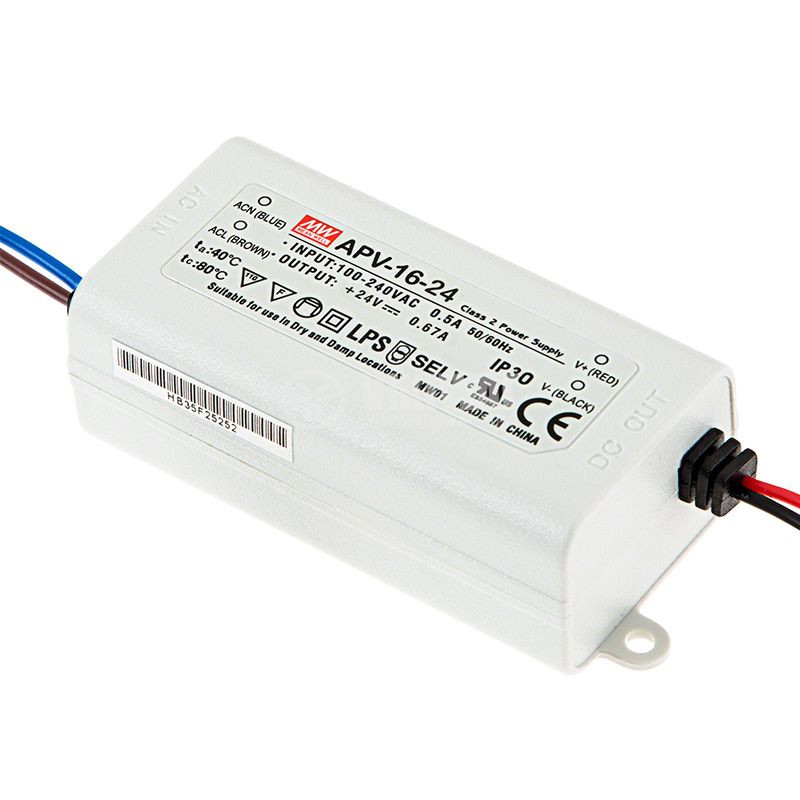

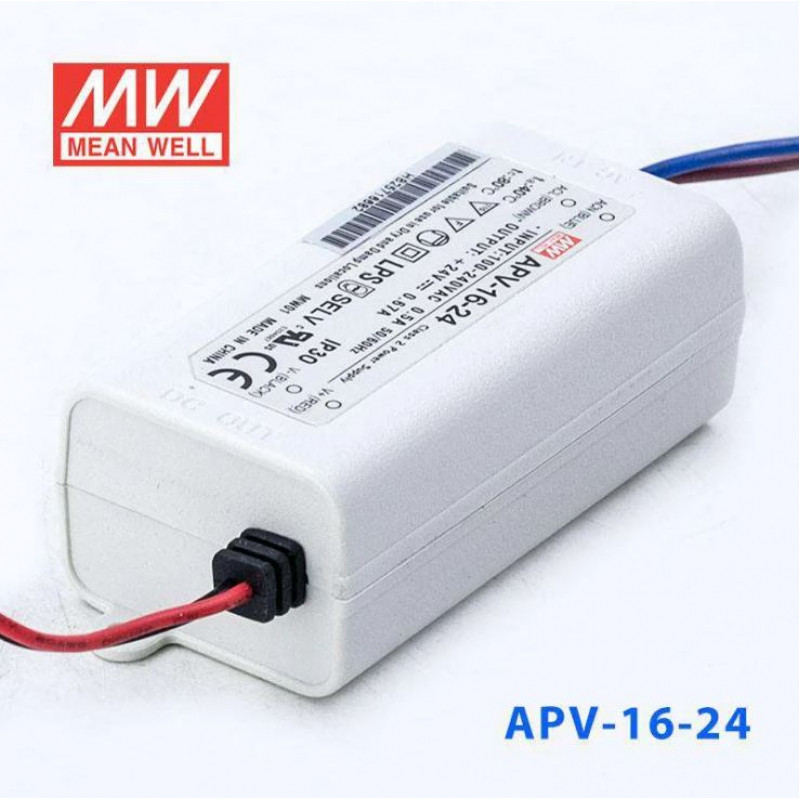

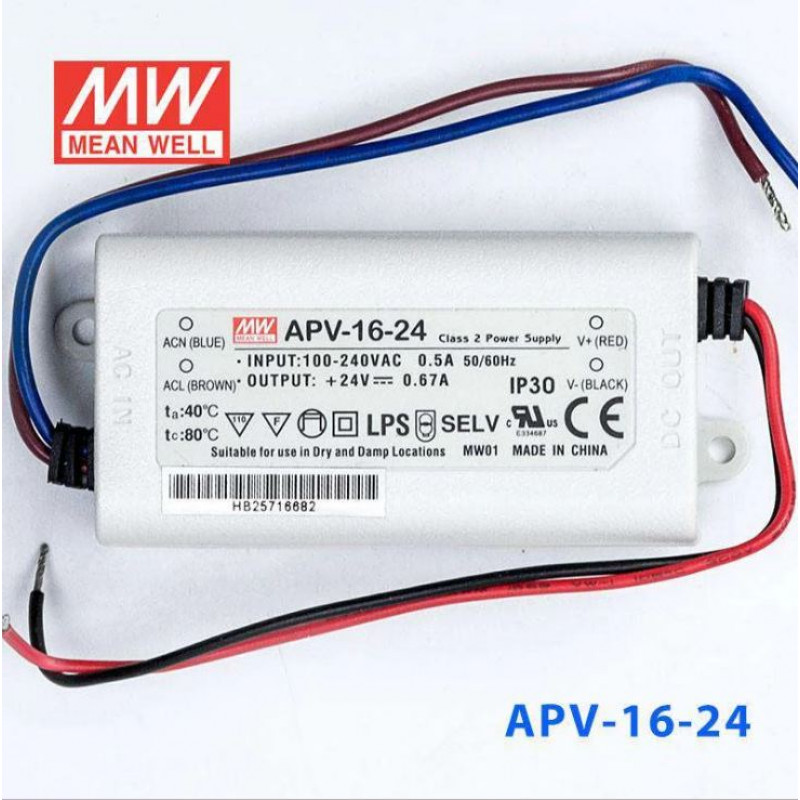

APV-16-24 Mean Well SMPS - 24V 0.67A 16.08W LED Power Supply

  • Product Code: EC-3506
  • Availability: 323
  • Rs.575.00
  • (Excluding 12% GST)
