Key Specifications:-

  • Output Voltage         12V
  • Type                 LED & Waterproof
  • Approx. Wattage 36W
  • Features                 Standard
  • Series                 APV (Economical)
  • Mechanical Form Plastic
  • Warranty            2 Years Warranty
  • IP Level                 IP42
  • Input Voltage         100-240V auto-select


  • Universal AC input / Full range
  • Fully isolated plastic case
  • Protections: Short circuit / Overload / Over voltage
  • Constant voltage design (C.V. mode)
  • IP42 design
  • Withstand 300VAC surge input for 5 seconds
  • Class 2 power unit / Pass LPS
  • Isolation class II, no F.G.
  • Cooling by free air convection
  • 100% full load burn-in test
  • Low cost, high reliability
  • Suitable for LED lighting and moving sign applications
  • 2 years warranty


  • AC input voltage range90~264VAC ; 127~370VDC
    AC inrush currentCold start, 45A at 230VAC
    Overload Range>105% rated output current
    Protection TypeHiccup up mode, auto-recovery
    Over voltage protection110%~145% rated output voltage
    Withstand voltageI/P-O/P: 3kVAC
    Working temperature-30~+70OC (refer to output derating curve)
    Vibration10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
    Safety standardsUL8750 approved (except for APC-25-350&APC-35-350/500);Design refer to TUV EN60950-1
    EMC standardsEN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
    Connection InputUL rated, 18AWGx2C (15cm)
    Connection OutputUL rated, 18AWGx2C (15cm)
    Dimension (LxWxH)(mm)84x 57x 29.5

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

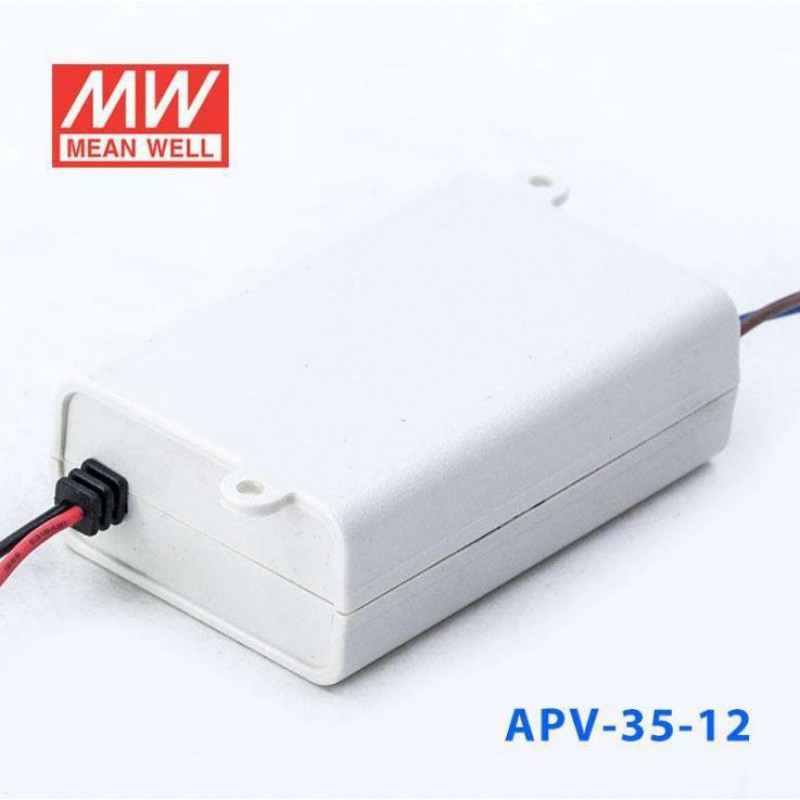

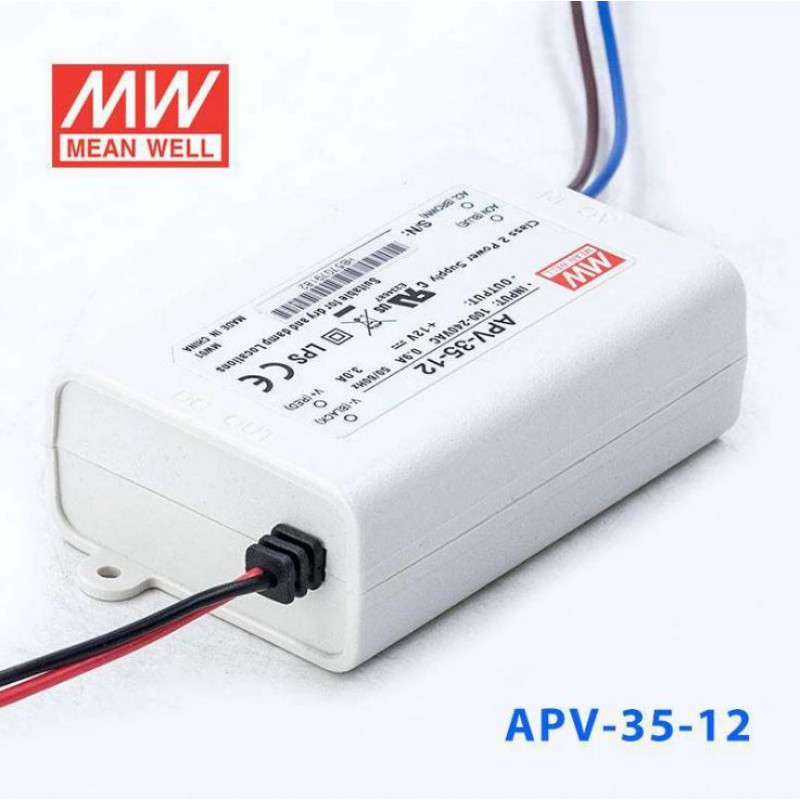

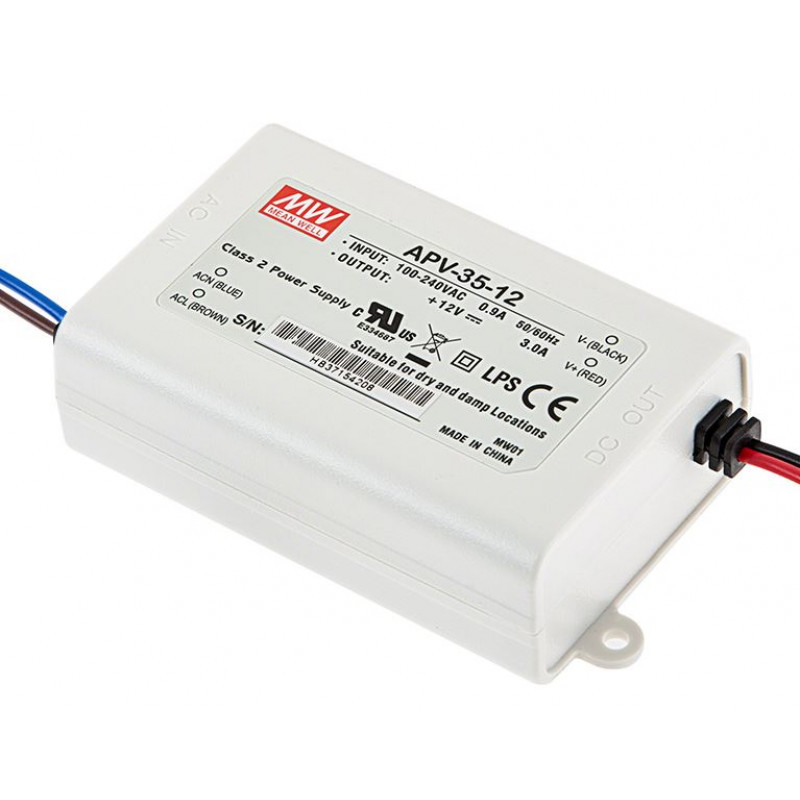

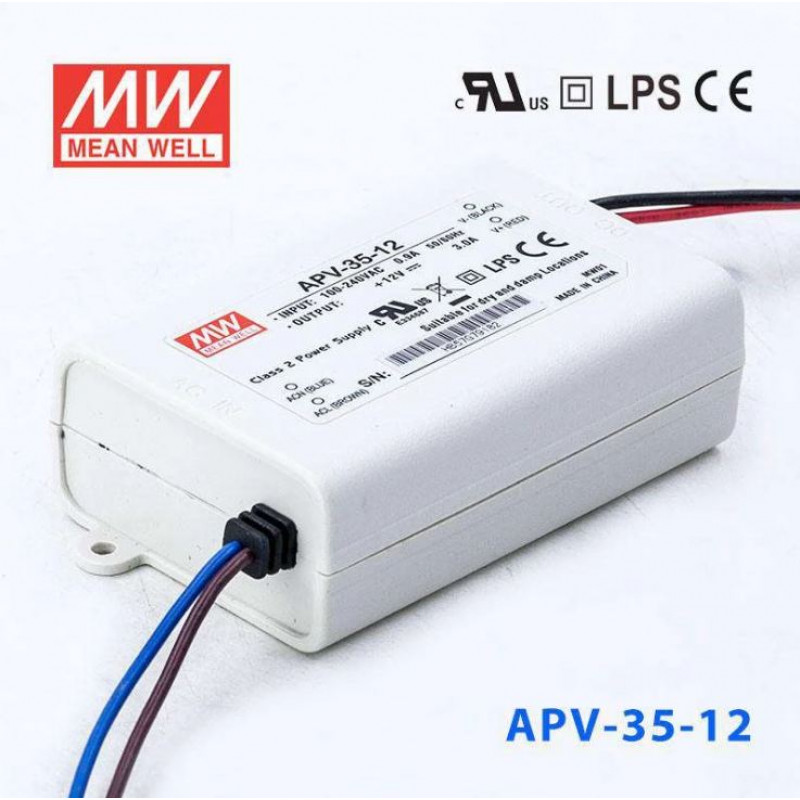

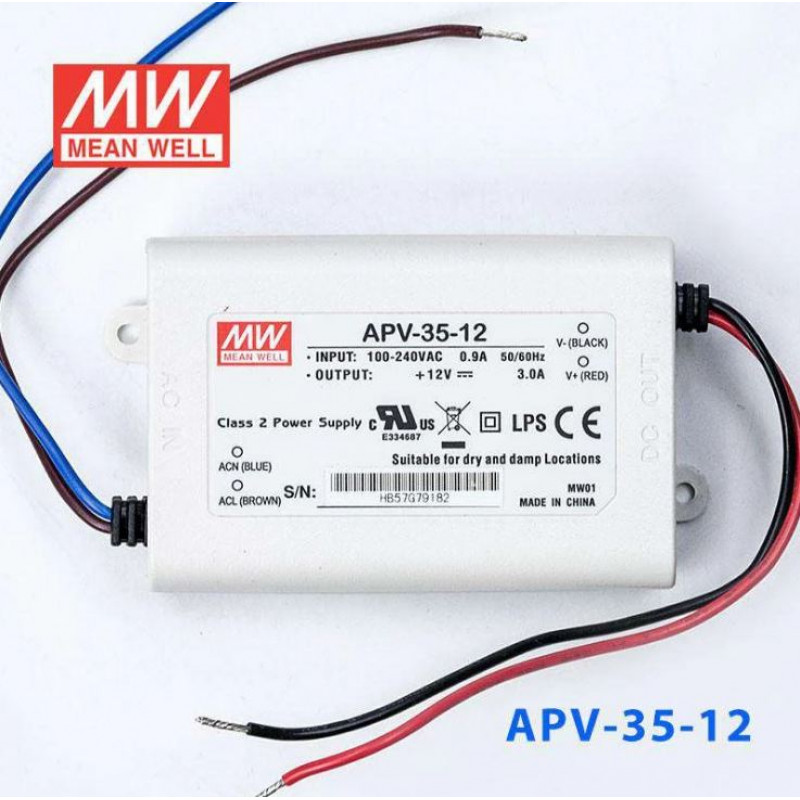

APV-35-12 Mean Well SMPS - 12V 3A 36W LED Power Supply

  • Product Code: EC-3509
  • Availability: 324
  • Rs.985.00
  • (Excluding 12% GST)
