Key Specifications:-

  • Output Voltage         24V
  • Type                 LED & Waterproof
  • Approx. Wattage 8W
  • Features                 Standard
  • Series                 APV (Economical)
  • Mechanical Form Plastic
  • Warranty                 2 Years Warranty
  • IP Level                 IP42
  • Input Voltage         100-240V auto-select


Features:-

  • Universal AC input / Full range
  • Fully isolated plastic case
  • Protections: Short circuit / Overload / Over voltage
  • Constant voltage design
  • IP42 design
  • Class 2 power unit
  • Isolation class II, no F.G.
  • Cooling by free air convection
  • 100% full load burn-in test
  • Low cost, high reliability
  • Suitable for LED lighting and moving sign applications
  • 2 years warranty


Specifications:-

AC input voltage range90~264VAC ; 127~370VDC
AC inrush currentCold start, 70A at 230VAC
Overload Range>105% rated output current
Protection TypeHiccup up mode, auto-recovery
Over voltage protection110%~145% rated output voltage
Withstand voltageI/P-O/P: 3kVAC
Working temperature-30~+70OC (refer to output derating curve)
Vibration10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standardsUL8750 approved;Design refer to EN60950-1,EN61347-1, EN61347-2-13
EMC standardsEN55022, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN55024
Connection InputUL rated, 18AWGx2C (15cm)
Connection OutputUL rated, 20AWGx2C (15cm)
Dimension (LxWxH)(mm)60x 30x 23.5


Related Documents:-

 APV-8 Datasheet
 APV-8-24 Test Report
 CE Certificate (APV-8)
 UL Certificate (APV-8)
 EMC Certificate(APV-8)

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 554.4 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

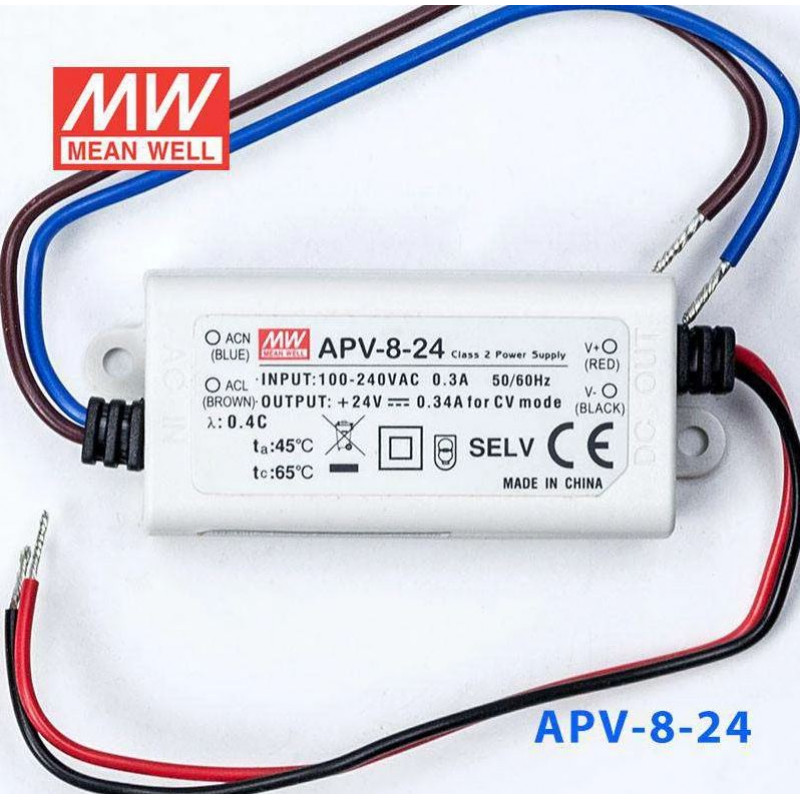

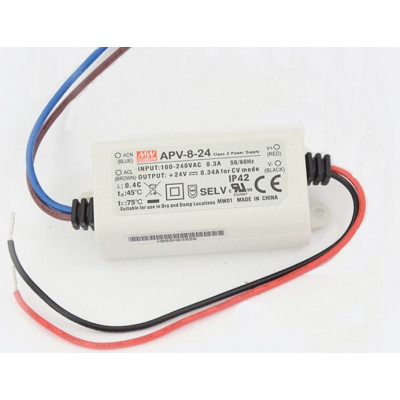

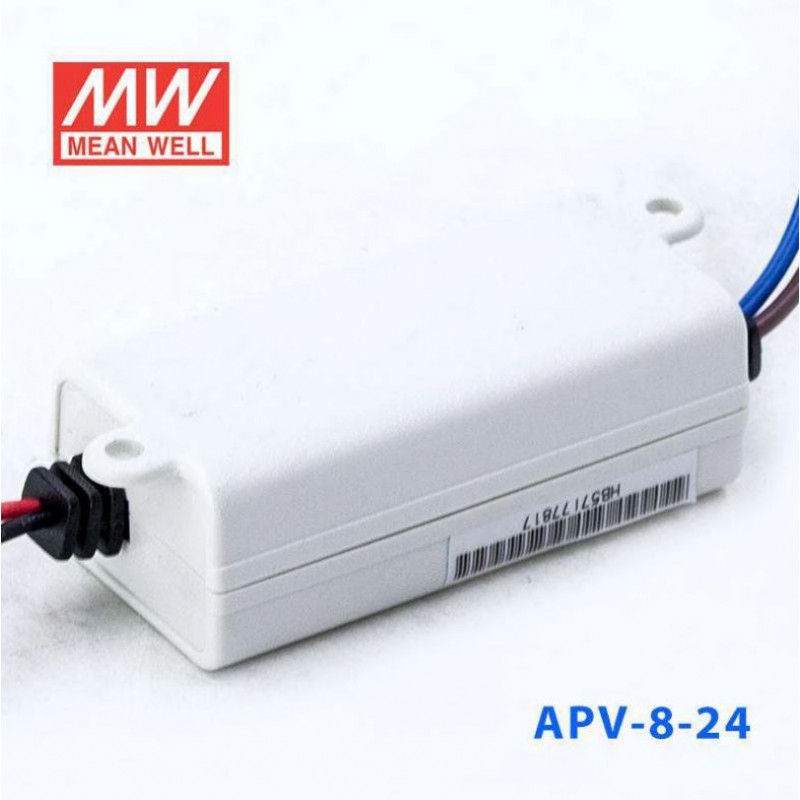

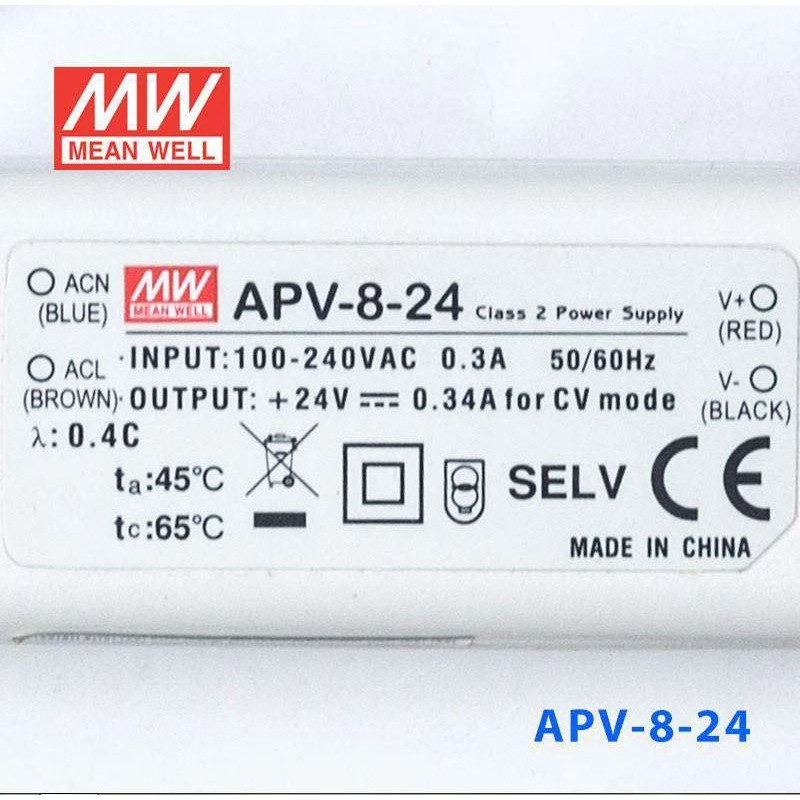

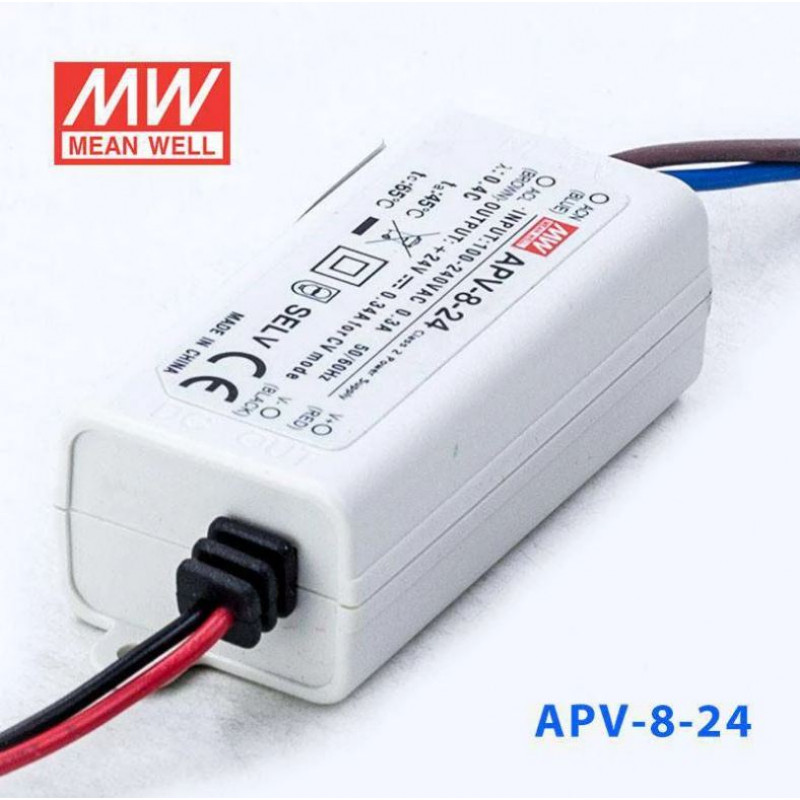

APV-8-24 Mean Well SMPS - 24V 0.34A 8.16W LED Power Supply

  • Product Code: EC-3502
  • Availability: Out Of Stock
  • Rs.495.00
  • (Excluding 12% GST)
