The Modulino Nodes are a versatile and user-friendly platform designed for creating innovative projects without the complexities of traditional circuit building. With a focus on learning programming concepts, these nodes allow users to combine various modules effortlessly, enabling the development of countless applicationsfrom simple experiments to complex systems.

Each Modulino Node communicates via I2C over the QWIIC connector, making connections straightforward and efficient. The platform operates at a low voltage of 3.3V, ensuring compatibility with a wide range of devices.

Features:

1. Modular Design: Combine various Modulino nodes to create a wide range of projects, from simple experiments to complex systems.
2. I2C Communication: Easy plug-and-play connectivity through the QWIIC connector, streamlining the setup process.
3. Low Voltage Operation: Designed to operate at 3.3V, making it compatible with various devices and safe for beginners.

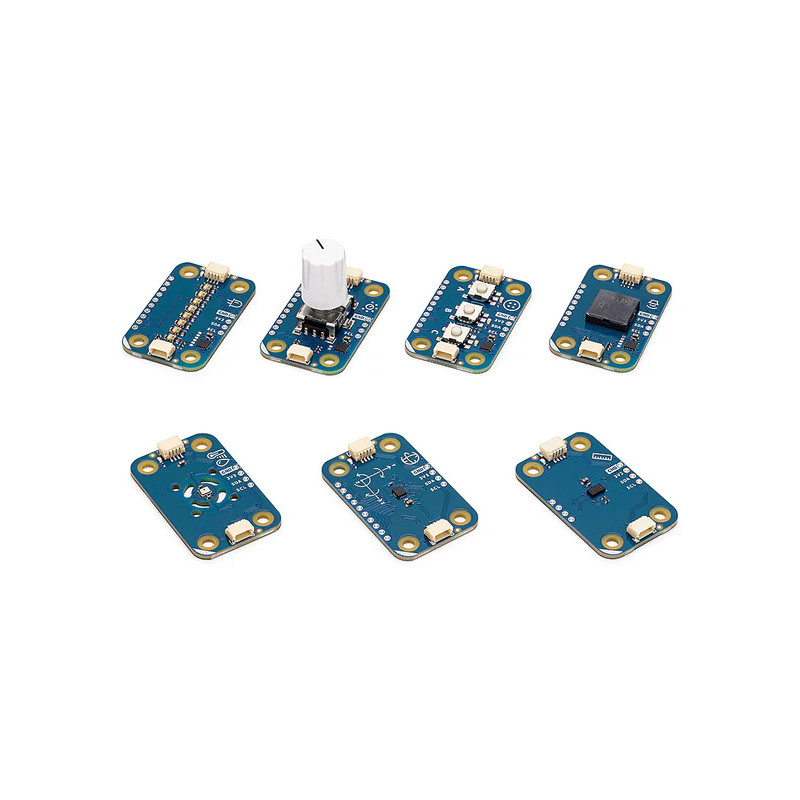

4. Versatile Sensor Modules: Includes movement, distance, temperature, rotary knob, buzzer, RGB pixels, and buttons for diverse applications.
5. Customizable Addresses: Many nodes feature software-configurable I2C addresses for flexible integration.

Specifications:

1. Communications: I2C (over QWIIC connector)
2. Operational Voltage: 3.3V
3. Modulino Thermo: Sensor: HS3003, I2C Address: 68
4. Modulino Pixels: LEDs: 8 LC8822-2020, I2C Address: 0x6C (configurable via software)
5. Modulino Movement: Sensor: LSM6DSOXTR, I2C Address: 0x6A (0x6B)

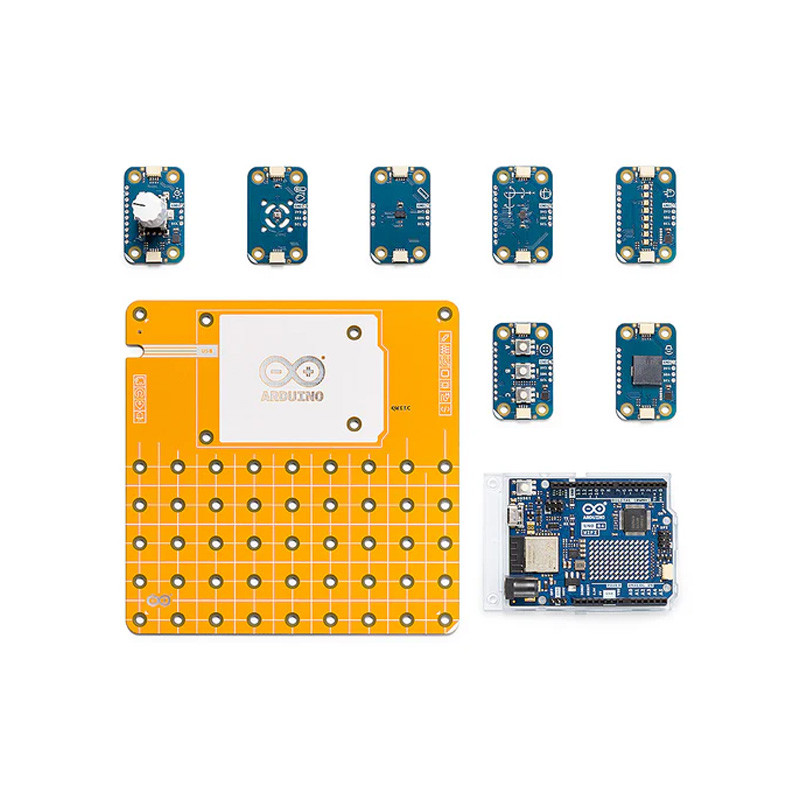

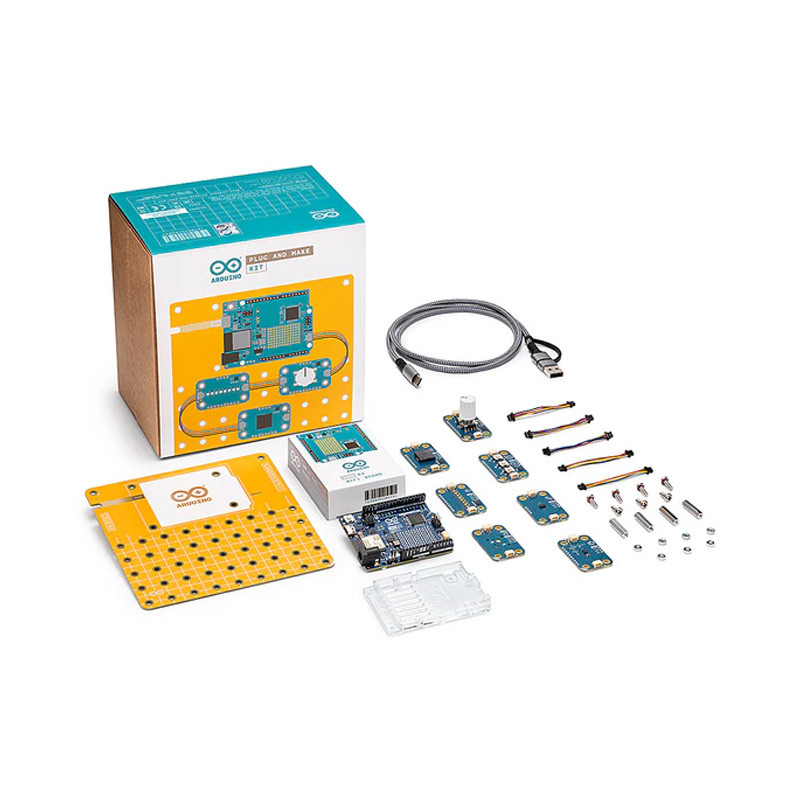

Package includes:

1. 1x Modulino Movement
2. 1x Modulino Distance
3. 1x Modulino Thermo
4. 1x Modulino Knob
5. 1x Modulino Buzzer
6. 1x Modulino Pixels
7. 1x USB-C Cable
8. 7x Qwiic Cables
9. 1x Modulino Base
10. 24x Screws (M3, 10 mm)
11. 20x Nuts (M3)
12. 4x Metal Spacers
